Beskrivelse

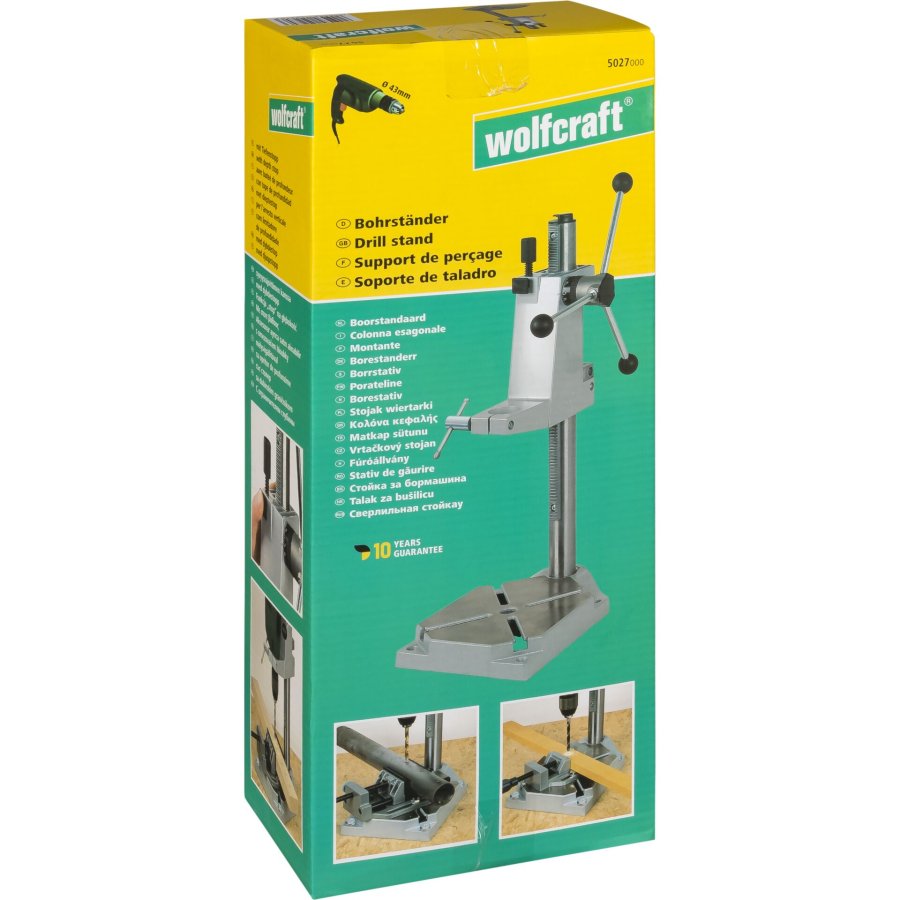

Wolfcraft drill stand
The Wolfcraft drill stand enables precise and controlled drilling thanks to its Euronorm holder (Ø 43 mm), which is compatible with commercially available drills. The 40 mm round column with a 420 mm long toothed bar ensures straight drill holes without twisting, while the depth stop with quick adjustment allows the drilling depth to be set with millimetre precision. In addition, the rack and pinion drive offers infinitely variable height adjustment and the stable grey cast iron plate ensures a secure stand.
Features:
- Euronorm holder Ø 43 mm - compatible with commercially available drills
- 40-mm- round column with 420 mm long toothed bar - ensures straight drilling without twisting
- Depth stop with quick adjustment and scale ring - enables drilling depth to be set with millimetre precision
- Rack and pinion drive - for stepless and precise height adjustment of the operating unit
- Cable holder - ensures tidy routing of the power cable of the drill Cable holder - ensures orderly routing of the power cable of the drilling machine
- Sturdy grey cast iron plate - provides a secure stand thanks to the solid base weight
- Feed lever with 3 arms - makes it easier to lower the machine
- Return spring - supports easy return of the machine
- Clamping grooves in the work surface - enable the attachment of vices

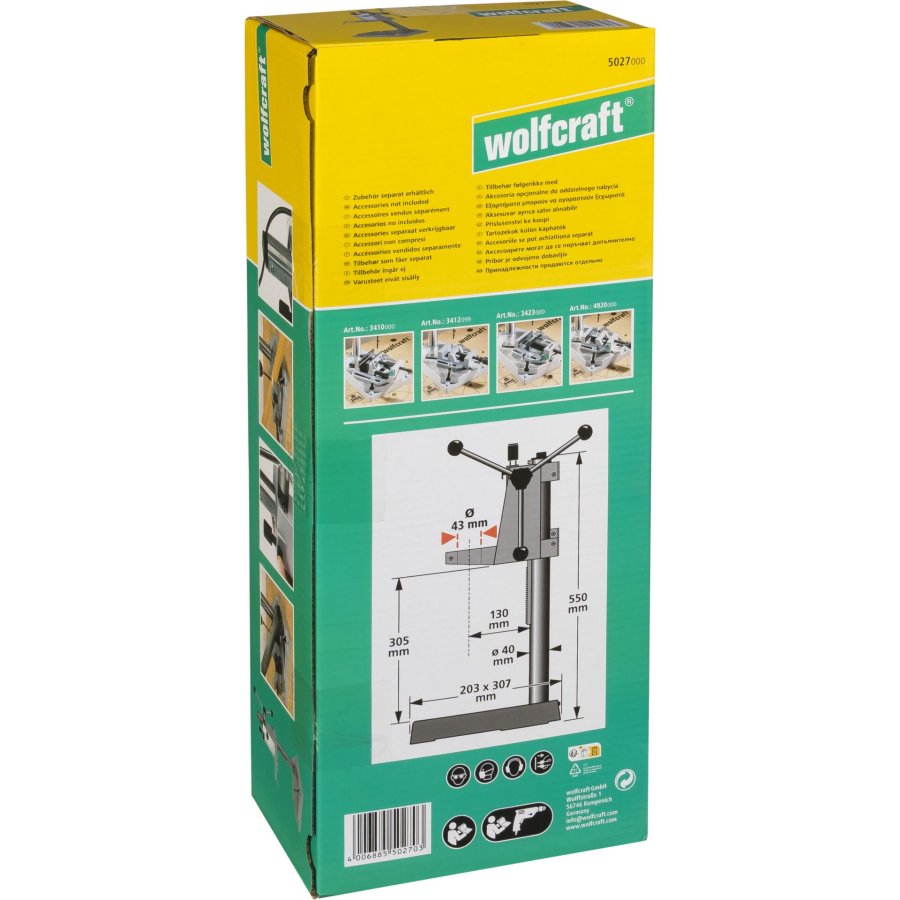

- Working height: 305 mm
- Projection: 130 mm
- Material: die-cast aluminium
- Dimensions (W x D x H): 203 x 307 x 570 mm
