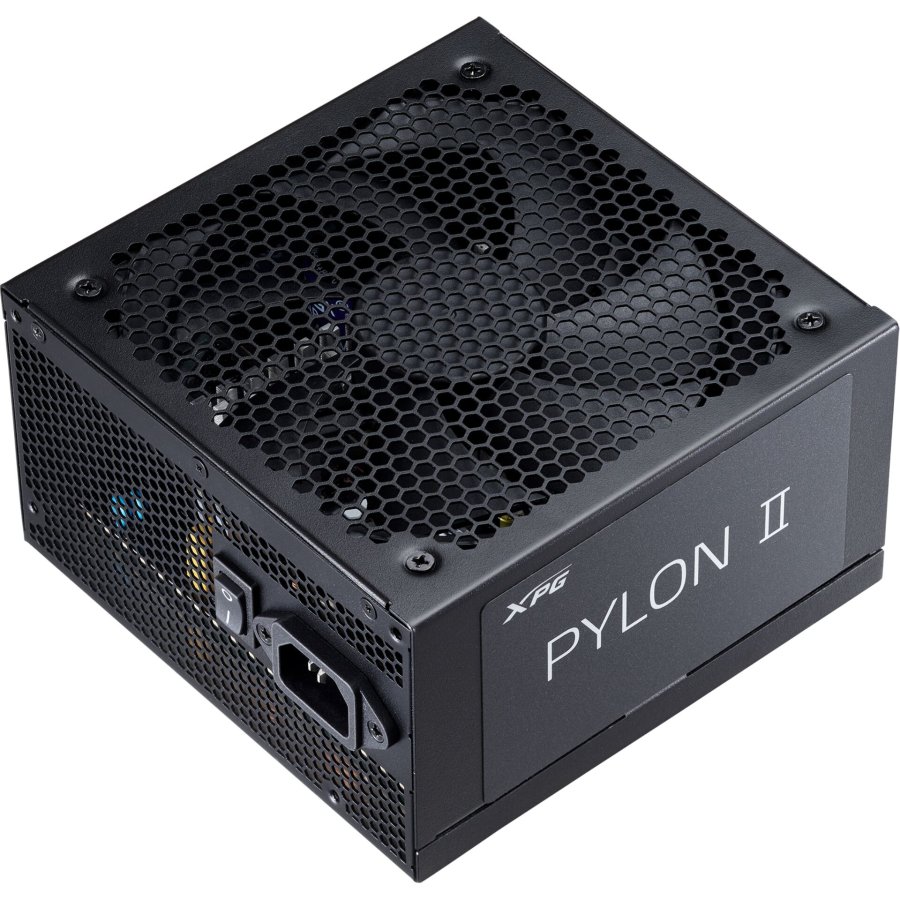

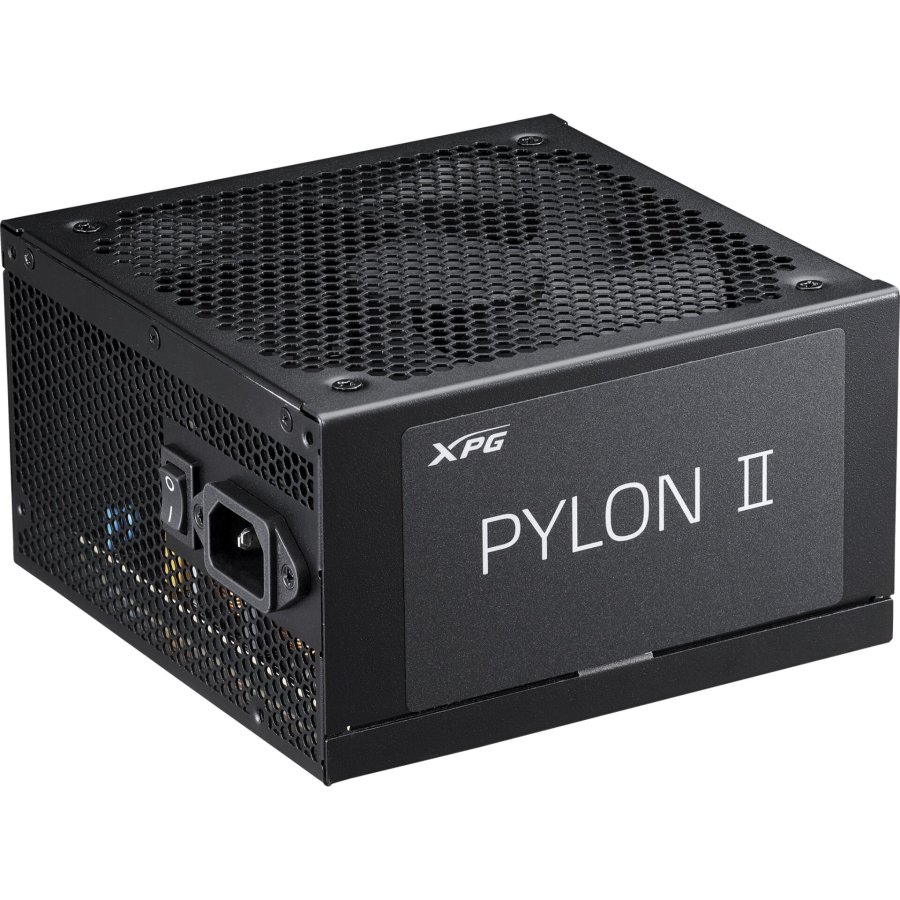

ADATA XPG Pylon II PSU 550W 80 PLUS Bronze ATX-PC Power Supply Black
This power supply is aimed at modern desktop systems that require a stable power supply and up-to-date connection standards. With a rated power of 550 W, it is suitable for powerful processors and mid-range‑ to upscale graphics cards and supports short-term load peaks well above continuous power. The compact ATX format fits into common enclosures and makes it easy to use when rebuilding or upgrading.
Designed for modern hardware
The Intel ATX v3.1 design ensures a clean power supply even when the load fluctuates greatly. The integrated 12V‑2x6‑ port is designed for modern graphics cards and delivers up to 450 W via a single connector. This keeps the system stable even under high load.
Quiet operation and lasting stability
A 135‑mm‑ fan with a liquid-dynamic bearing supports efficient cooling at low noise levels. Several protection circuits continuously monitor operation and protect connected components from electrical risks.
Features:
- 550 W continuous power, suitable for gaming‑ and powerful all-round‑PCs
- 80‑PLUS‑Bronze‑Efficiency
- ATX 3.1, suitable for current platforms
- Connections:
- 1x ATX 24‑pin
- 2x EPS 8‑pin
- 1x 12V‑2x6 connection with up to 300 W for modern graphics cards
- 2x PCIe 6+2
- 6x SATA
- 2x Molex 4‑pin
- Very high load tolerance with up to 1292 W peak power for short load peaks (100 μs)

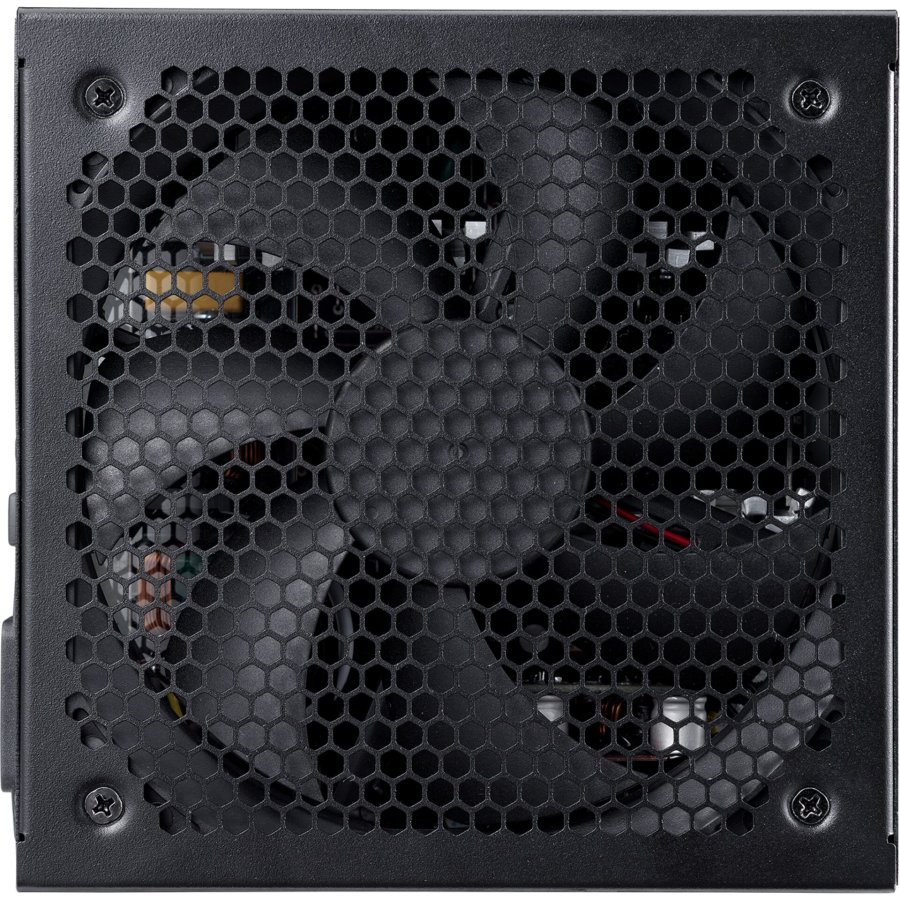

- 135‑mm‑FDB‑fan for quiet operation and long service life
- Extensive protection circuits against electrical malfunctions
- Operating temperature up to 50 °C, suitable for permanently high load
- Compact ATX format for wide case compatibility
- Dimensions: 150 x 150 x 86 mm
- Weight: approx. 1.8 kg
