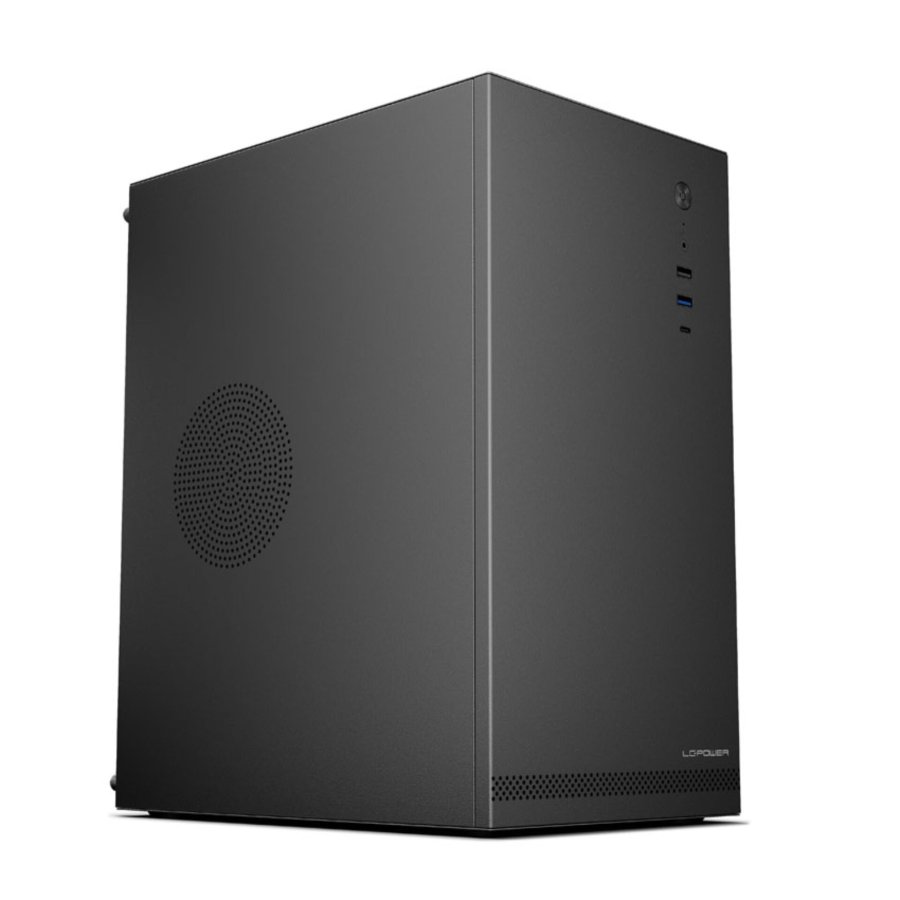

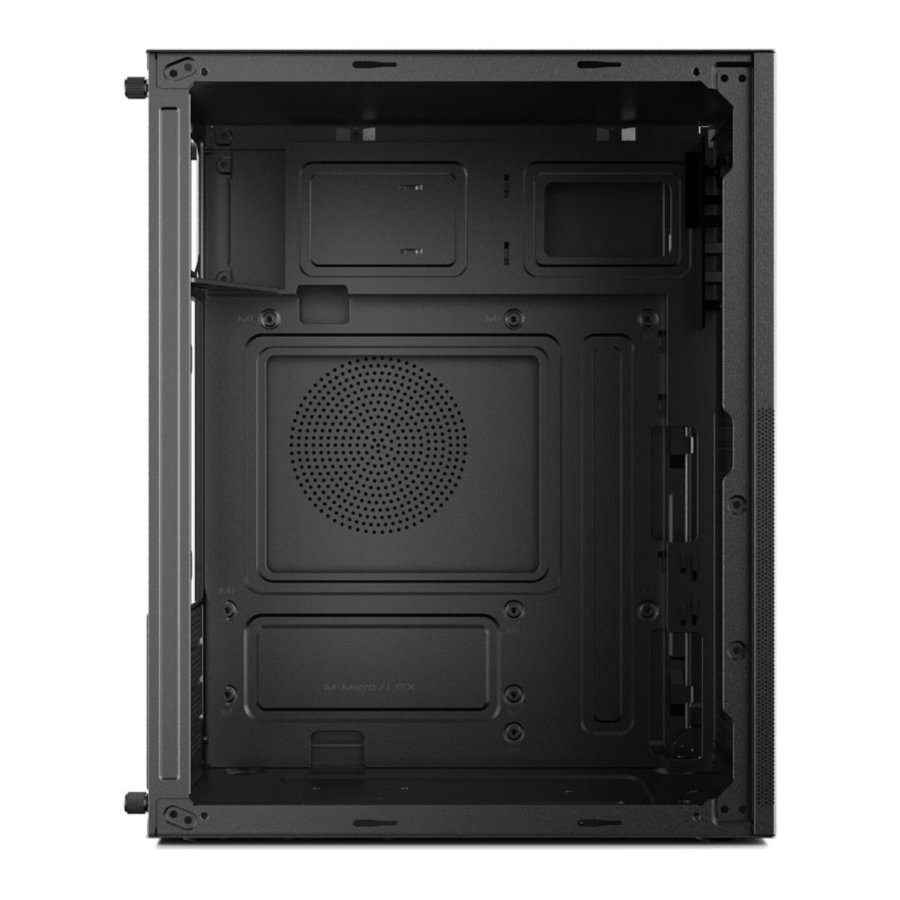

LC-Power 6100MB - M-ATX / Mini-ITX Office PC Case, Black

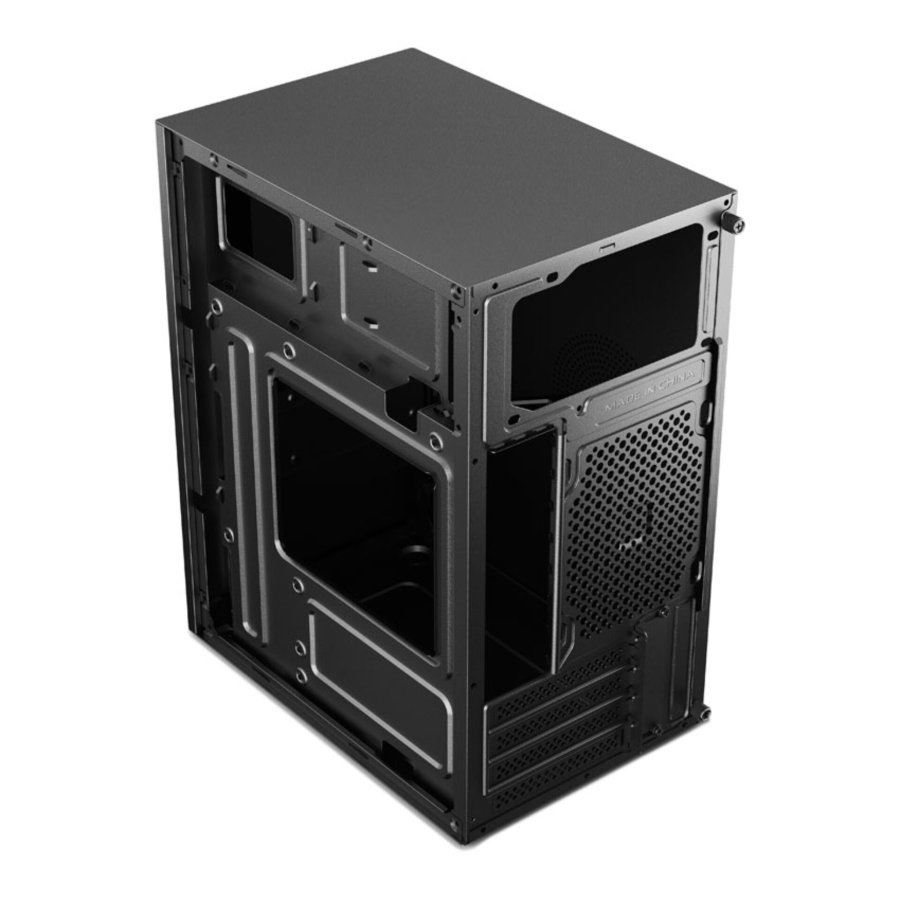

This compact M-ATX case is ideal for space-saving office systems and supports motherboards in Micro-ATX and Mini-ITX formats. Despite its compact design, it offers sufficient space for high-performance components such as graphics cards up to 260 mm in length without the HDD frame, as well as CPU coolers with a height of up to 160 mm. An ATX power supply with a length of up to 150 mm can be easily mounted in the upper section.
Modern Front Panel Connectivity

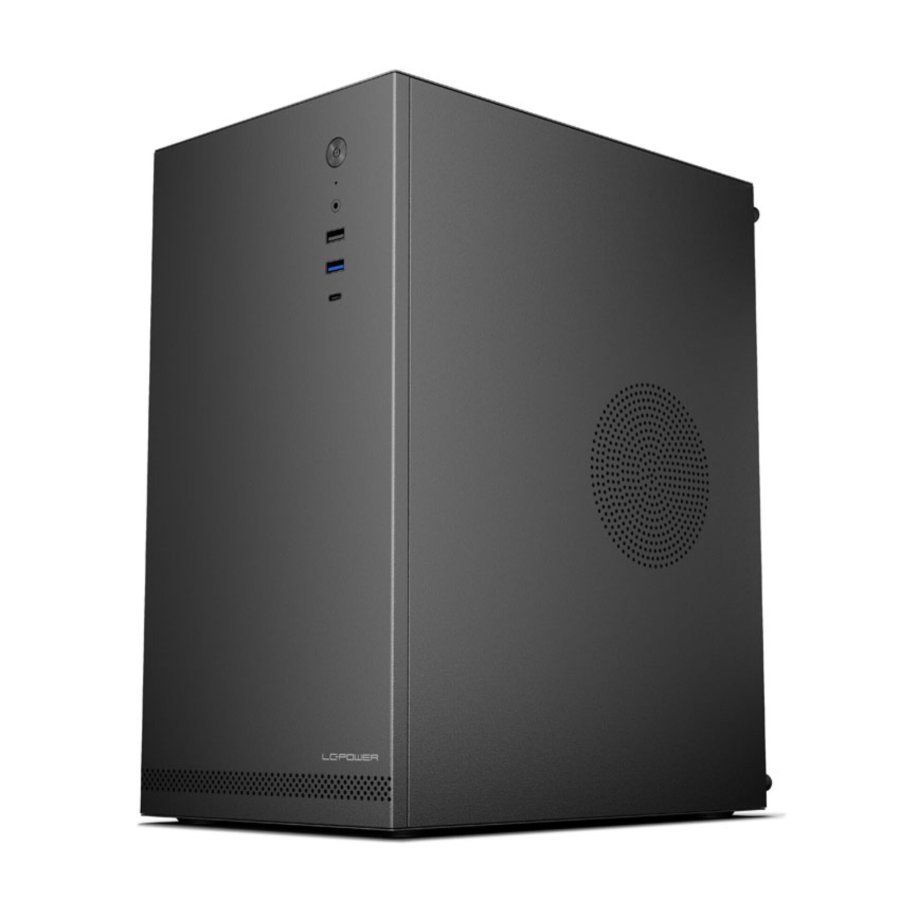

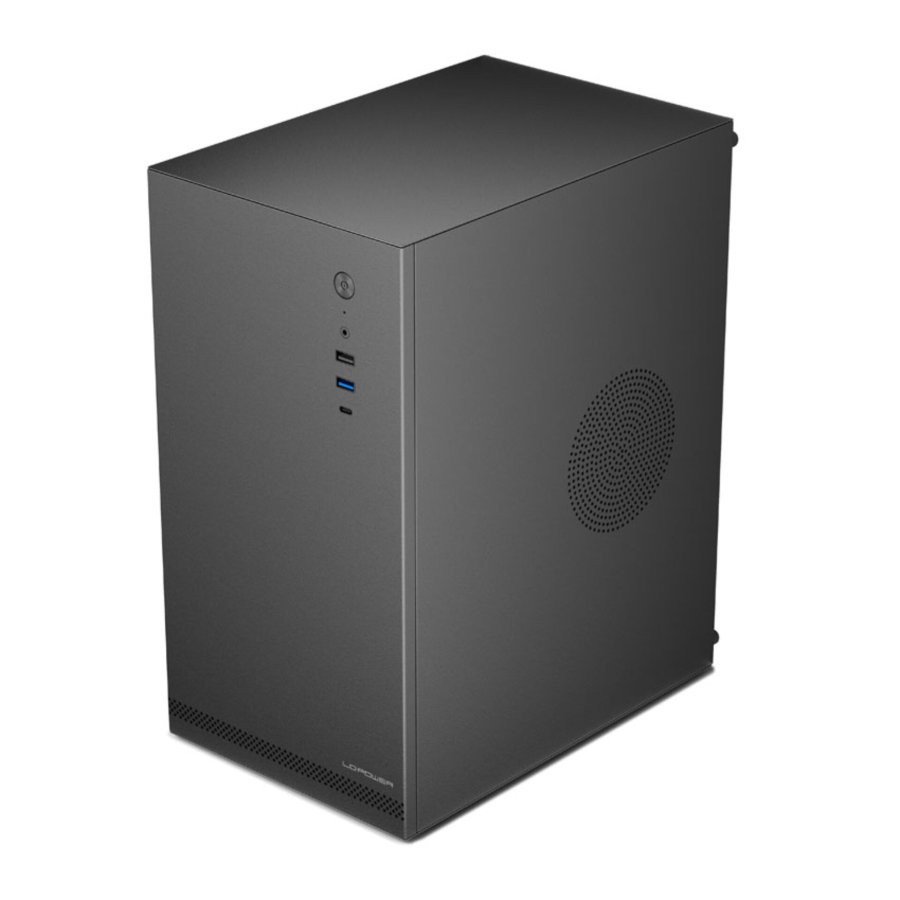

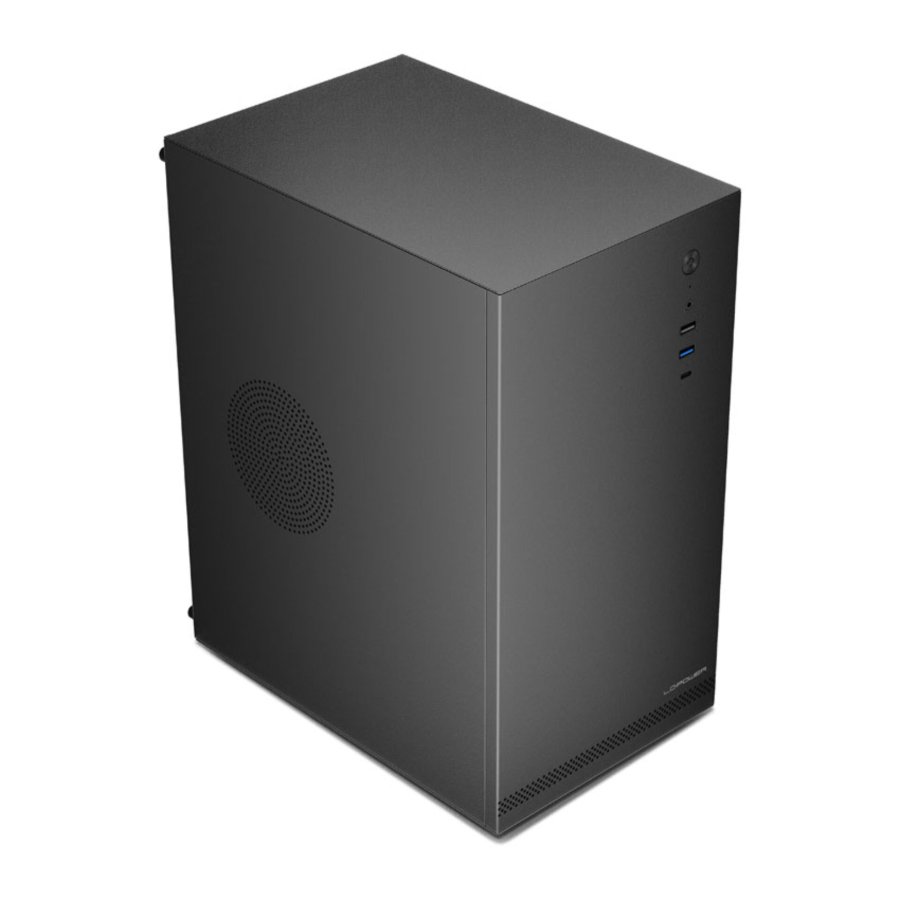

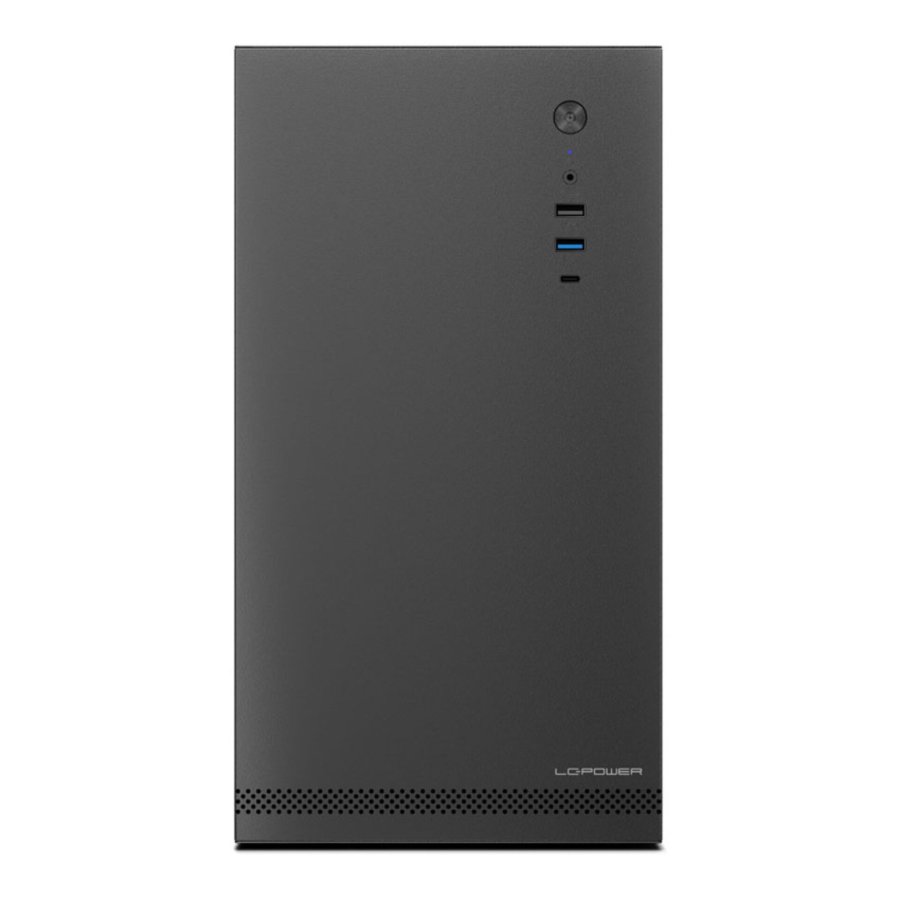

The front panel features a USB-C port based on the USB 3.2 Gen 1 standard with speeds up to 5 Gb/s, along with one USB-A port with USB 3.2 Gen 1 and an additional USB 2.0 port. This allows modern devices and storage media to be connected quickly and conveniently. The features are completed by a 3.5 mm HD audio output and an easily accessible power button.
Space-Saving with Flexible Expansion Options

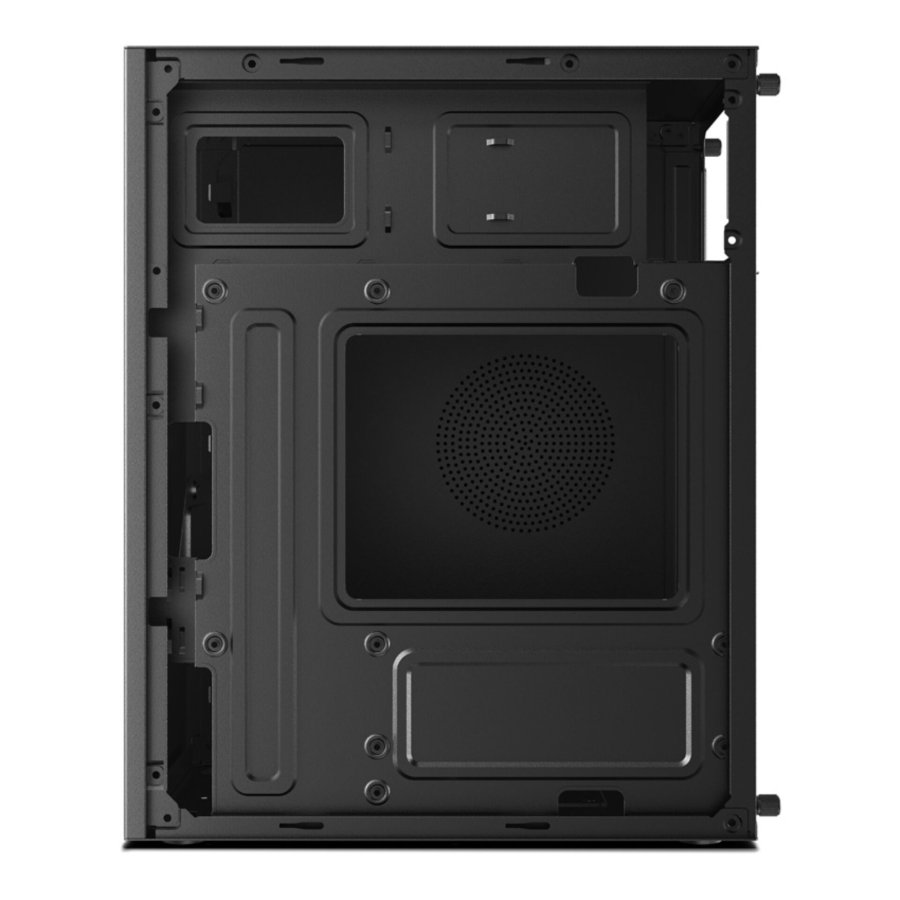

The closed front design ensures a subtle look for everyday office environments. Side ventilation slots support airflow, while a 120 mm fan can be mounted at the rear. For data storage, up to two 3.5-inch hard drives and up to three 2.5-inch drives are available depending on the configuration.
Features:
- Supports Micro-ATX and Mini-ITX motherboards for compact system builds
- Accommodates graphics cards up to 260 mm in length without the HDD frame
- Supports CPU coolers up to 160 mm in height
- USB-C port (USB 3.2 Gen 1) for connecting modern devices
- Additional USB-A ports for peripherals and storage media
- 3.5 mm HD audio output for headphones or speakers
- Side ventilation slots support cooling for the installed hardware

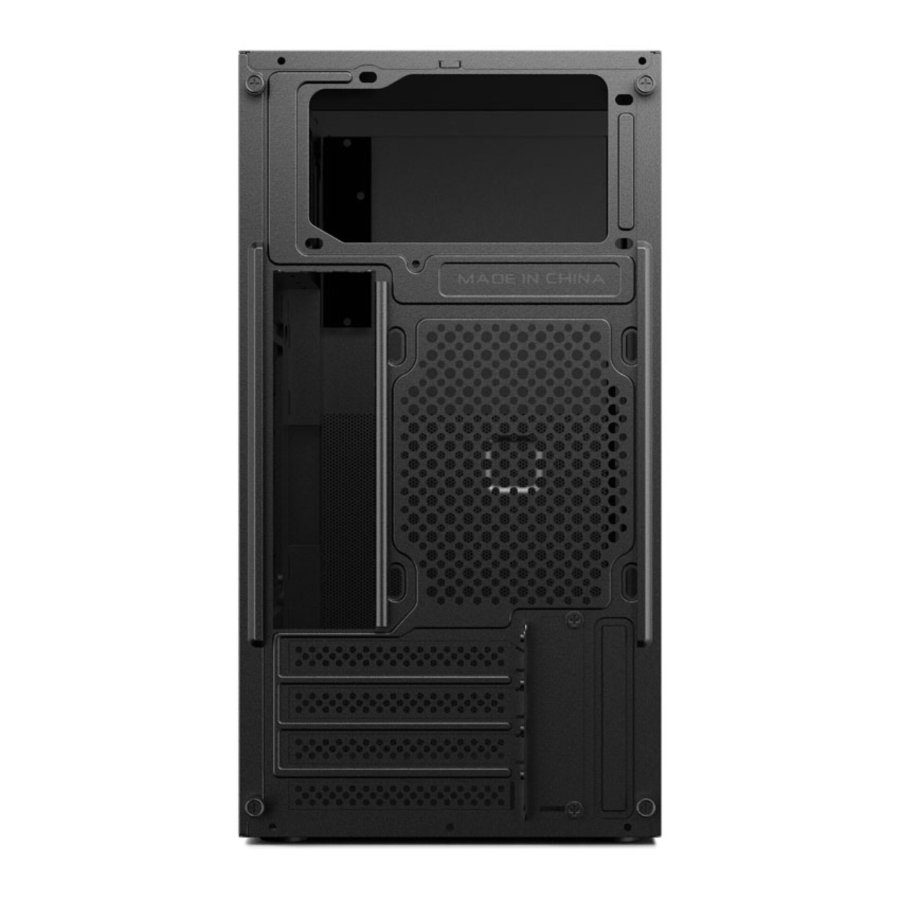

- Mounting option for one 120 mm case fan at the rear
- Flexible drive configurations with up to 2x 3.5-inch and 3x 2.5-inch drives
- 4 horizontal PCI expansion slots for additional components
Technical Specifications:
- Case Type: M-ATX
- Motherboard Compatibility: Micro-ATX, Mini-ITX
- Material: Metal, Plastic
- Internal Drive Bays: Up to 2x 3.5-inch, up to 3x 2.5-inch
- Expansion Slots: 4 PCI slots
- Fan Mounting: 1x 120 mm rear
- Maximum Graphics Card Length: 225 mm with HDD frame / 260 mm without HDD frame
- Maximum CPU Cooler Height: 160 mm
- Power Supply Form Factor: ATX
- Maximum Power Supply Length: 150 mm
- USB-C: 1x USB 3.2 Gen 1
- USB-A: 1x USB 3.2 Gen 1 / 1x USB 2.0
- Audio Port: 1x 3.5 mm
- Chassis Dimensions (H x W x D): 35.0 x 18.8 x 27.5 cm
- Case Dimensions (H x W x D): 35.5 x 18.8 x 29.0 cm
- Weight: 2.4 kg
- Color: Black
