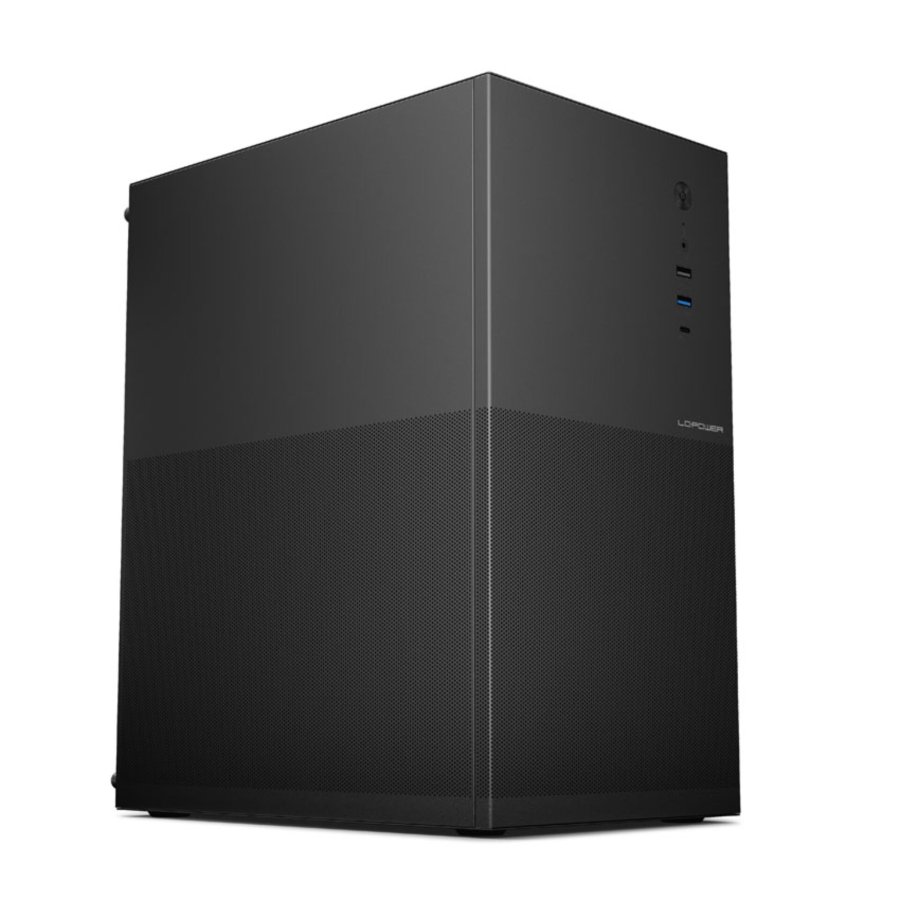

LC-Power 6101MB - M-ATX / Mini-ITX Office PC Case, Mesh Front, Black
This compact M-ATX case is ideal for space-saving office systems and supports both Micro-ATX and Mini-ITX motherboards. Despite its compact dimensions, it offers sufficient space for high-performance components, including graphics cards up to 260 mm in length (without HDD frame) and CPU coolers with a height of up to 160 mm. A standard ATX power supply with a length of up to 150 mm can be easily mounted in the top section.

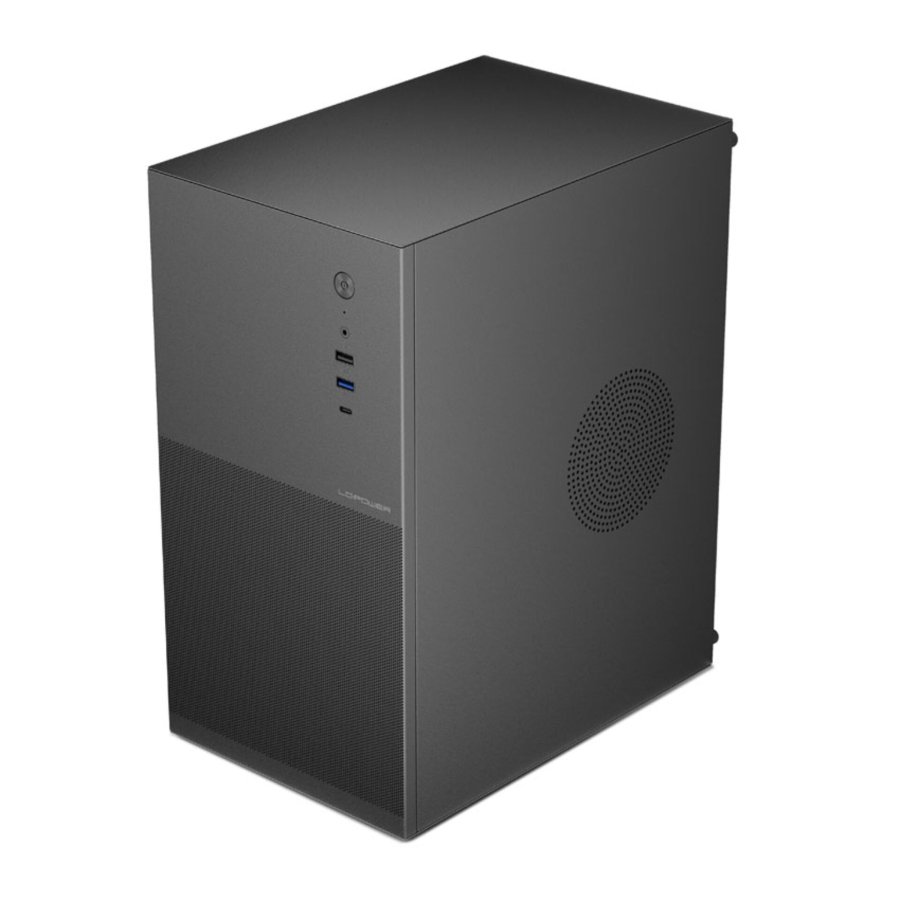

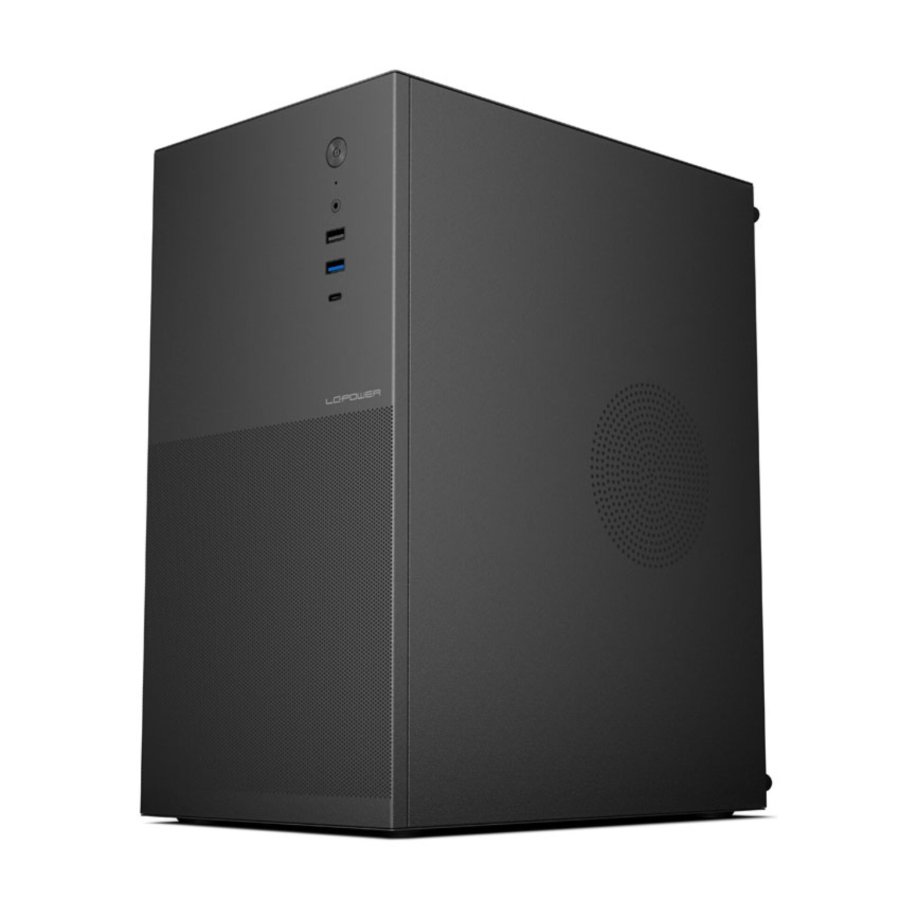

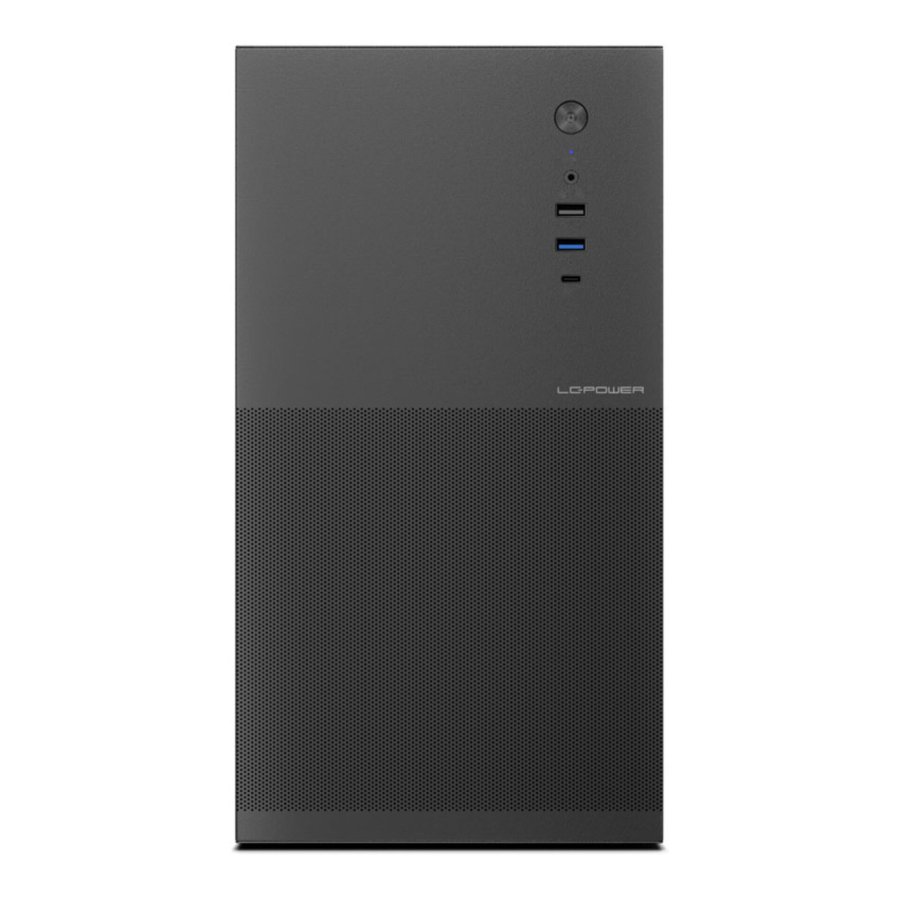

Modern connectivity right at the front
The front panel features a USB-C port (USB 3.2 Gen 1 standard) with data transfer speeds up to 5 Gb/s, as well as a USB-A port (USB 3.2 Gen 1) and an additional USB 2.0 port. This allows modern peripheral devices and external storage media to be connected quickly and easily. The connectivity options are completed by a 3.5 mm HD audio output and an easily accessible power button.

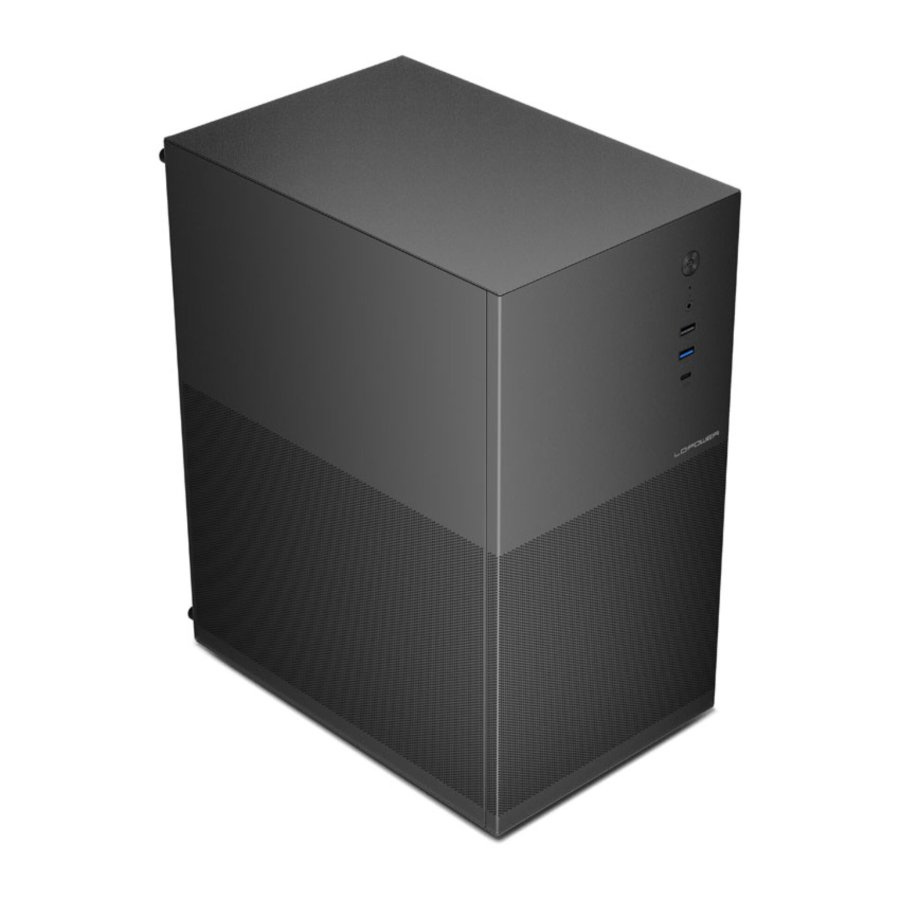

Mesh front for optimal airflow

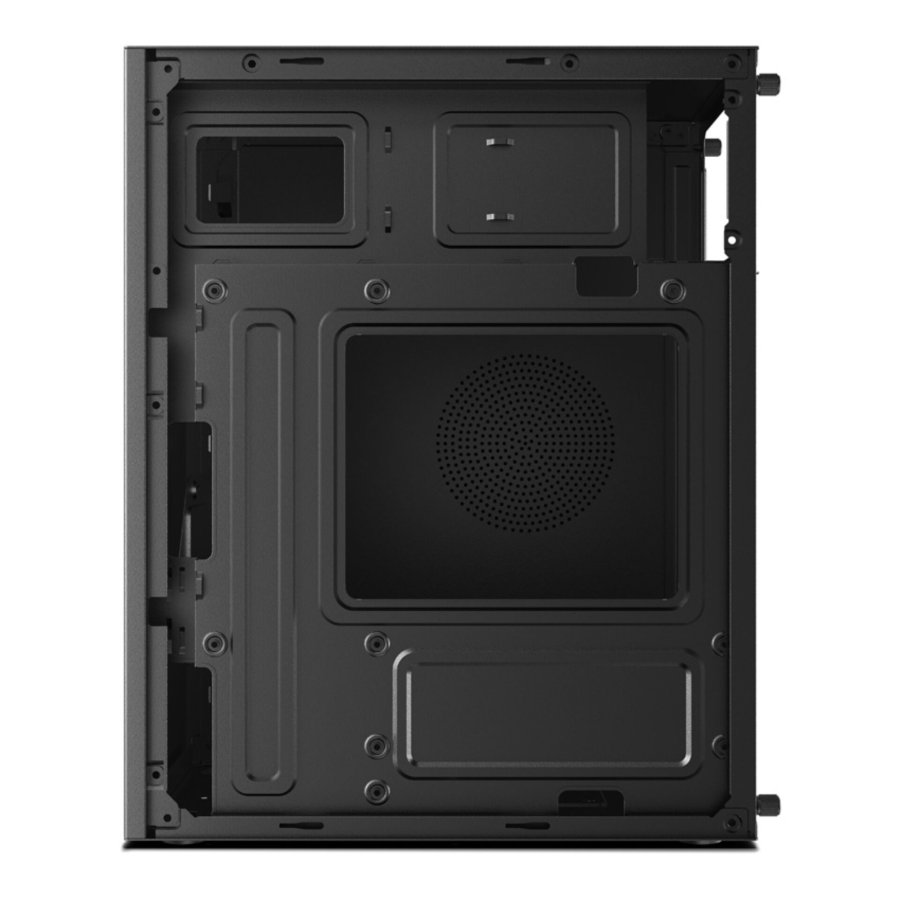

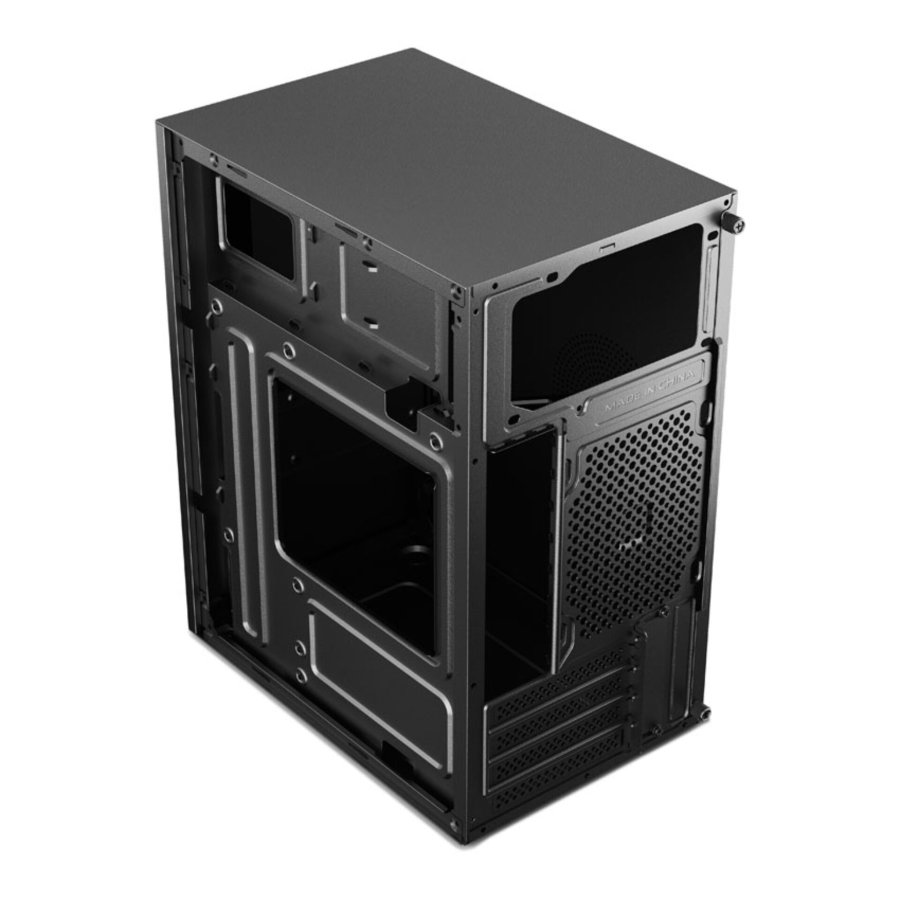

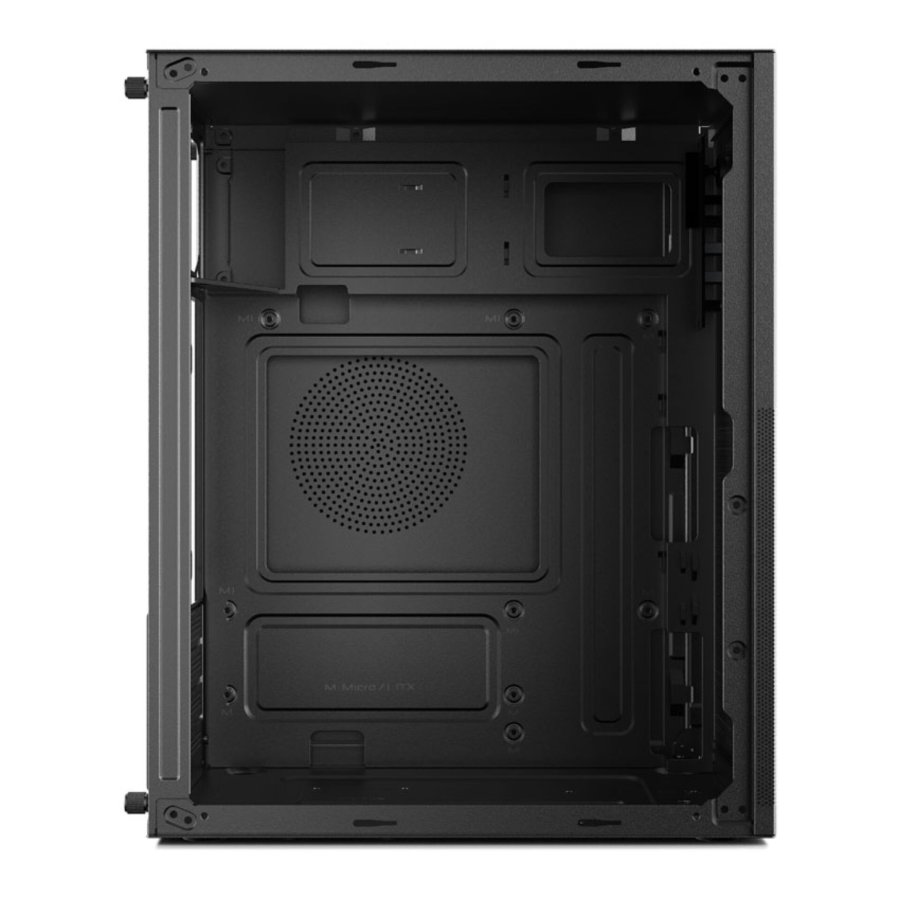

The open mesh design ensures significantly higher fresh air intake compared to a closed front panel. This enhanced air circulation is perfect for keeping internal components cool under continuous office workloads, while an additional 120 mm fan can be installed at the rear. For data storage, the flexible layout accommodates up to two 3.5-inch hard drives and up to three 2.5-inch drives depending on the system configuration.
Features:
- Supports Micro-ATX and Mini-ITX motherboards for compact system builds
- Accommodates graphics cards up to 260 mm in length (without HDD frame)
- Supports CPU coolers up to 160 mm in height
- USB-C port (USB 3.2 Gen 1) for connecting modern devices
- Additional USB-A ports for peripherals and storage drives
- 3.5 mm HD audio output for headphones or speakers
- Mesh front panel enhances the cooling performance of installed hardware

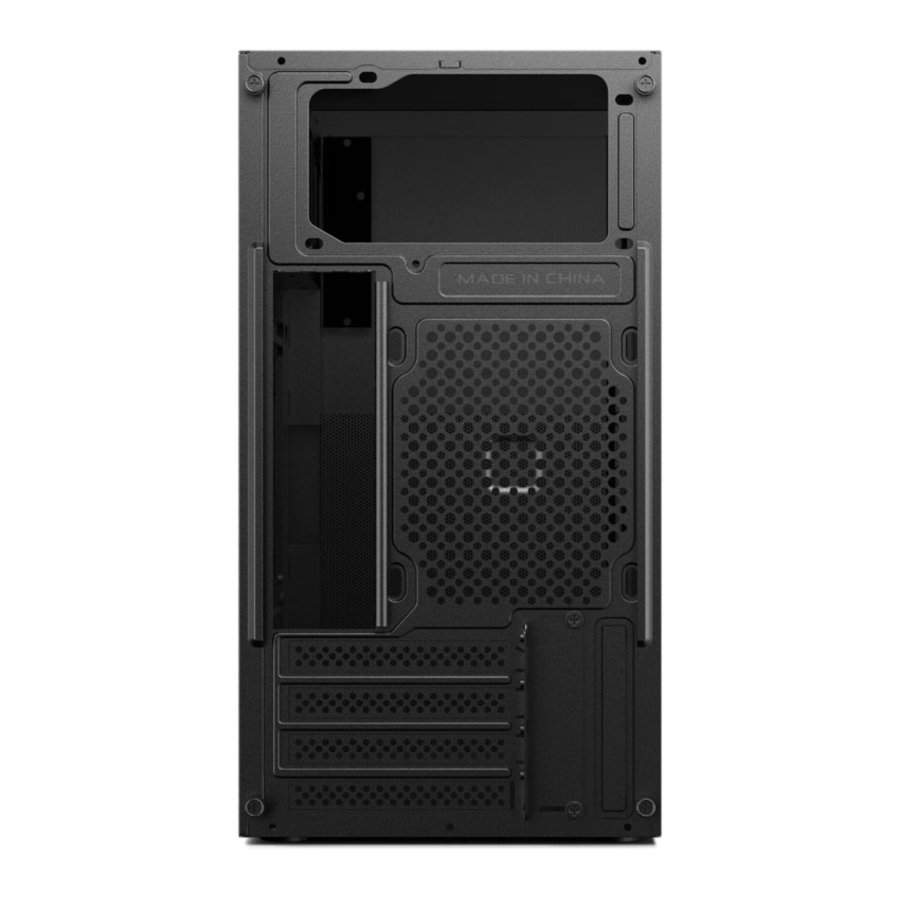

- Mounting support for one 120 mm case fan at the rear
- Flexible drive bays configuration for up to 2x 3.5-inch and 3x 2.5-inch drives
- 4 horizontal PCI expansion slots for additional components
Technical Specifications:
- Case type: M-ATX
- Motherboard compatibility: Micro-ATX, Mini-ITX
- Material: Metal, plastic
- Internal drive bays: Up to 2x 3.5-inch, up to 3x 2.5-inch
- Expansion slots: 4 PCI slots
- Fan mounting options: 1x 120 mm rear
- Maximum GPU length: 225 mm with HDD frame / 260 mm without HDD frame
- Maximum CPU cooler height: 160 mm
- Power supply form factor: ATX
- Maximum PSU length: 150 mm
- USB-C: 1x USB 3.2 Gen 1
- USB-A: 1x USB 3.2 Gen 1 / 1x USB 2.0
- Audio port: 1x 3.5 mm
- Cage dimensions (H x W x D): 35.0 x 18.8 x 27.5 cm
- Case dimensions (H x W x D): 35.5 x 18.8 x 29.0 cm
- Weight: 2.4 kg
- Color: Black
