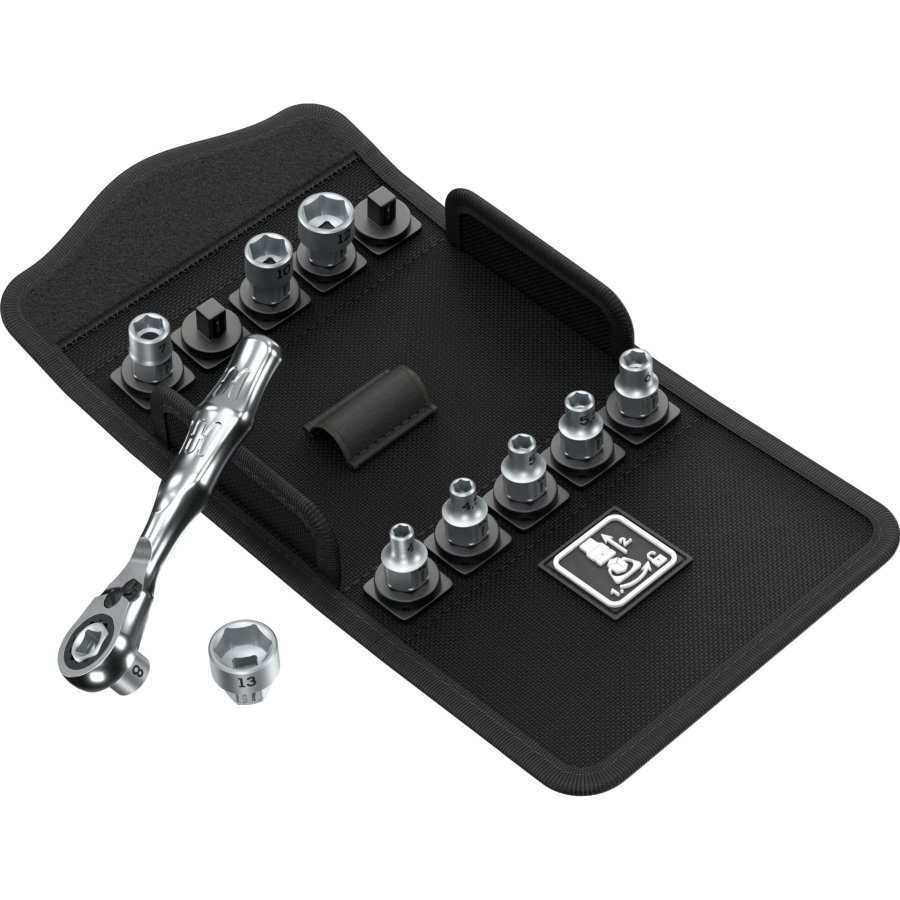

Wera Kraftform Kompakt Zyklop Mini 2 Set 1 Ratchet Set
When screw connections need to be made in tight spaces, every millimetre counts. The 11-piece set combines a Zyklop Mini 2 ratchet with specially matched sockets. Thanks to the low height of the special sockets of 18 mm, even hard-to-reach connections can be accessed. The fine-tooth mechanism supports precise work during assembly and service tasks.
Precise work in tight spaces

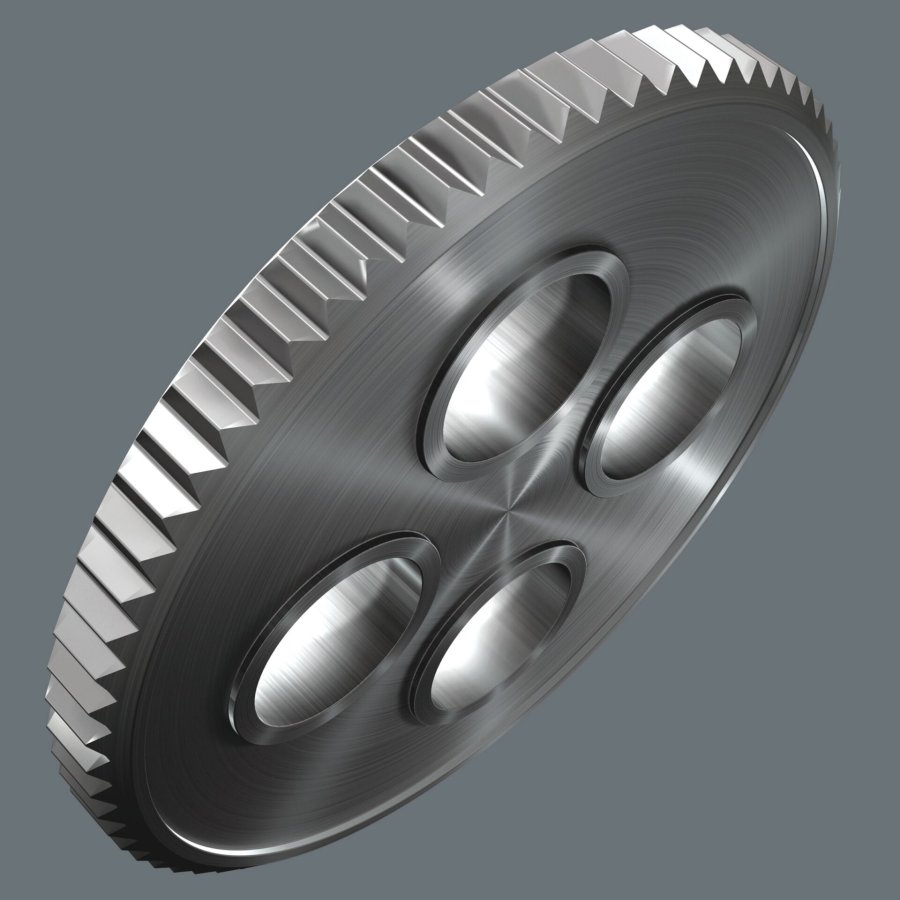

The Zyklop Mini 2 ratchet has 60 teeth and therefore offers a return angle of only 6°. This allows you to move screw connections in a controlled way even when there is very little swing space available. The direct fit of the Zyklop special sockets provides a compact design. In addition, the direction of rotation can be changed between clockwise and anti-clockwise using a reversing lever.
Smart design for assembly work
The ratchet and sockets feature a hollow design. This allows threaded rods up to M6 to pass completely through the tool. The drop-forged solid steel construction enables torque transfer up to 65 Nm. A textile box with a twist-to-unlock system is included for storage and supports organised removal of the sockets.
Features:
- Fine-tooth ratchet mechanism with 60 teeth supports precise work
- Small return angle of 6° supports work with limited swing space

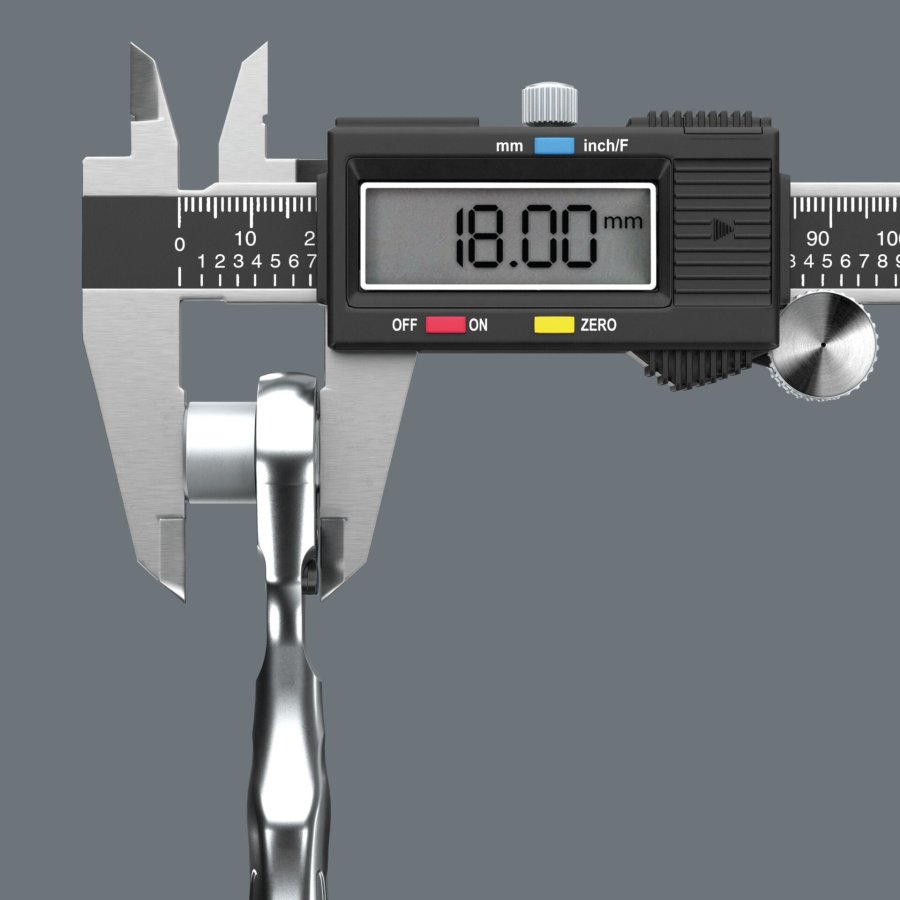

- Low socket height of 18 mm helps in tight installation situations

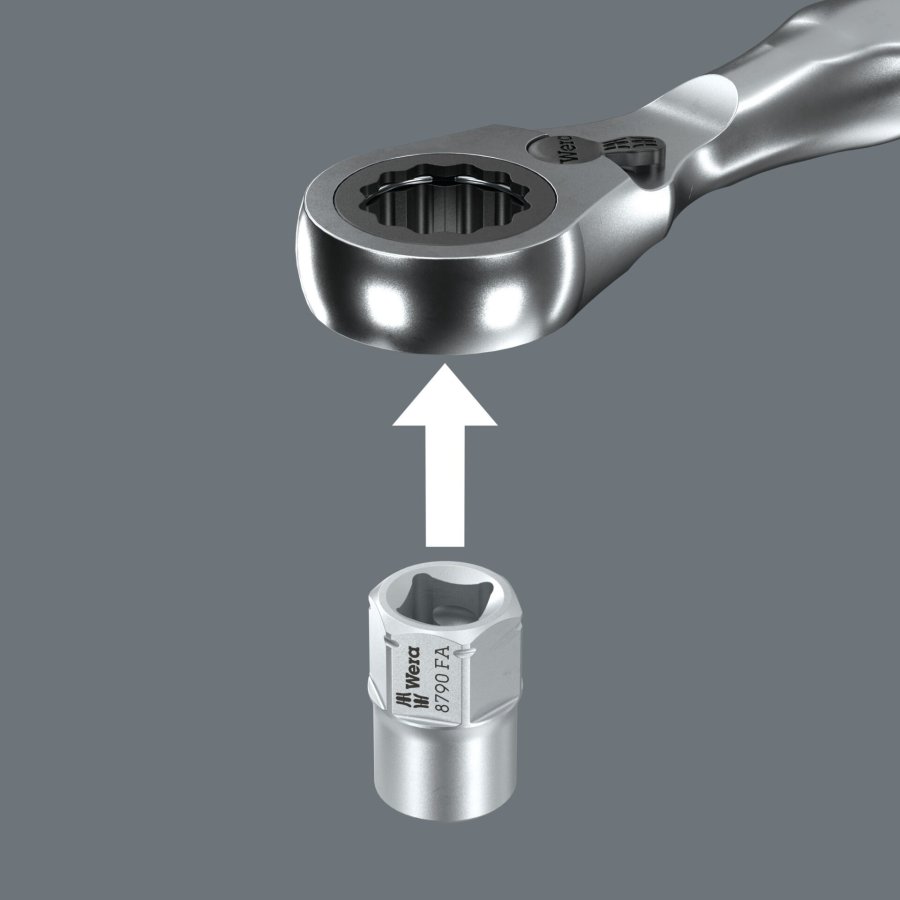

- Direct fit of the Zyklop special sockets allows a compact tool solution

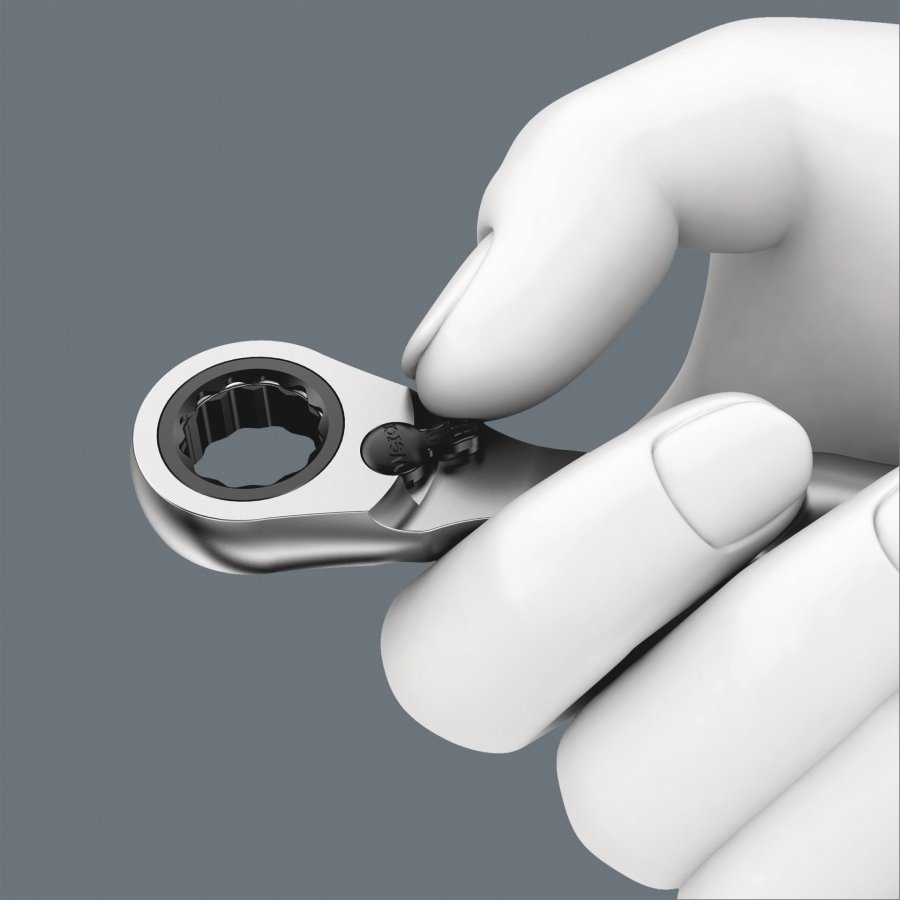

- Reversing lever for clockwise and anti-clockwise operation makes direction changes easier

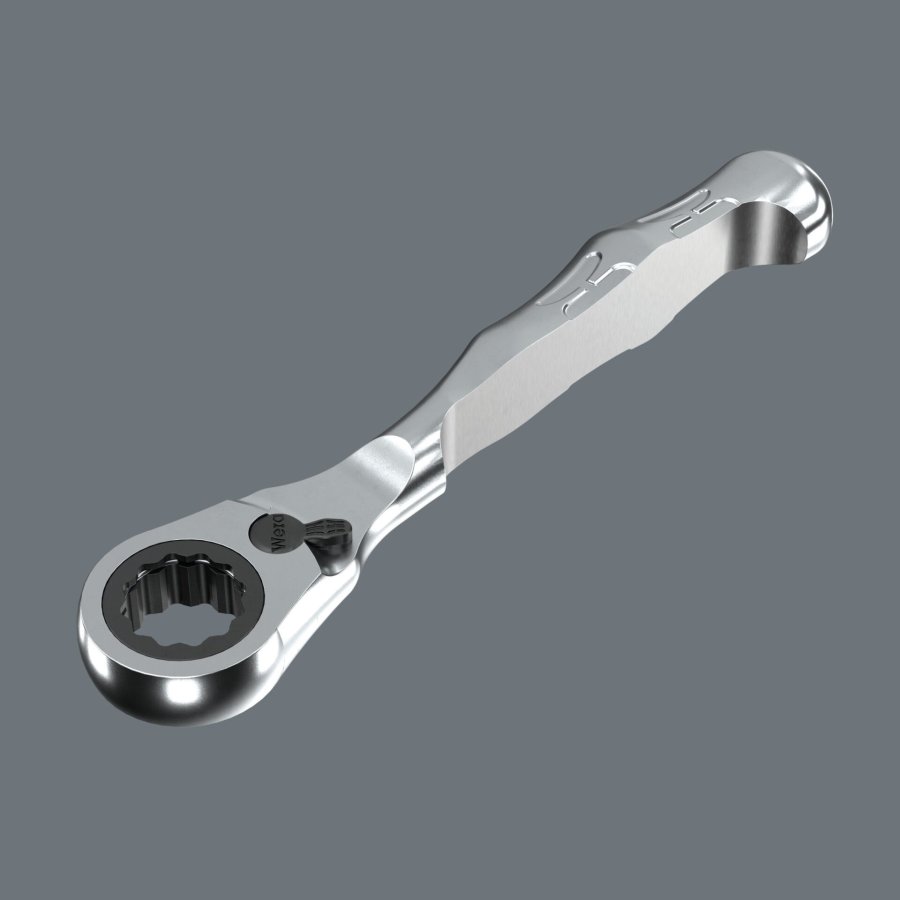

- Drop-forged solid steel construction for torque up to 65 Nm

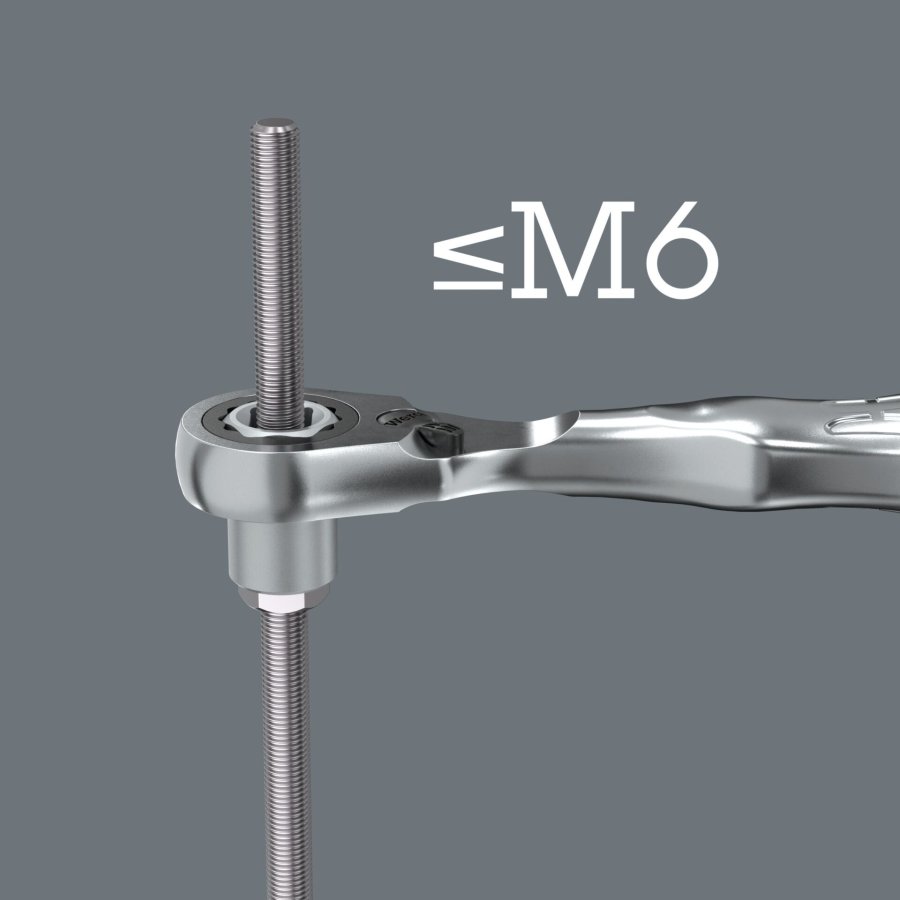

- Hollow design allows work on threaded rods up to M6
- Ball-lock groove on the sockets supports a secure fit
- Textile box with twist-to-unlock system provides organised storage
Specifications:
- Number of pieces: 11
- Socket drive: 1/4" and Hex 11
- Return angle: 6°
- Number of ratchet teeth: 60
- Socket height: 18 mm
- Socket material: Chrome vanadium
- Maximum threaded rod size: M6
- Maximum transferable torque: 65 Nm

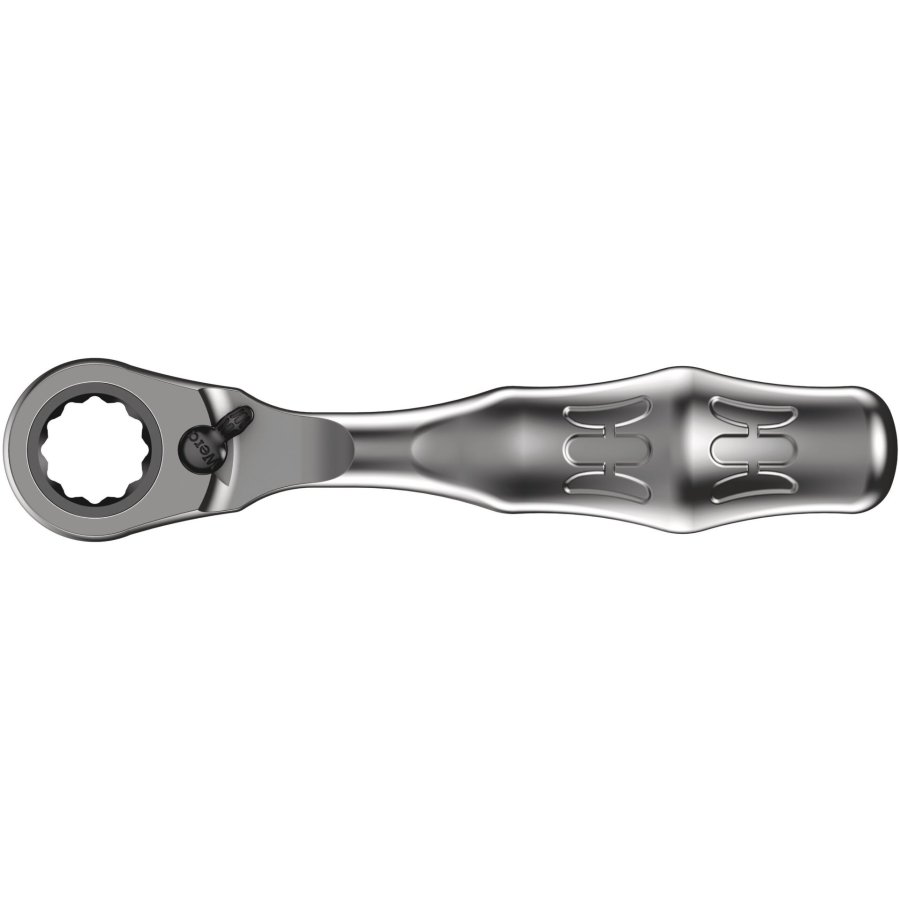

- Length of Zyklop Mini 2 ratchet: 107 mm
scope of delivery:
- 1x 8005 Zyklop Mini 2 ratchet, 107 mm
- 1x 8790 FA Zyklop socket 4 mm x 18 mm
- 1x 8790 FA Zyklop socket 4.5 mm x 18 mm
- 1x 8790 FA Zyklop socket 5 mm x 18 mm
- 1x 8790 FA Zyklop socket 5.5 mm x 18 mm
- 1x 8790 FA Zyklop socket 6 mm x 18 mm
- 1x 8790 FA Zyklop socket 7 mm x 18 mm
- 1x 8790 FA Zyklop socket 8 mm x 18 mm
- 1x 8790 FA Zyklop socket 10 mm x 18 mm
- 1x 8790 FA Zyklop socket 12 mm x 18 mm
- 1x 8790 FA Zyklop socket 13 mm x 18 mm
- 1x Hook-and-loop strip 120 x 50 mm
