Novoflex BAL-FUG - automatic bellows for Fujifilm GFX
Set, consisting of Novoflex BALPRO-1 and FUG-RETRO reversing ring
The combination of FUG-RETRO and the universal bellows BALPRO-1 turns it into full-fledged automatic bellows for Fujifilm GFX.

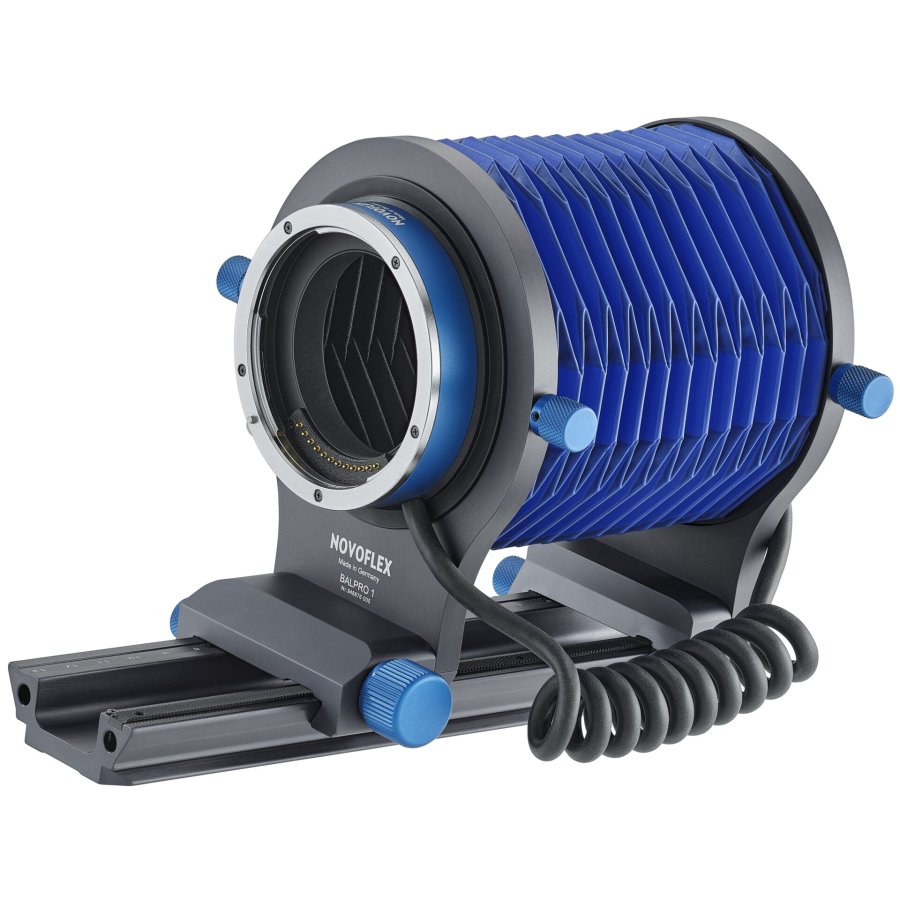

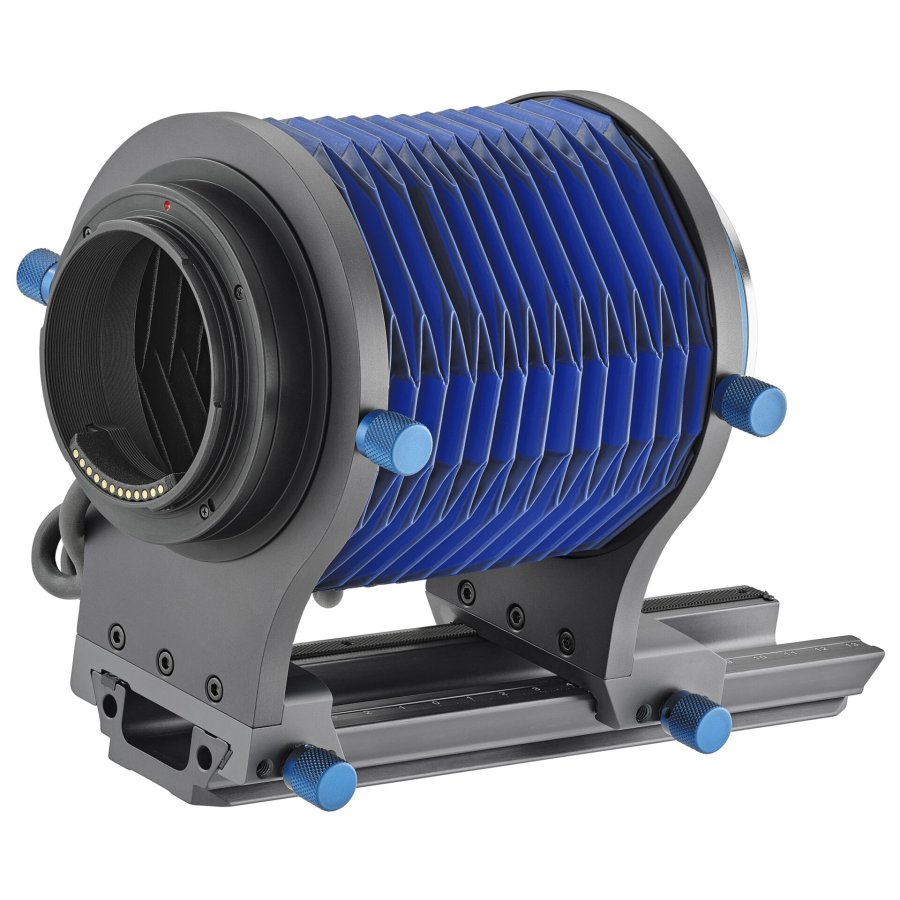

BALPRO-1
The NOVOFLEX BALPRO-1 universal bellows is a very versatile bellows.
With its complete adapter ring system, it supports almost any combination of lens and camera systems. You can combine most medium-format lenses and nearly all 35 mm lenses and special lenses with any size camera body up to 6 × 7 format.
Thanks to its compact dimensions, the BALPRO-1 is also ideal for on the road and in the field.
Technical specifications:
- Size:
- Height: 150 mm (5.9”)
- Width: 115 mm (4.52”)
- Length:200 mm (7.87”)
- Weight: 755 g (1.6 lbs)
- Minimum extension: 40 mm (1.57“)
- Maximum extension: 192 mm (7.55”)
FUG-RETRO
Opens up the world of close-up and extreme macro photography with outstanding quality for the owner of Fujifilm GF wide-angle lenses or zooms. The lens is mounted on the body in an inverted position using the reversing ring. The reverse adapter provides full electronic passthrough of all control functions.
Example: With a Fujifilm GF 45-100mm f/4.0 R LM OIS WR in reverse position directly on the camera, a magnification factor of 1.1:1 at 100mm focal length up to 1.9:1 at 45mm focal length can be achieved. When used in the normal position on the BALPRO-1 bellows, even larger magnification factors are possible: 0.59:1 at 100mm and bellows pushed together up to 3.67:1 at 80mm and bellows completely extended.
The FUG-RETRO reverse adapter comes with a filter thread of 77mm by default. For lenses with other filter thread diameters we offer suitable step rings.
The combination of FUG-RETRO and the universal bellows of the BALPRO-series (BALPRO-1, BALPRO T/S and CASTBAL-PRO) turns them into full-fledged automatic bellows for Fujifilm GFX. The BALPRO T/S even has a tilt/shift capabilities for close-up and macro ranges. The reversing ring allows lenses to be attached to the bellows in both the normal and reverse positions. No separate connection rings are required to connect FUG-RETRO to the BALPRO bellows. The V-groove for clamping in the standards of the bellows device is already present on both sides of the reversing ring.
FUG-RETRO has a 77mm filter thread on the back of the lens connection piece for the use of filters and macro ring lights.
Technical specifications:
- Length: 33cm
- Width: 8.8cm
- Height: 2.5cm
- Weight: 263g
- Filter thread: 77mm
