Fein F-IRON JIG 26 AS Set cordless jigsaw
The device offers optimum control thanks to a slim and ergonomic bar handle, which enables precise cuts and curved cuts even in the tightest of spaces. The adjustable speed and 4-stage pendulum action ensure excellent work results with a wide range of materials - without time-consuming reworking.
Thanks to the quick and tool-free saw blade change, materials such as steel, aluminum, plastic or wood can be processed flexibly. The automatic saw blade lock makes it easier to change sharp-edged saw blades without having to change your grip, thus minimizing the risk of injury. An integrated dust extraction adapter also ensures clean and ergonomic working.
The 4-stage pendulum action enables precise adjustment of the cutting speed, cutting performance and cutting pattern to the respective material. An intelligent LED work light ensures optimum illumination of the work area and offers additional convenience thanks to the overhead switch-off function. The concentrated exhaust air from the fan wheel keeps the cutting edge free of dust, ensuring a clear view at all times. Cold cuts ensure virtually spark- and burr-free results, which further increases safety and efficiency.
Electronic user protection with overload cut-out and restart protection protect the device and user. The option of setting mitre angles of 0°, 15°, 30° and 45° on both the left and right considerably extends the range of applications. Additional features such as chip break protection and a glide shoe for sensitive surfaces ensure precise and gentle processing results.
With the standard T-shank saw blade holder and an extensive range of accessories, which includes saw blades for metal, wood and plastic, the device is equipped for a wide range of applications. It is compatible with all 18 V AMPShare ProCORE batteries and chargers, which are also suitable for 18 V Bosch professional tools. The “Electronic Cell Protection” (ECP) protects the battery against overloading, overheating and deep discharge.
Ideally equipped for every application, the L-BOXX system enables mobile and convenient working.
Features:
- Battery voltage: 18 V
- Battery capacity: 4 Ah
- Battery compatibility: Li-Ion / ProCORE Li-Ion
- Battery interface: 18 V AMPShare
- Tool holder: T-shank (single-cam shank)
- Wood: 150 mm
- Stroke length: 26 mm
- Steel up to 400 N/mm²: 12 mm
- Non-ferrous metals up to 250 N/mm²: 24 mm
- Sound pressure level LpA: 88.4 dB
- Sound power level LWA: 96.4 dB
- Sound peak value LpCpeak: 106.2 dB
- Vibration value 1 αhv 3-way: 7.4 m/s²
- Vibration value 2 αhv 3-way: 7.1 m/s²
- Base plate dimensions: 156 x 73 mm
- Weight without battery: 2.10 kg

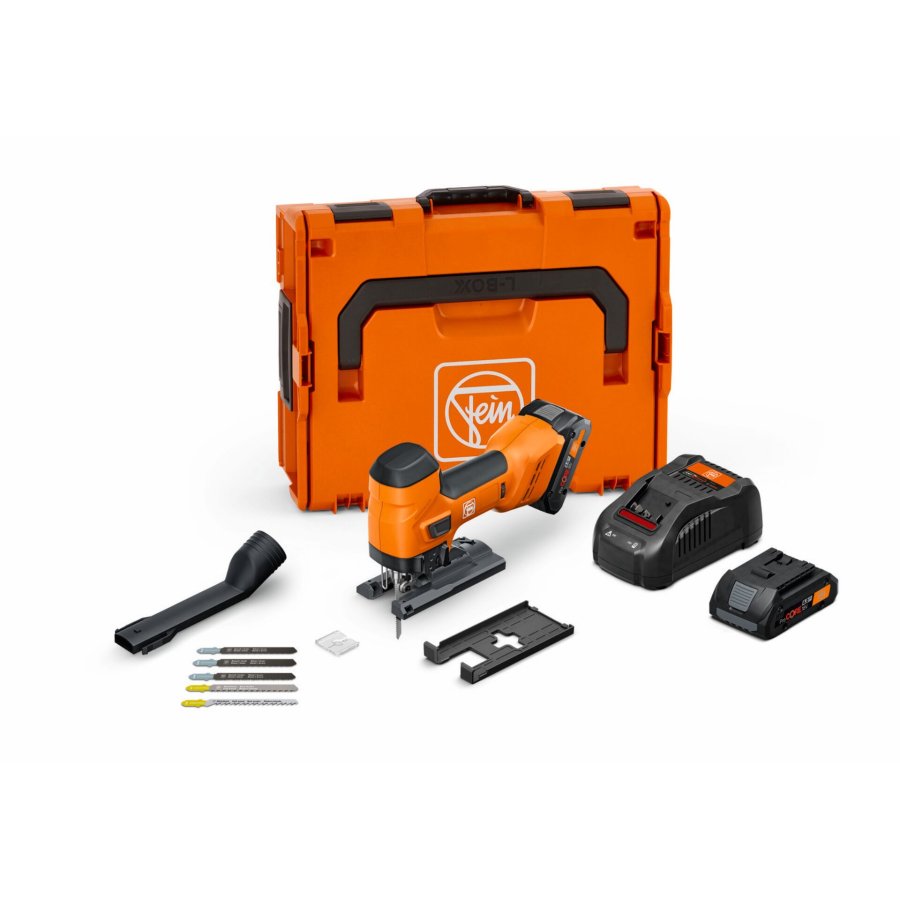

Scope of delivery:
- 1x Best of jigsaw blades 5-piece (63503188010)
- 1x Allen key 4 mm
- 1x plastic glide shoe
- 1x chip breaker guard
- 1x dust extraction adapter
- 2x ProCORE 18 V 4.0 Ah AS battery pack
- 1x GAL 1880 CV AS quick charger
- 1x plastic tool case (L-BOXX 136)
