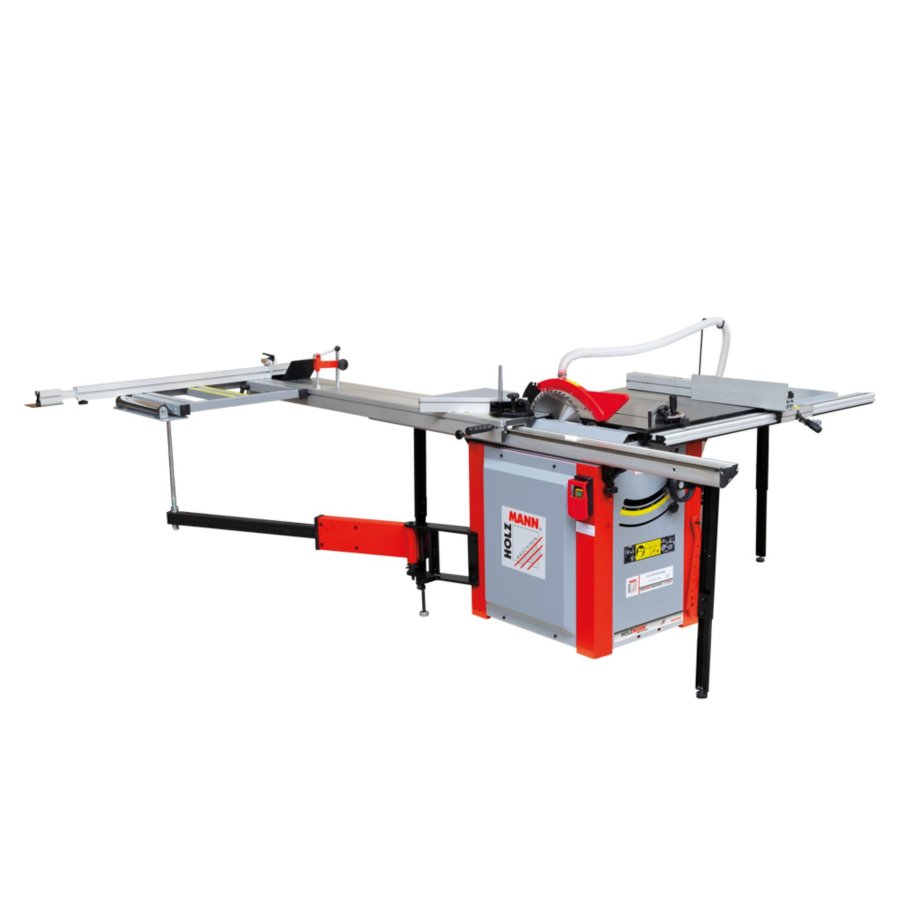

Holzmann TS315VF2000_400V circular saw
The HOLZMANN TS315VF2000_400V combines precision, power, excellent cutting performance and versatile equipment. Thus it not only meets the requirements of hobby carpenters but is also found in carpentry. Thanks to the sophisticated machine design, the 315 mm saw blade achieves a cutting height of 10 cm. With the scratch saw blade, it is possible to cut coated panels without cracks. Speaking of plates: the sliding table length is 2000 mm, the cutting edge can be extended up to 2260 mm. This means that even larger projects are not hindered.
Features:
- Voltage: 400V (a 400V connection is required)

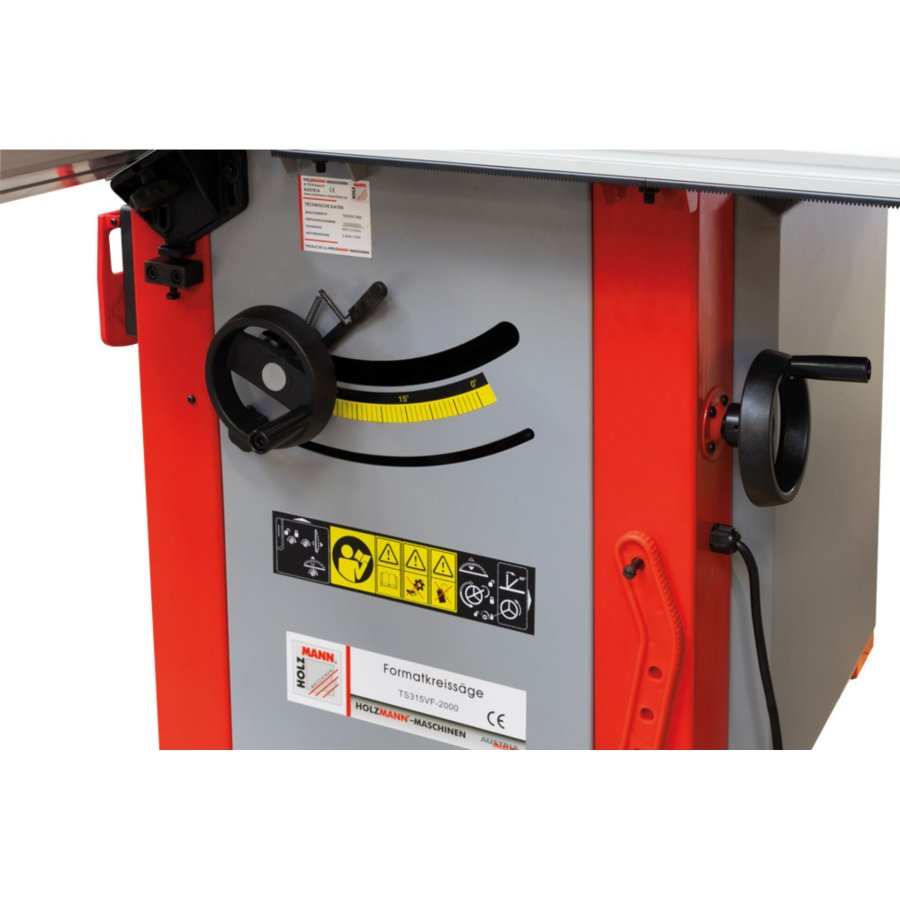

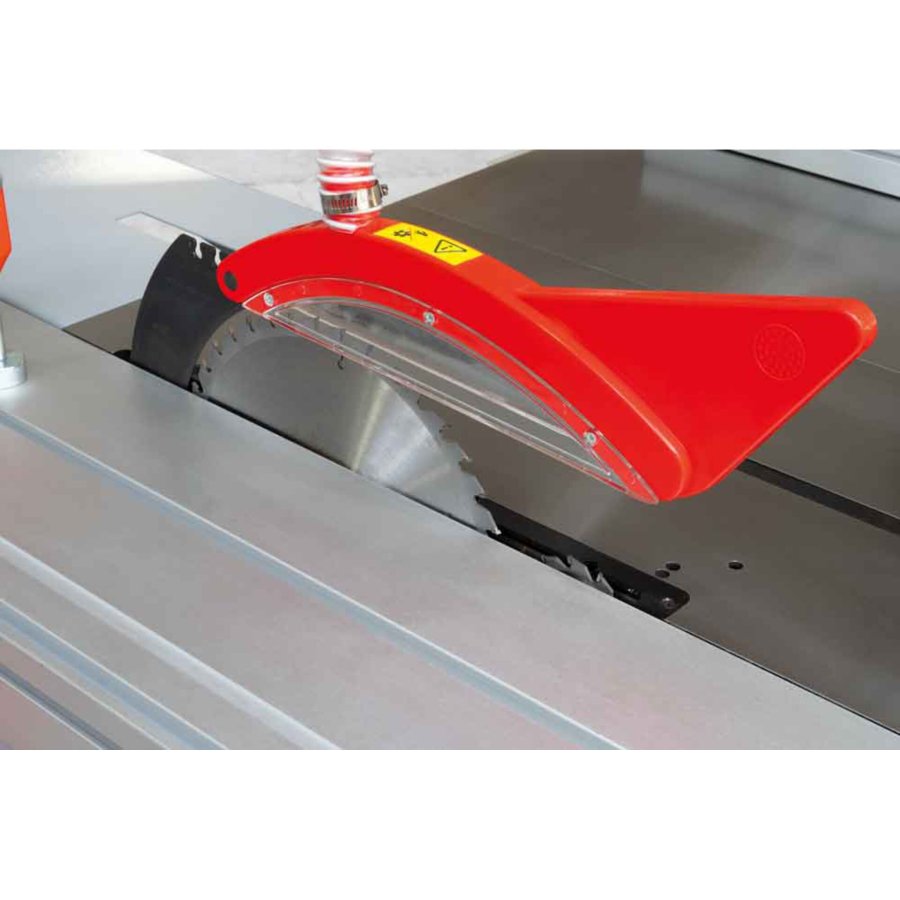

- Swivelling and height-adjustable circular saw blade with scoring unit
- Grey cast iron table with table extension rear and right with support foot
- 2000 mm long professional aluminium sliding table with support roller on the boom

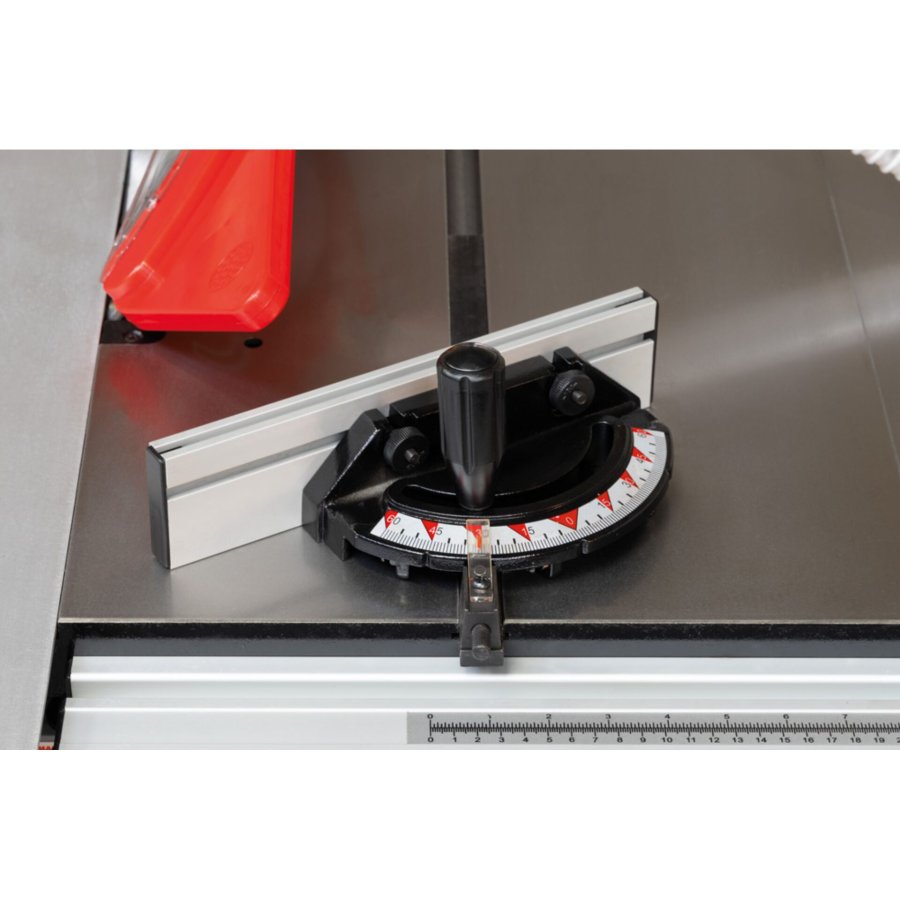

- Extendable bevel stop with flap stop

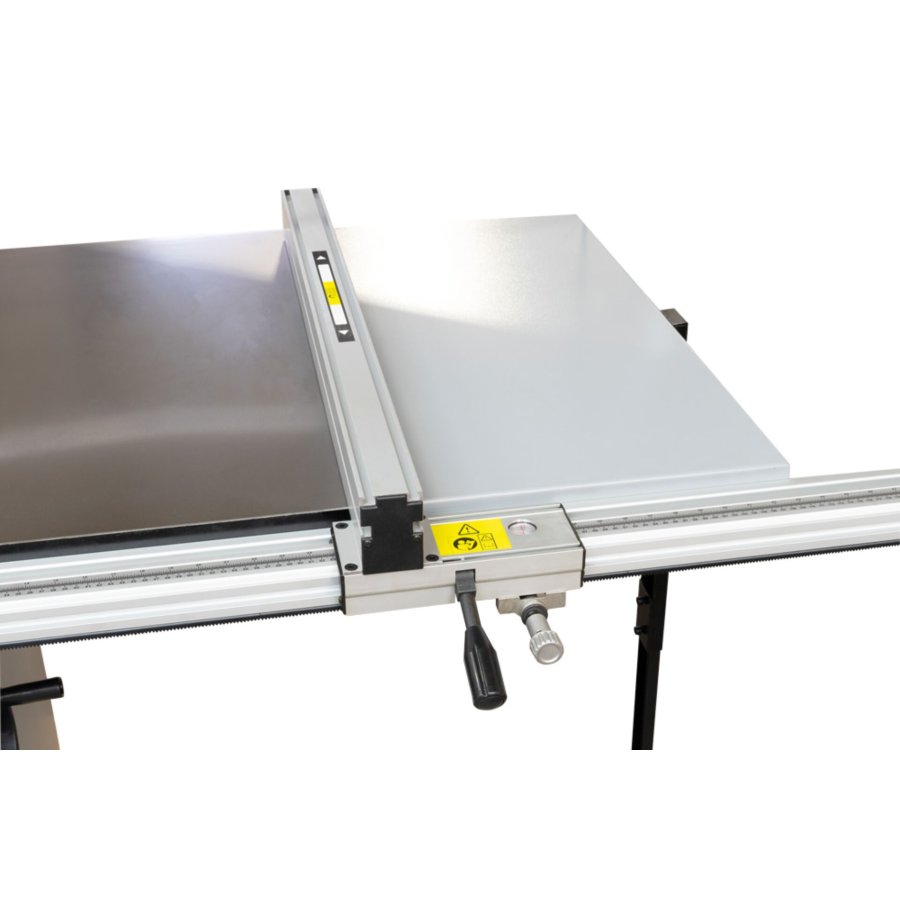

- Oversized parallel cutting width to the right of saw blade up to 1250 mm
Technical data:
- Motor power S6: 4000 W
- Motor power S1: 3000 W
- Voltage: 400V
- Table size: 800 x 820 mm
- Table extension: 500 x 310 / 800 x 440 mm
- Table height: 870 mm
- Suction connection: 100 mm
- Sliding table: 2000 x 270 mm
- Cantilever table: 540 x 760 mm
- Max cutting height 90°: 100 mm
- Maximum cutting length: 1900 mm
- Max cutting height 45°: 80 mm
- Cutting width at the parallel stop: 1250 mm
- Saw blade: 315 mm
- Incision saw blade: 90 mm
- Saw blade speed: 4000 U/min
- Incision saw blade speed: 5800 U/min
- Saw blade swivel range: 0°-45°
Please note that:
Electrical connection work / installations may only be carried out by qualified specialist personnel.
