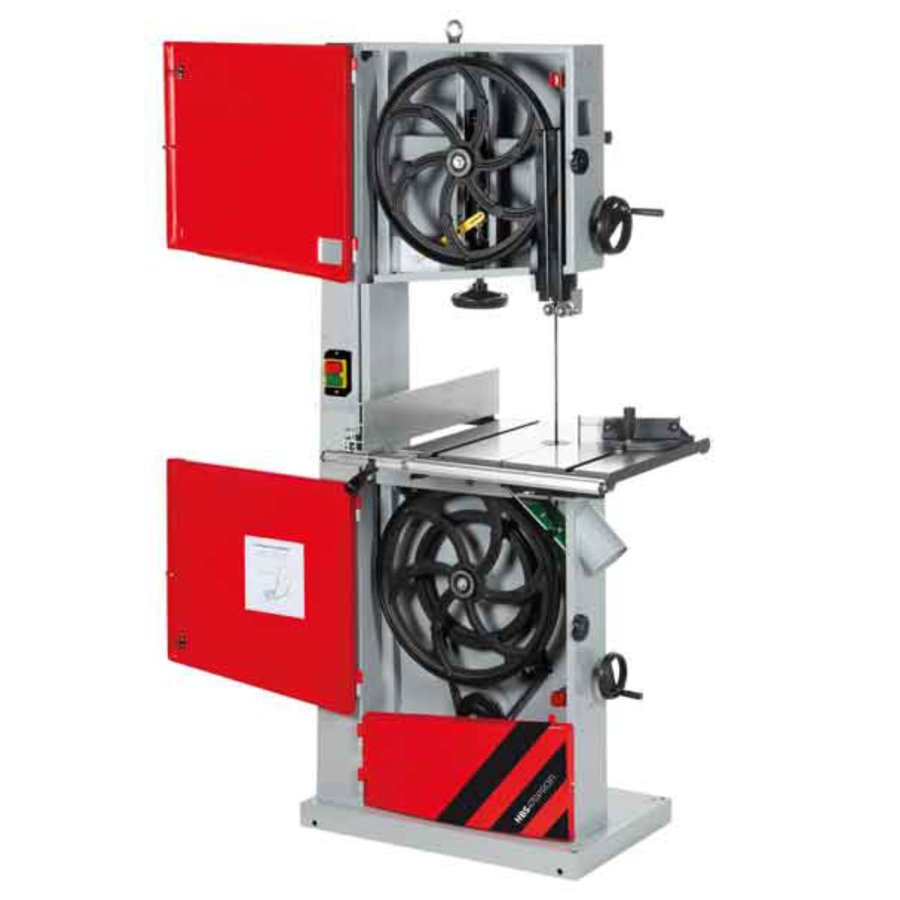

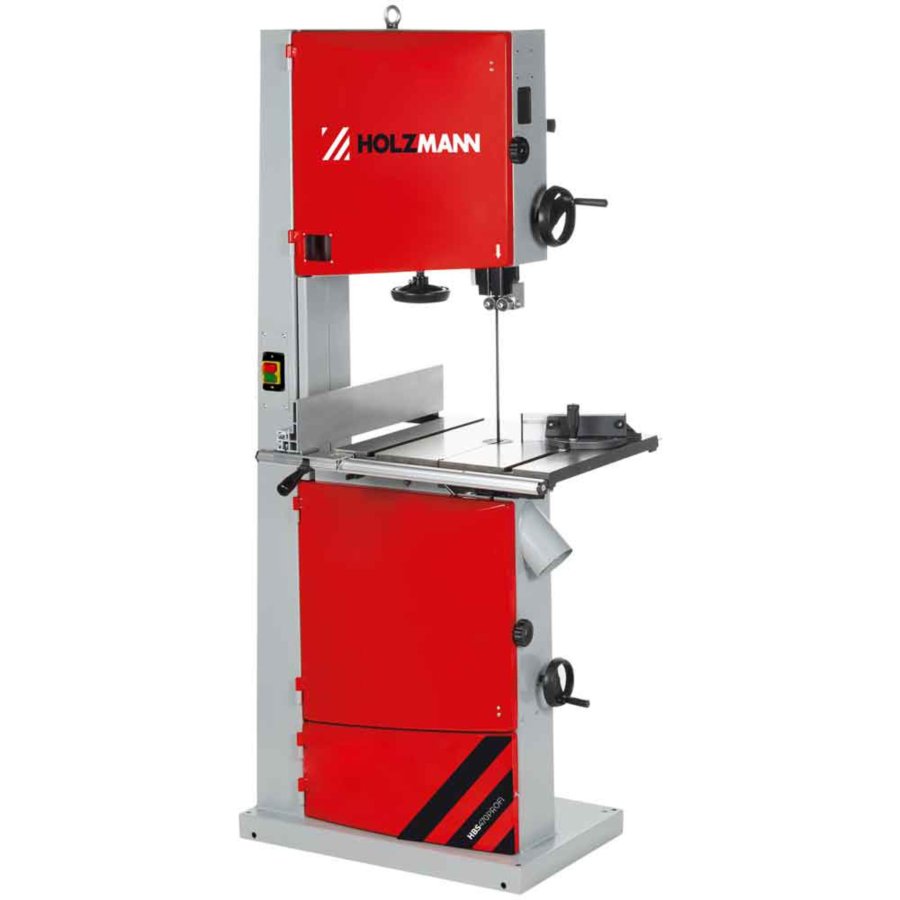

Holzmann HBS470PROFI_400V Wood band saw
Features:
- Voltage: 400V (a 400V connection is required)
- For professional use with cast wheels

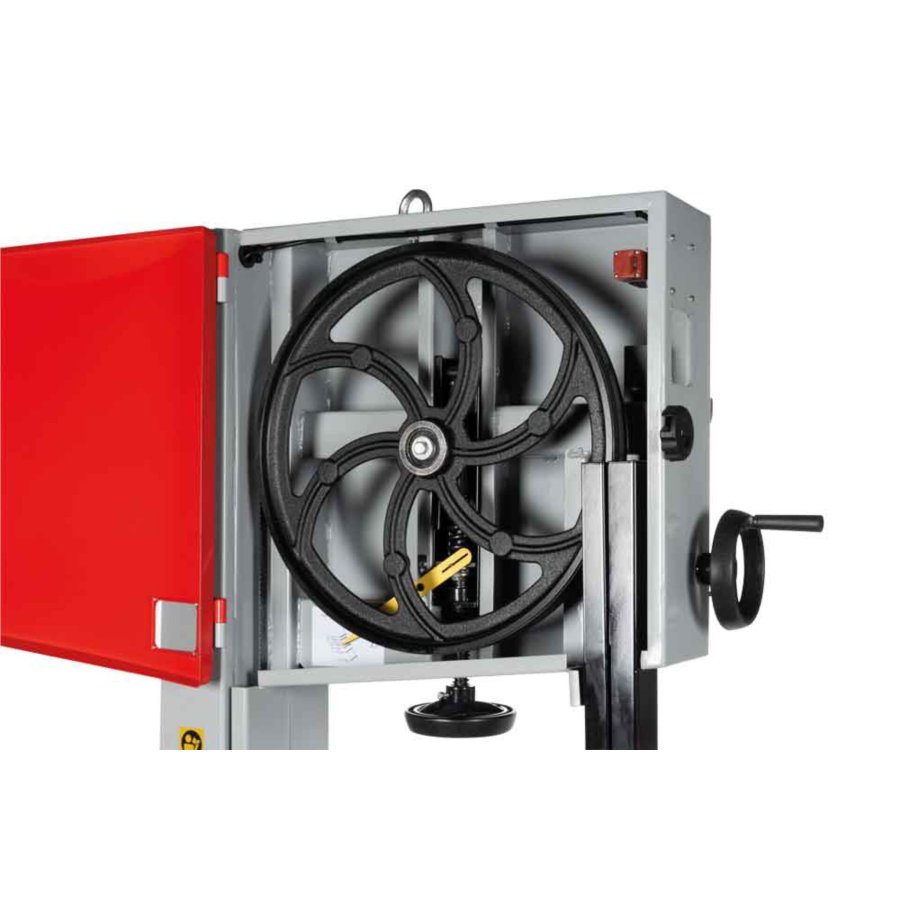

- Rubberized and precision-bearing cast spoke impellers enable quiet operation
- Aluminium cover with quick release
- Measurement scale at the stop and magnifier for accurate reading and adjustment
- Cutting height adjustment easily and quickly adjustable via handwheel- rack combination
- Saw band width from 6 mm to 25 mm possible
- Machine height: 186 cm
- 2 speeds (380 or 820 m/min)
- Angle adjustment table from 0°-45° via interlocking guide
- 2 connection options for extraction (Ø 100 mm)
Technical data:
- Motor power S6: 2100 W
- Motor power S1 (continuous operation): 1500 W
- Voltage: 400 V
- Swivel range: -10° +45°
- Table size: 530 x 480 mm
- Reach: 465 mm
- Table height: 960 mm
- Suction connection: 100 mm
- Cutting capacity: max cutting height 90°: 285 mm
- Cutting width at the parallel stop: 390 mm
- Saw band: 3454 mm
- Impeller diameter: 470 mm
- Saw band width: 6-25 mm
- Saw band speed 380/820 m/min
- Net weight: 162 kg
Please note that:
Electrical connection work / installations may only be carried out by qualified specialist personnel.
