Beskrivelse

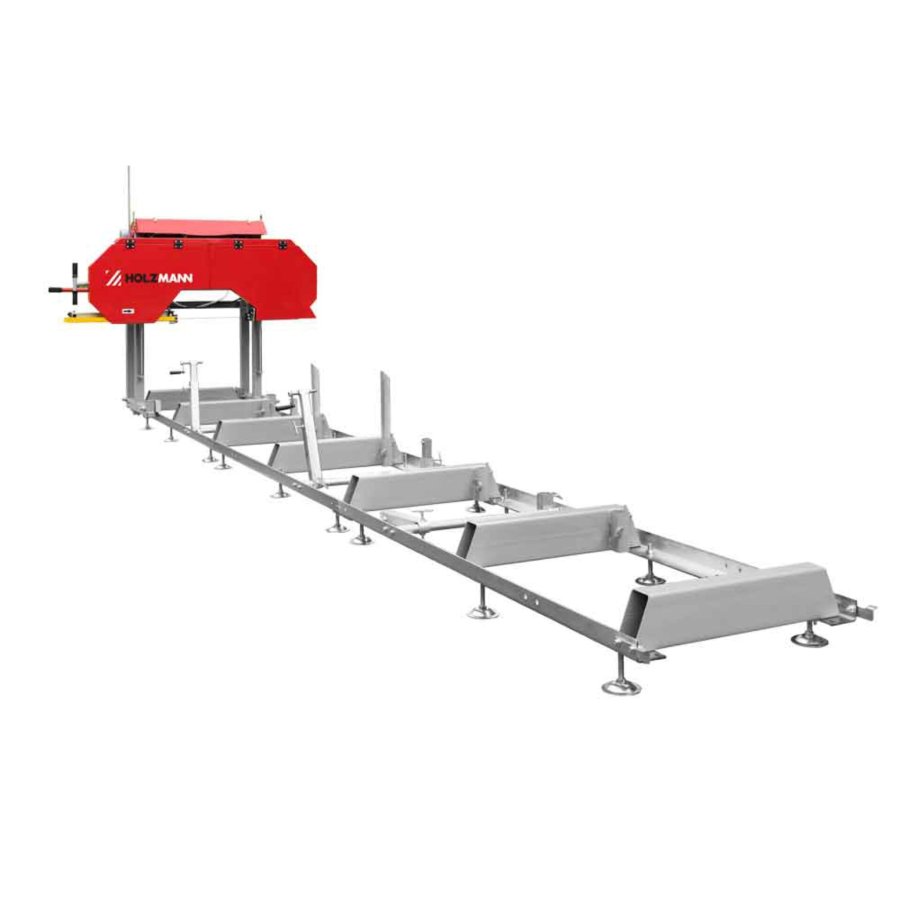

Holzmann BBS810SMART_400V Block band saw
The HOLZMANN BBS810SMART_400V block band saw is ideal for cutting soft, hard, dry or frozen wood. Wooden prisms with a length corresponding to the machine design.
Features:
- Voltage: 400V (a 400V connection is required)
- The maximum cutting length depends on the extension elements, in the basic version 3.2 m are possible
- All types of wood can be cut with the same saw blade
- Robust and vibration-free construction
- Minimal maintenance effort
- Easy to use
- Massive precision cast wheels
- Precision guides
- Eccentric tensioner
- Manual cutting height adjustment
- Manual feed
- Extension available as an option (BBS810SMART_RB)
Technical data:
- Motor power: 7500 W
- Installation dimensions: 4260 x 1950 x 1900 mm
- Saw band: 4015 x 34 x 1.1 mm
- Sawing speed: 1080 m/min
- Impeller diameter: 475 mm
- Max stem diameter: 810 mm
- Maximum board width: 720 mm
- Cutting joint: 1.5 - 2.2 mm
- Extension section: 2.0 m
- Sound pressure level: 89 dB(A)
- Voltage: 400 V
- Weight: 368 kg (gross weight: 416 kg)
Scope of delivery:
Please note that:
Electrical connection work / installations may only be carried out by qualified specialist personnel.
