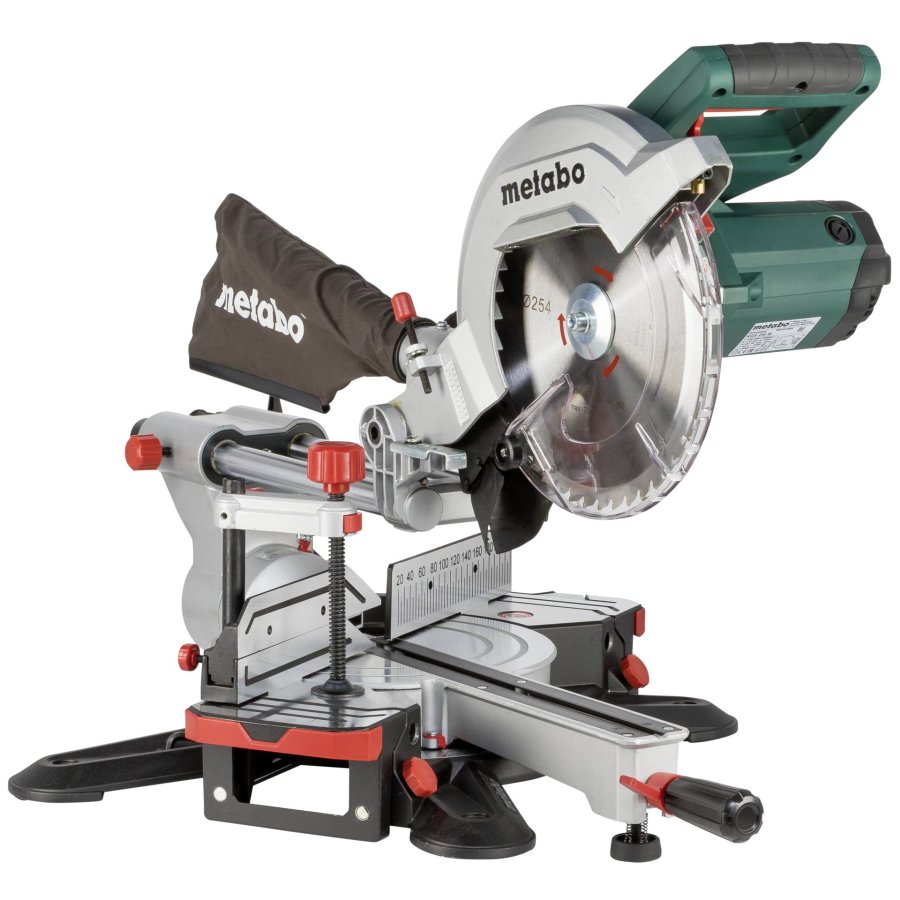

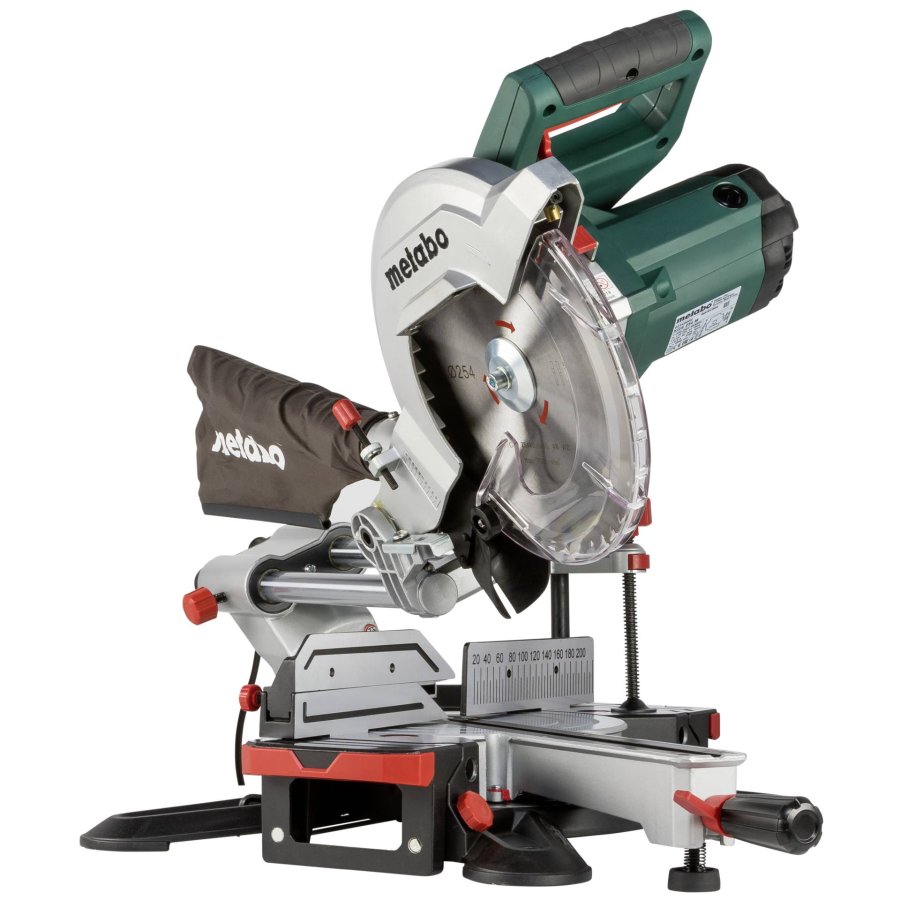

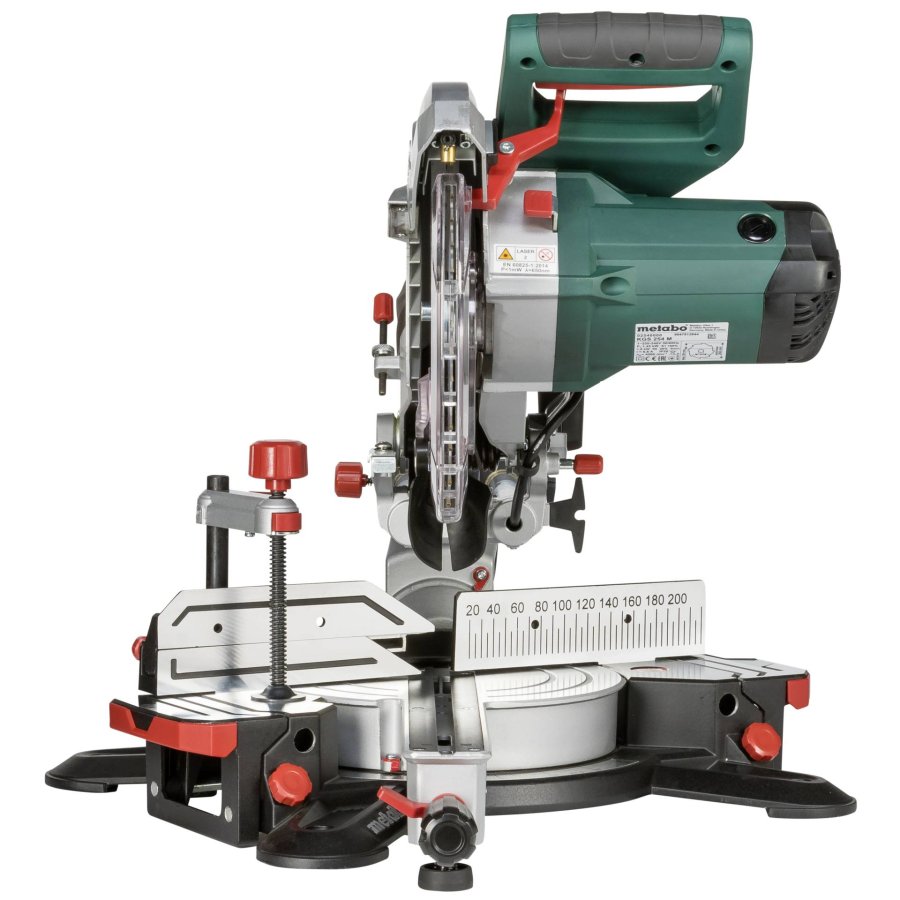

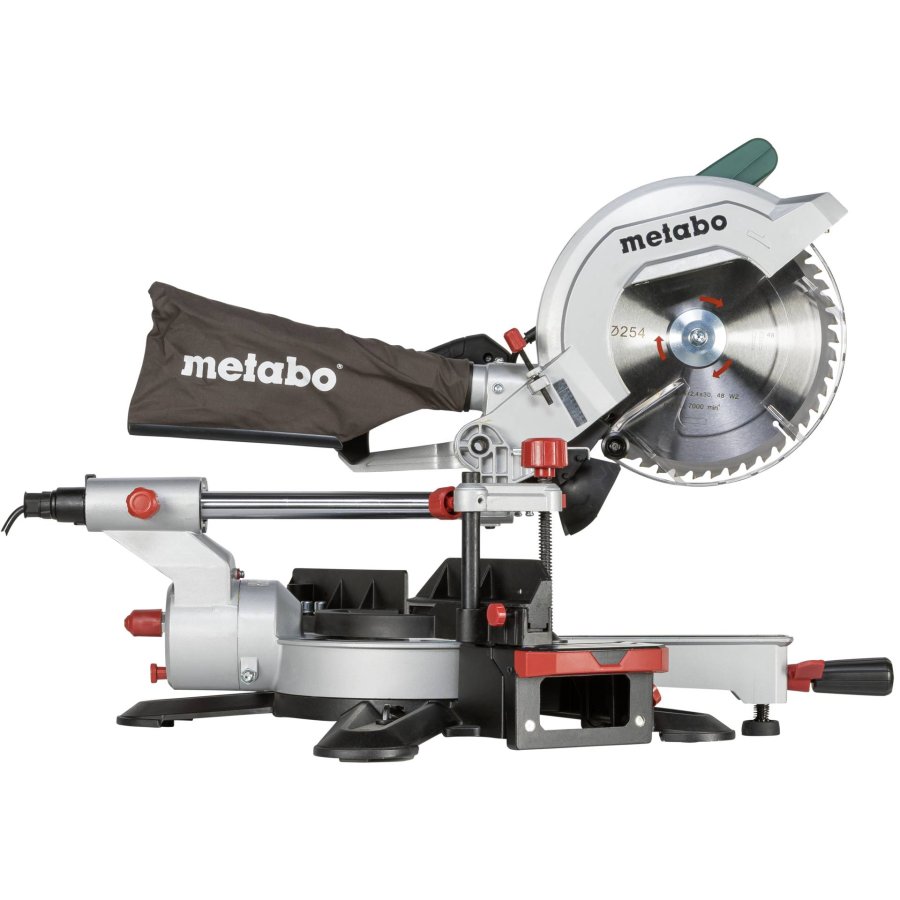

Metabo KGS 254 M Crosscut Saw

KGS 254 M cross-cut saw

Special features:

• Compact and lightweight, suitable for one-handed transport
• Sturdy die-cast aluminium construction for the highest demands
• Ergonomic carrying handles and saw head lock for easy transport
• Safe extraction with integrated chip collection funnel
• Sliding fences for safe sawing
• Material clamp for securing the workpiece from the top or front
• Depth stop for easy grooving
• Saw head can be tilted to the left with extra angle range for undercuts
• All scales and working elements intuitively visible and operable from the working area
• Precise and quick adjustment of common angles via locking points
• Pull function for large components
• Laser marking for precise visualisation of the cut line (mains operated, no additional batteries required)
• Infinitely extendable, removable table extensions for long panels, mouldings, etc.
• Powerful LED work light illuminates the cutting area (mains operated, no additional batteries required)
• Spindle lock for easy blade changes; no need to remove pendulum guard

Technical details:

• Support surface: 340 x 775 mm
• Max. Cutting width 90°/45°: 305 / 205 mm
• Max. Cutting depth 90°/45°: 92 / 47 mm
• Cutting capacity 90°/90°: 305 x 92 mm
• Cutting capacity 45°/45°: 205 x 47 mm
• Turntable setting left/right: 47 / 47 °
• Saw blade inclination left/right: 47 / 2 °
• Saw blade: 254 x 30 mm
• Nominal input power S1 100%: 1450 W
• Rated input power S6 20%: 1800 W
• Idle speed: 4500 /min
• Speed at nominal load: 3150 /min
• Cutting speed: 60 m/s
• Dimensions: 790 x 515 x 515 mm
• Weight: 16.3 kg
• Cable length: 2 m

Noise emission:

• Sound pressure level: 99 dB(A)
• Sound power level (LwA): 106 dB(A)
• Measurement uncertainty K: 3 dB(A)

Scope of delivery:

• 1x carbide saw blade (48 teeth)
• 2x integrated table extensions
• 1x material clamp
• 1x tool for changing the saw blade
• 1x chip bag
