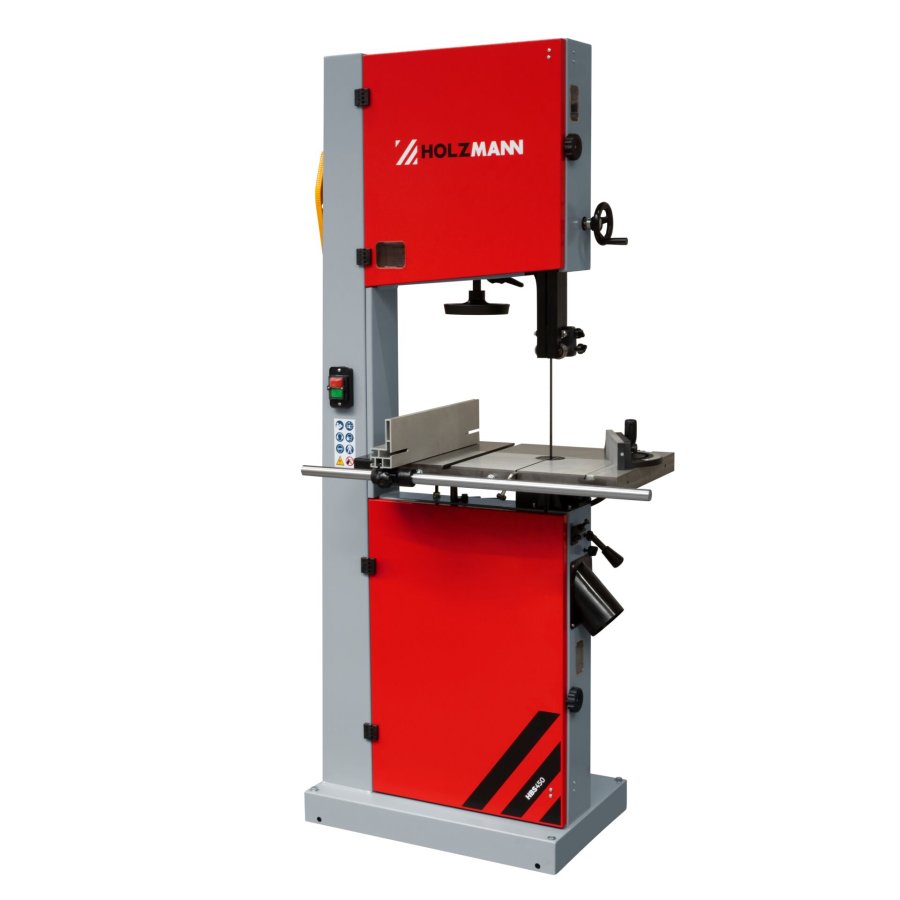

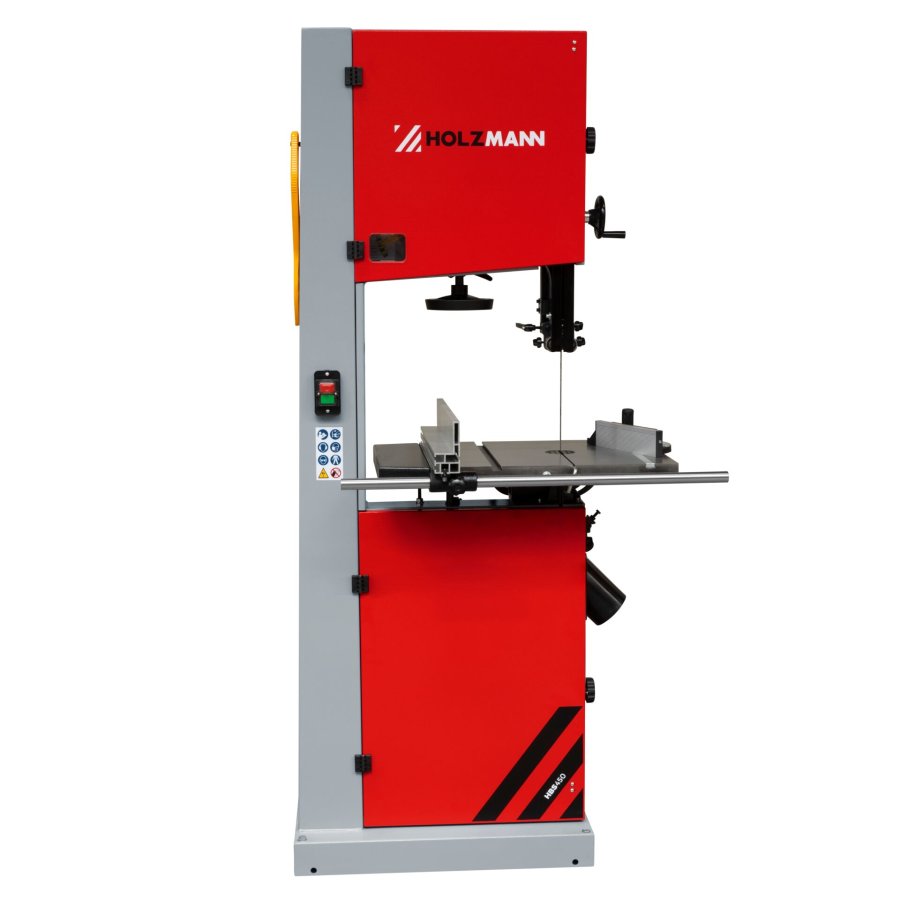

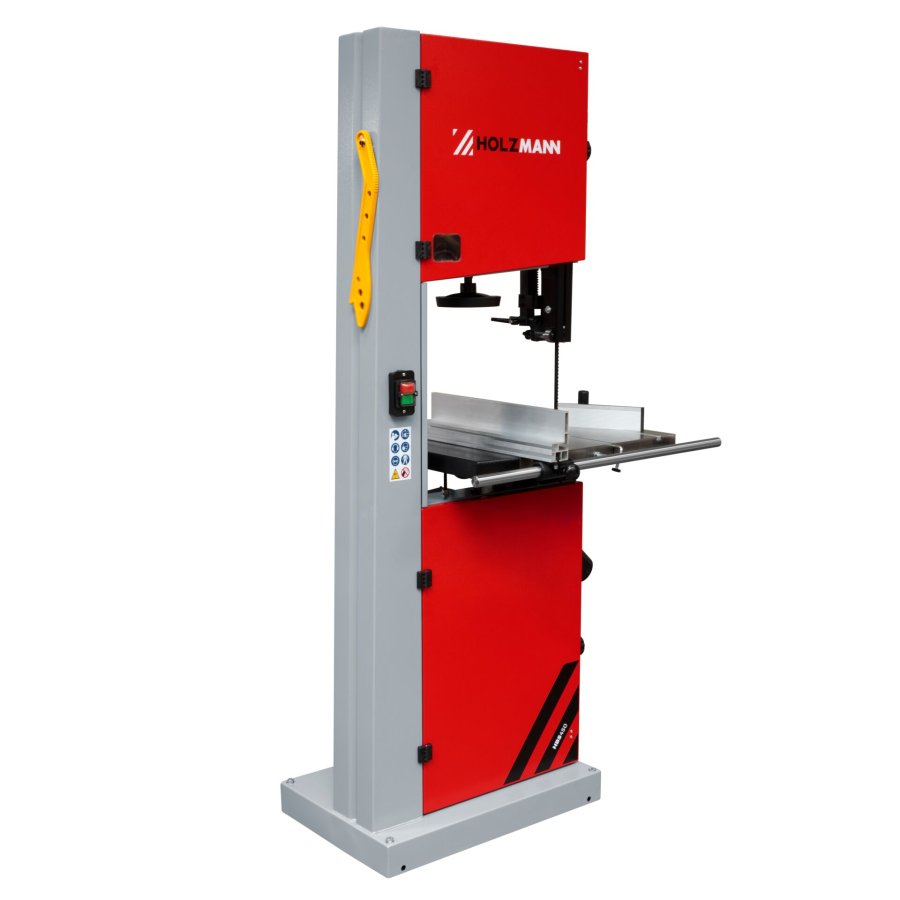

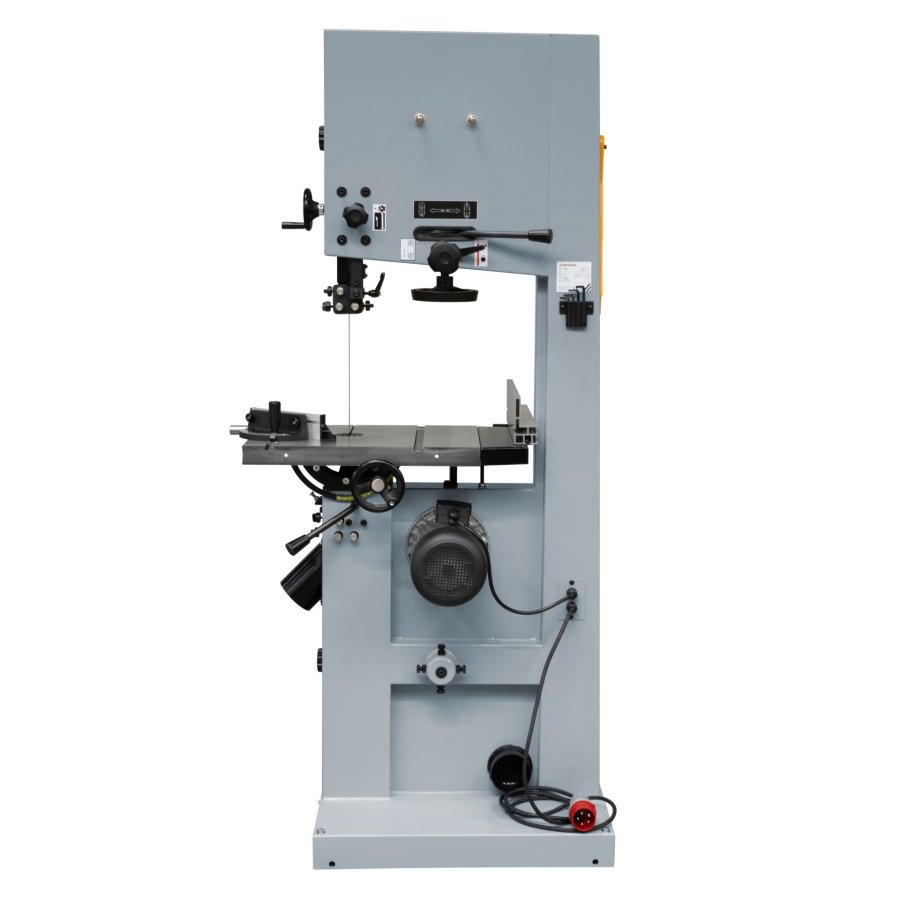

Holzmann HBS450 400V wood band saw
The HOLZMANN HBS450 wood band saw for cutting heights up to 330 mm, 2 saw blade speeds ideal for your wood workshop.
Features:

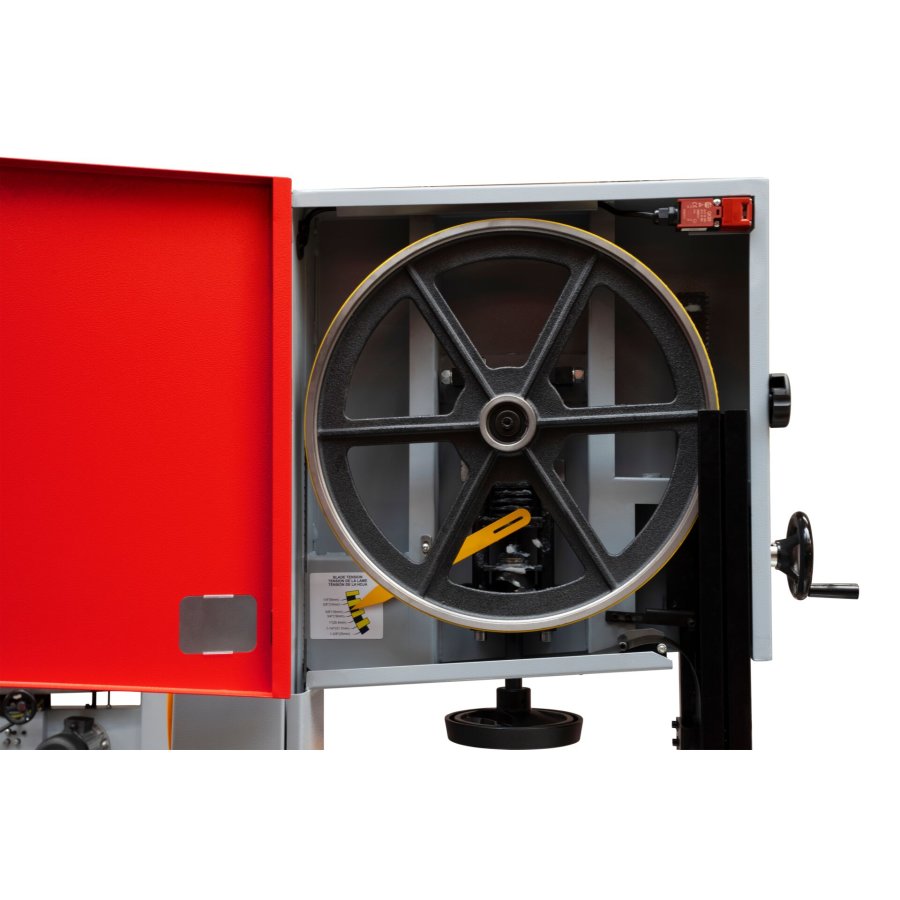

- Cast iron wheels Ø 450 mm
- Sturdy parallel fence in aluminium design

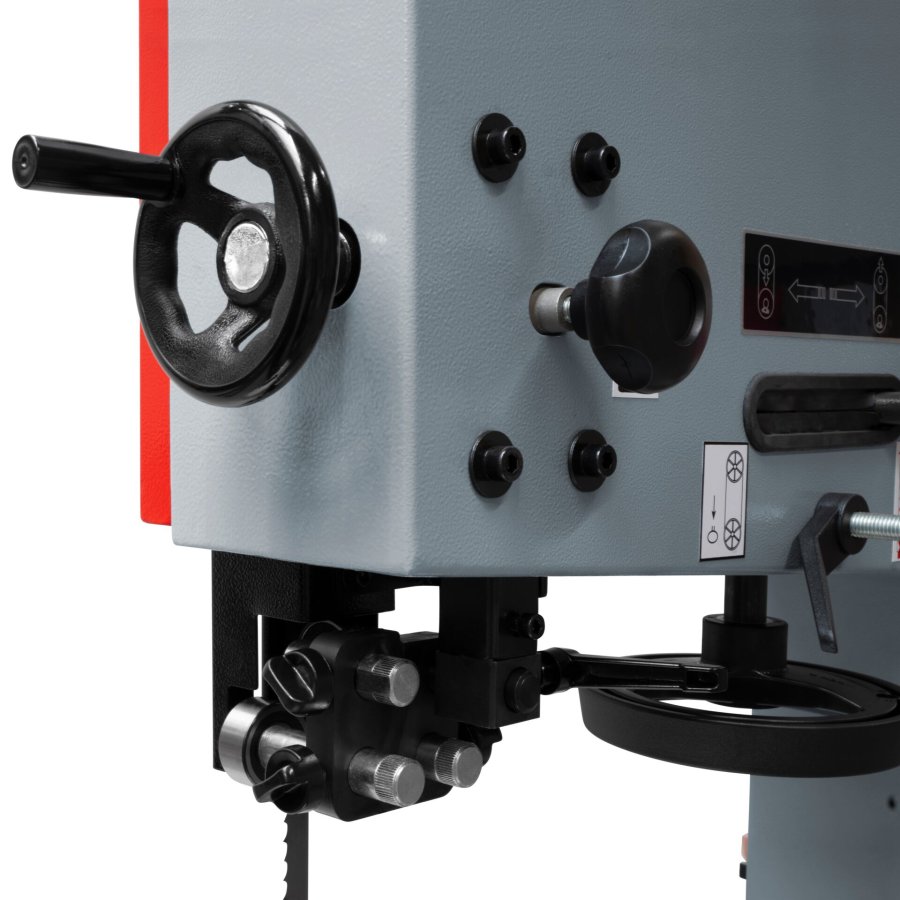

- Cutting height adjustment can be set quickly and easily via handwheel/rack and pinion combination
- Saw blade width from 6 mm to 33 mm possible
- Machine height: 191 cm
- 2 saw blade speeds (400 or 900 m/min)

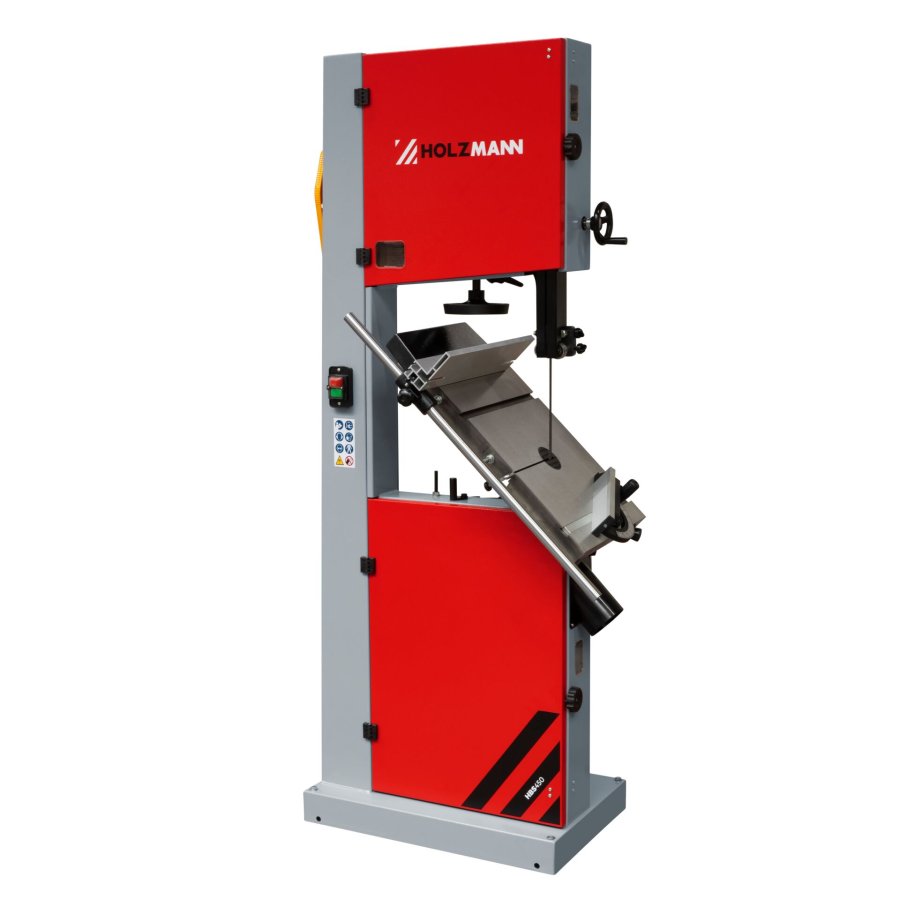

- Inclined table adjustment from -5° to +45° via toothed guide
- 2 extraction connections (Ø 100 mm)
- Note: Voltage: 400V (a 400V connection is required)
Technical data
- Power: 1500 watts
- Voltage: 400 V / 3 / 50 Hz
- Dimensions
- Projection: max. 447 mm
- Table size: 546 x 400 mm
- Table height: 960 mm
- Suction connection: 2x 100 mm diameter
- Installation dimensions: 958 x 664 x 1910 mm
- Cutting width at rip fence: 393 mm
- Saw blade: 3866 mm
- Saw blade width: 6 - 33 mm

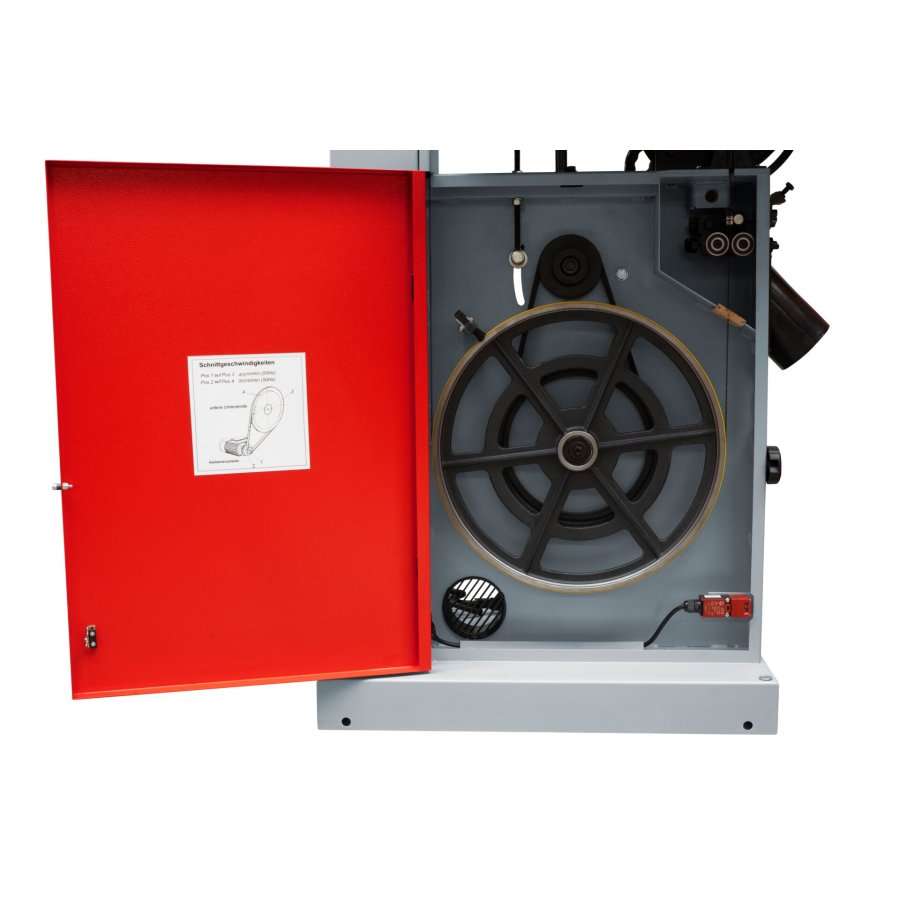

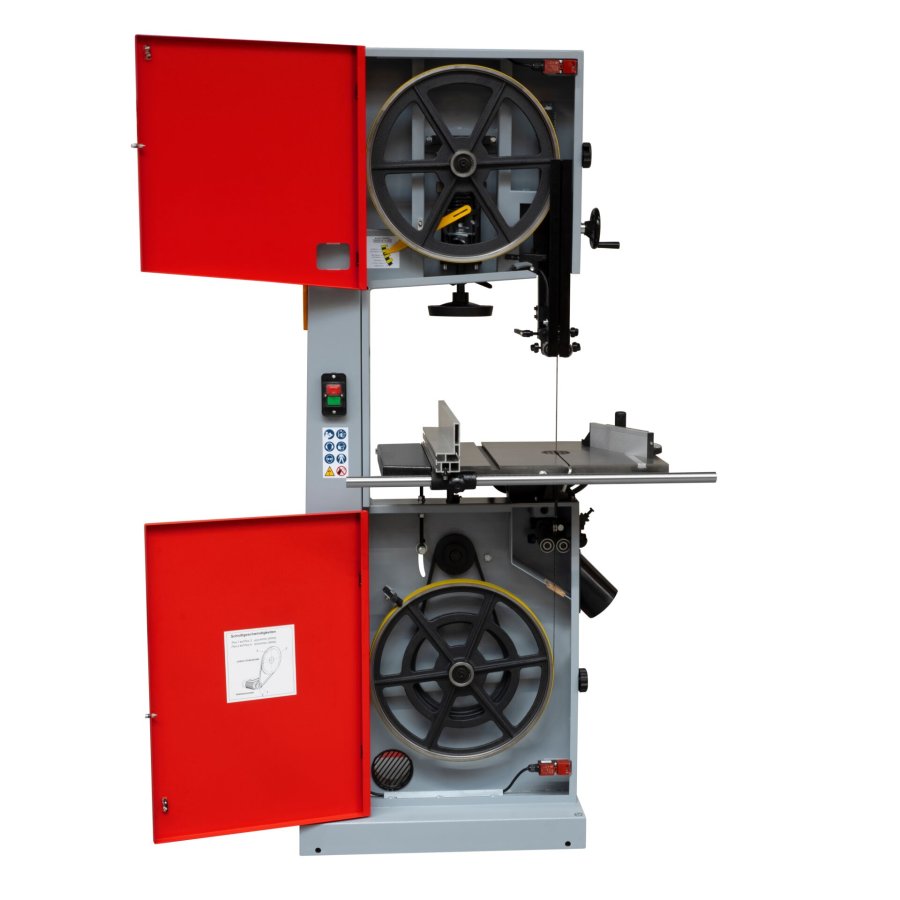

- Running wheel diameter: 450 mm
- Saw blade speed:
- Stage 1: 400 m/min
- Stage 2: 900 m/min
- Weight: approx. 161 kg
Please note:
Electrical connection work / installations may only be carried out by qualified specialist personnel.
