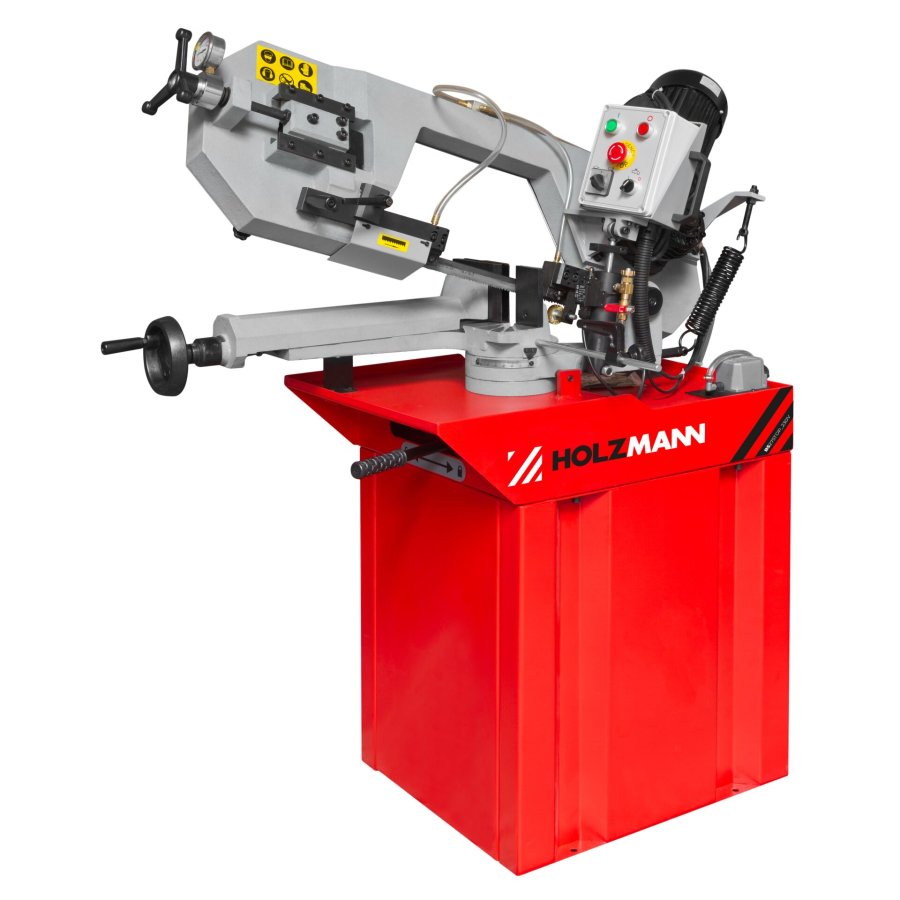

Holzmann BS275TOP 400V metal band saw
The HOLZMANN BS275TOP_400V metal band saw impresses with its solid construction and particularly precise cutting. This is ensured by the 5-point saw band guide as well as the infinitely adjustable lowering speed on the pressure cylinder and the torsion-resistant saw bar. It can be swivelled up to 60° and its design allows a maximum cutting height of 225 mm. The integrated coolant device protects the saw band and enables fast feed.
Features:
- Precise metal band saw in heavy cast design
- Powerful and durable 2-speed transmission drive

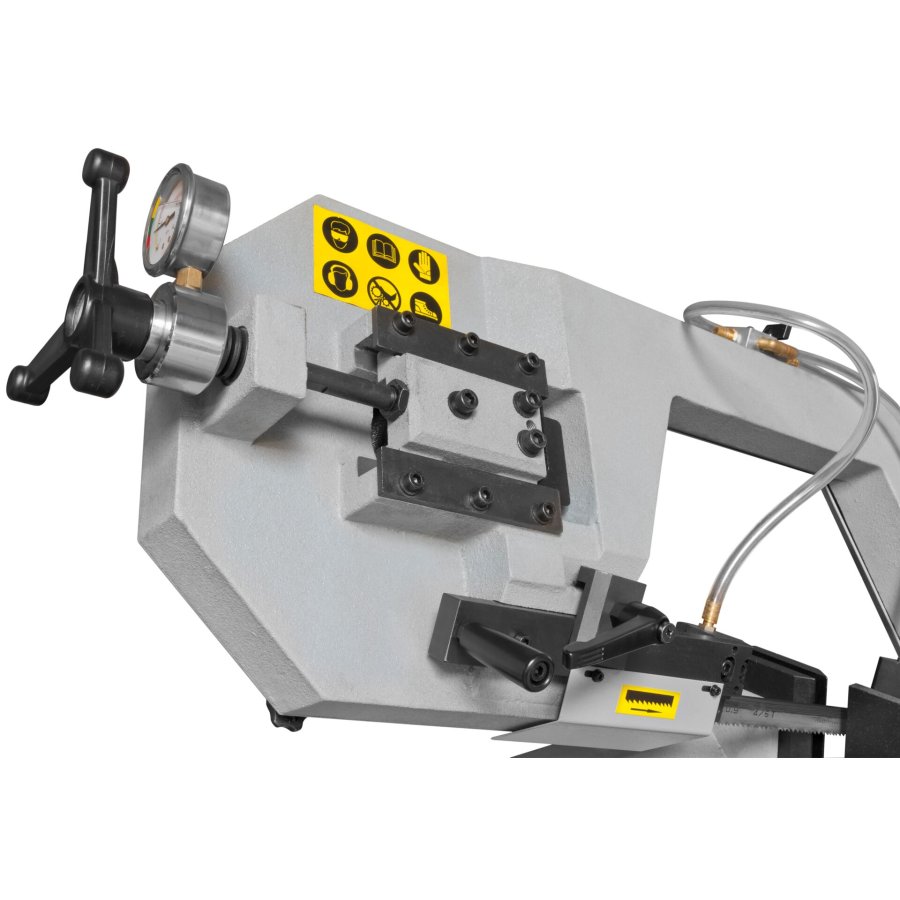

- Saw belt guide with quick adjustment and automatic end stop
- Robust vice made of grey cast iron with eccentric clamping system and workpiece stop

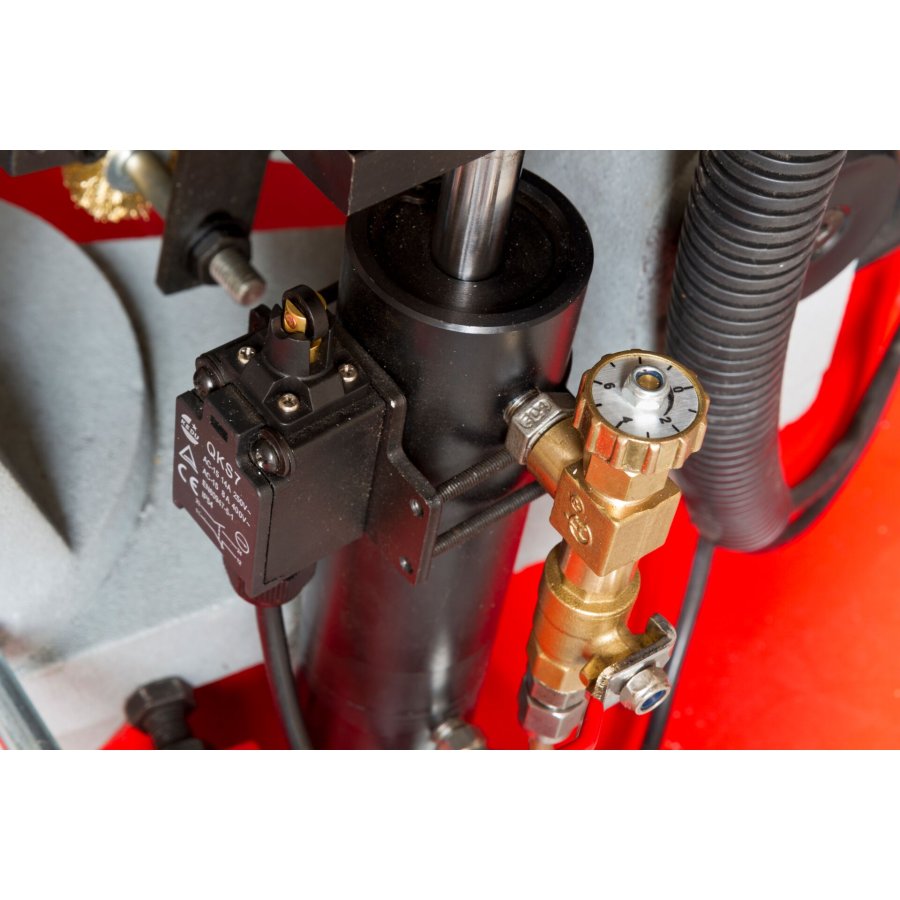

- Hydraulic counter-pressure cylinder for infinitely adjustable lowering speed

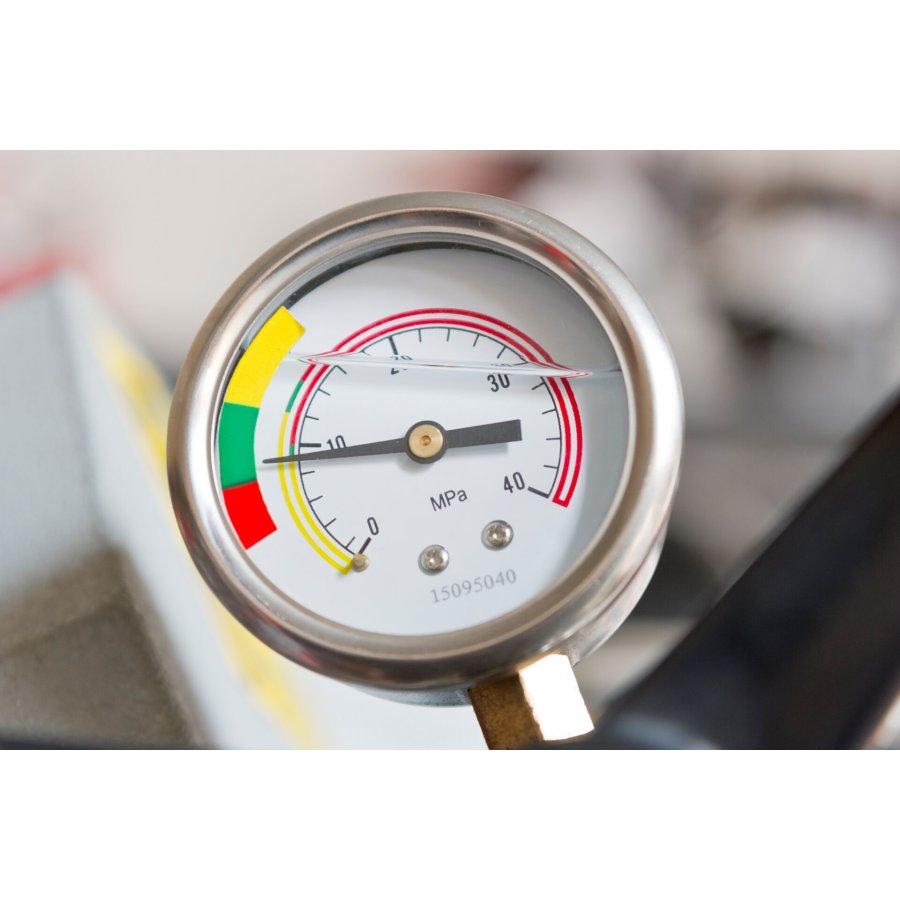

- Manometer for display of saw band tension
Technical data:
- Voltage: 400V (400V connection required)
- Power: 1.5 kW
- Swivel range: 0° - 60°
- Cutting capacity round O 90°: 225 mm
- Cutting capacity round 45°: 160 mm
- Cutting capacity round 60°: 100 mm
- Cutting capacity L x H 90°: 200 x 200 mm
- Cutting capacity L x H 45°: 160 x 160
- Cutting capacity L x H 60°: 100 x 100 mm
- Saw band: 2450 x 27 x 0.9 mm
- Saw band speed: 37.5 / 75 m/min
- Weight: 195 kg
Please note:
Electrical connection work / installations may only be carried out by qualified specialists.
