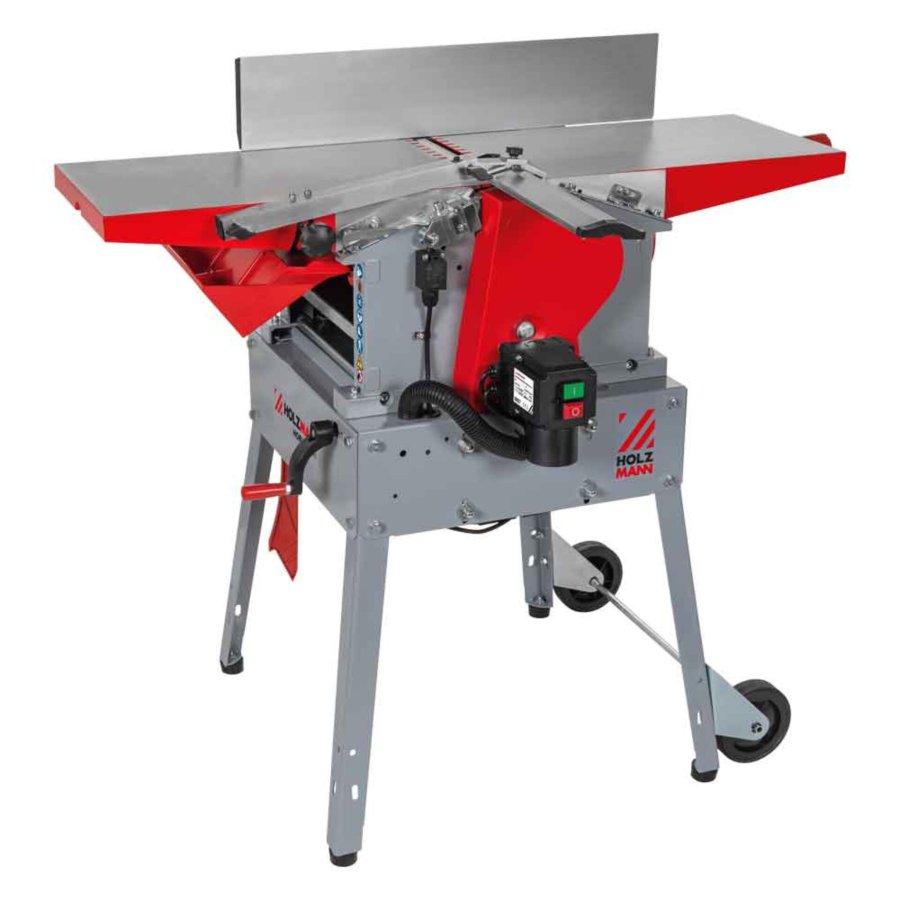

Holzmann HOB260MINI_230V Dressing Thickness Planer
The compact HOB260MINI planer with drive unit and reversible planer blade is a valuable addition to your wood workshop. With 260 mm of planing and thickness planer width as well as thickness planer feed, it enables the implementation of impressive projects.
Features:
- Compact planing/thickness planer
- Easy to convert from dressing planer to thickness planer
- Thick planer table made of solid grey cast iron
- Reversible planer knife
- Swivelling dressing stop 90°-45°
- With integrated chassis
Technical data:
- Dressing table size: 1040 x 260 mm
- Max chip removal: 3 mm
- Dressing stop: 1100 x 150 mm
- Swivel range of dressing stop: 90-45°
- Motor power S6: 2200 W
- Voltage: 230 V / 50 Hz
- Feed speed: 5 m/min
- Table height: 860 mm
- Suction connection: 100 mm
- Thickness planer table size: 400 x 260 mm
- Thickness planing max chip removal: 3 mm
- Pass-through height: 160 mm
- Planer shaft diameter: 63 mm
- Planing shaft speed: 6500 U/min
- Number of planer knives: 2
- Sound power level: 102.1 / 99.1 dB(A)
- Sound pressure level: 95.6 / 91.5 dB(A)
- Gross weight: 79.50 kg
