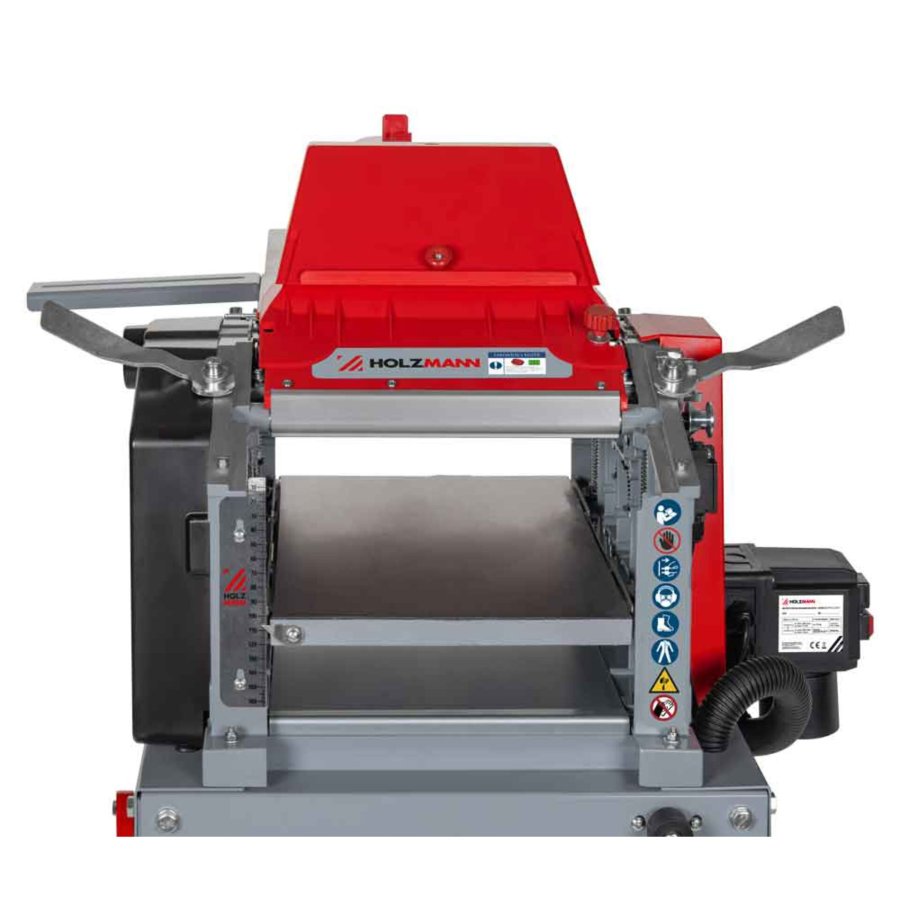

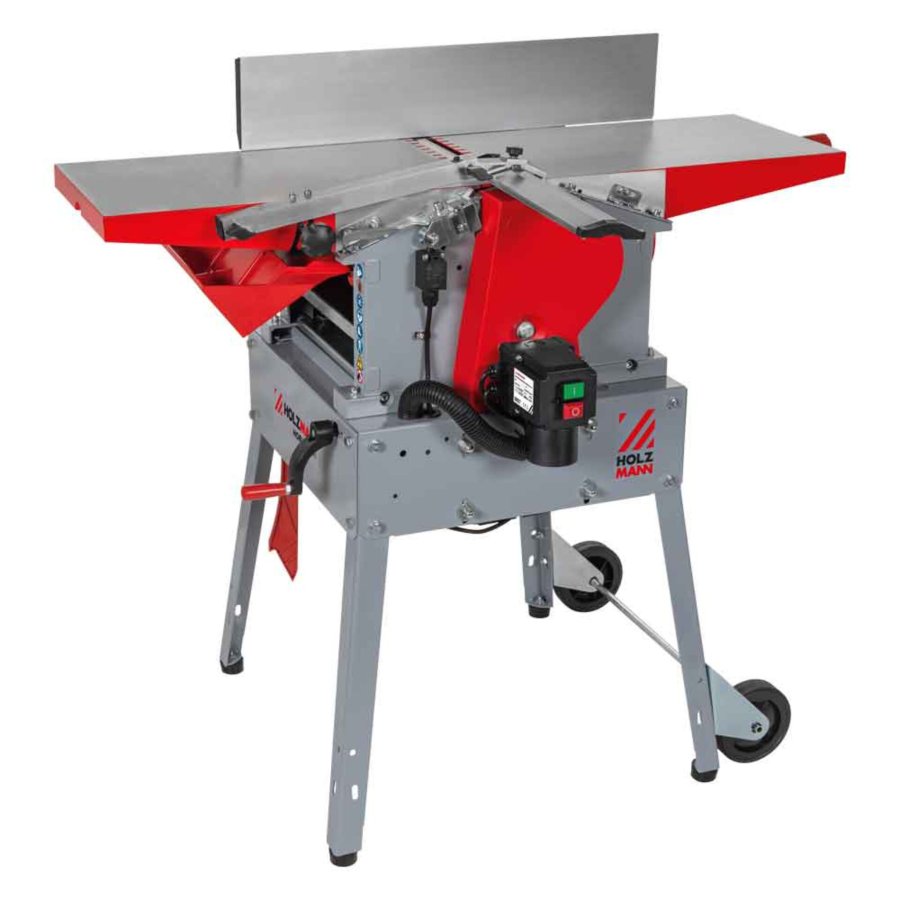

Holzmann HOB260MINI_400V Dressing Thickness Planer
The compact HOB260MINI planing machine with driving device, reversible planing knife should be stock in your wood workshop. With 260 mm dressing and thickness planer width, thickness planer feed great projects can already be implemented.
Features:
- Voltage: 400V (a 400V connection is required)
- Compact planing/thickness planer
- Easy to convert from dressing planer to thickness planer
- Thick planer table made of solid grey cast iron
- Reversible planer knife
- Swivelling dressing stop 90°-45°
- With integrated chassis
Technical data:
- Dressing table size: 1040 x 260 mm
- Max chip removal: 3 mm
- Dressing stop: 1100 x 150 mm
- Swivel range of dressing stop: 90 - 45°
- Voltage: 400V / 3 / 50Hz
- Feed speed: 5 m/min
- Motor power S6: 2800 W
- Table height: 860 mm
- Suction connection: 100 mm
- Thickness planer table size: 400 x 260 mm
- Thickness planing max chip removal: 3 mm
- Pass-through height: 160 mm
- Planer shaft diameter: 63 mm
- Planing shaft speed: 6500 U/min
- Number of planer knives: 2
- Sound power level in dB(A): 102.1 / 99.1
- Sound pressure level in dB(A): 56.6 / 91.5
- Net weight: 72 kg
- Please note that:
- Electrical connection work / installations may only be carried out by qualified specialist personnel.
