Beskrivelse

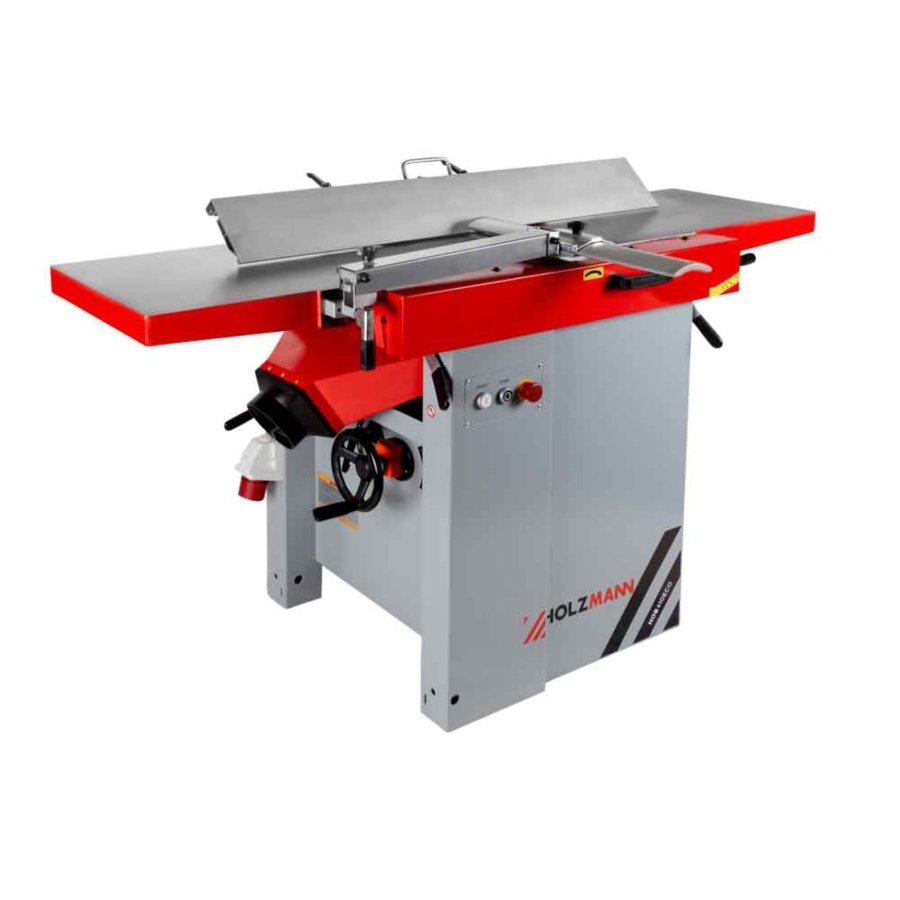

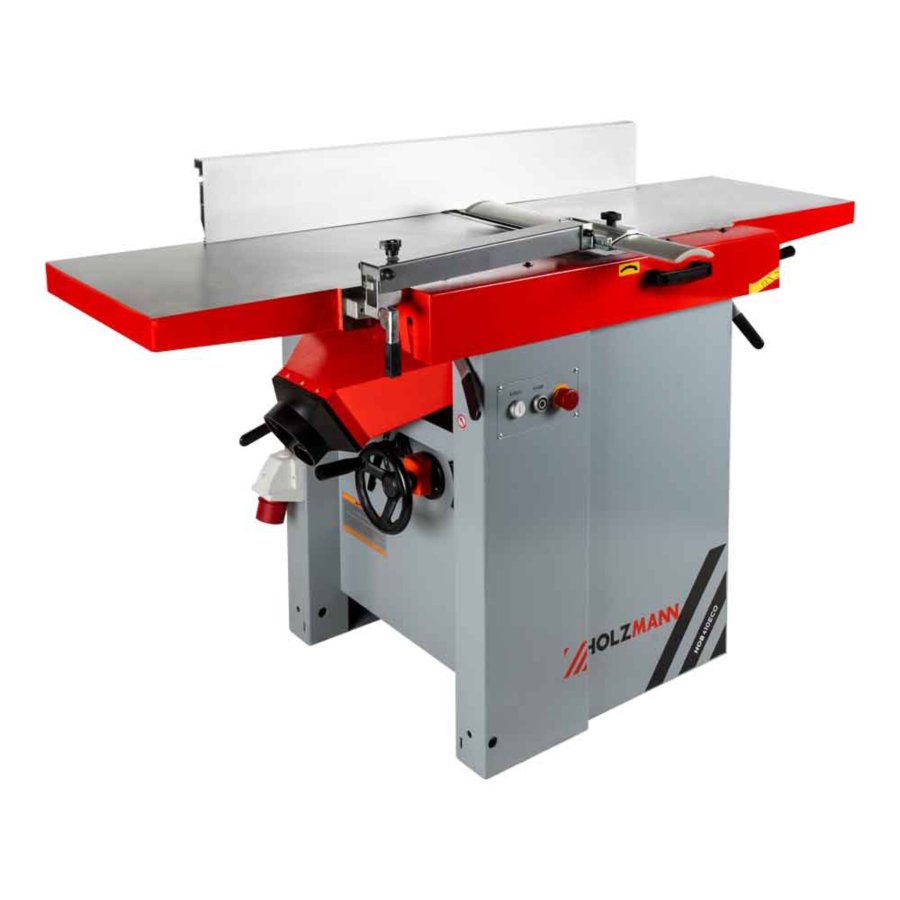

Holzmann HOB410ECO_400V planer
The HOLZMANN HOB410ECO_230V dressing planer with 410 mm planer blade length, dressing planer function and optional extension table should not be missing in your woodworking. Very simple conversion from dressing to thickness planer or thickness planer to dressing.
Features:
- Voltage: 400V (a 400V connection is required)

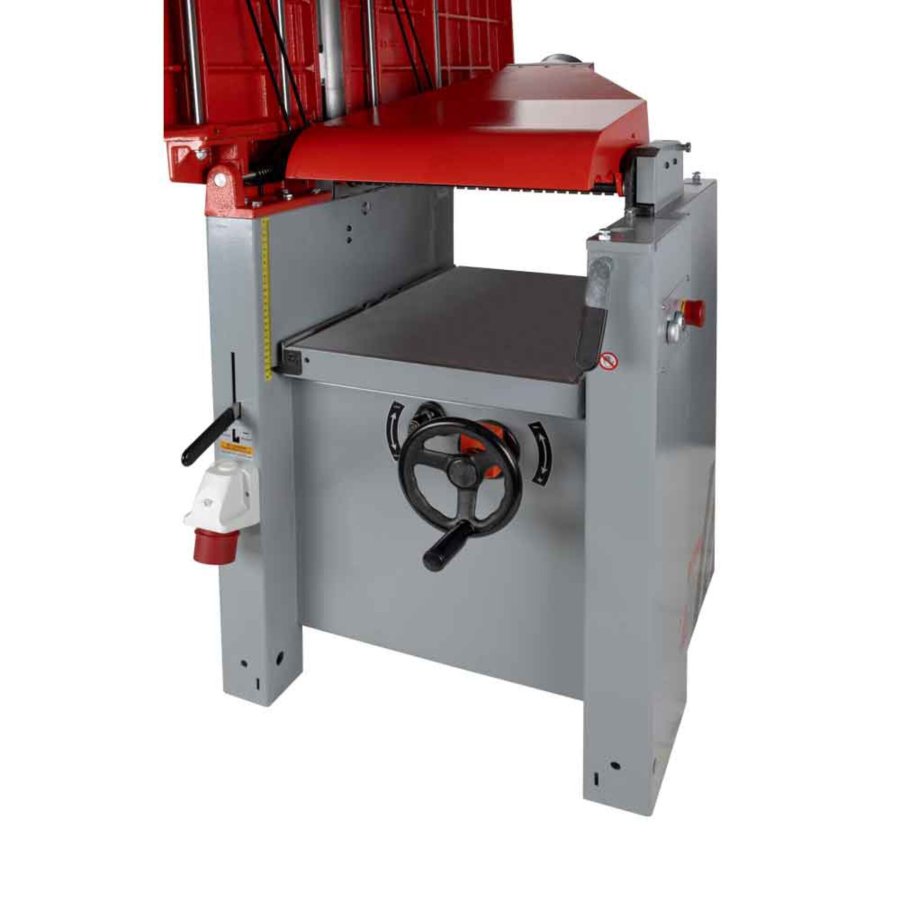

- Easy-to-use central height adjustment of the thickness planer table including counting system
- Sharpable stripe knives
- Spiral-toothed feed roller
- Dressing stop swivel

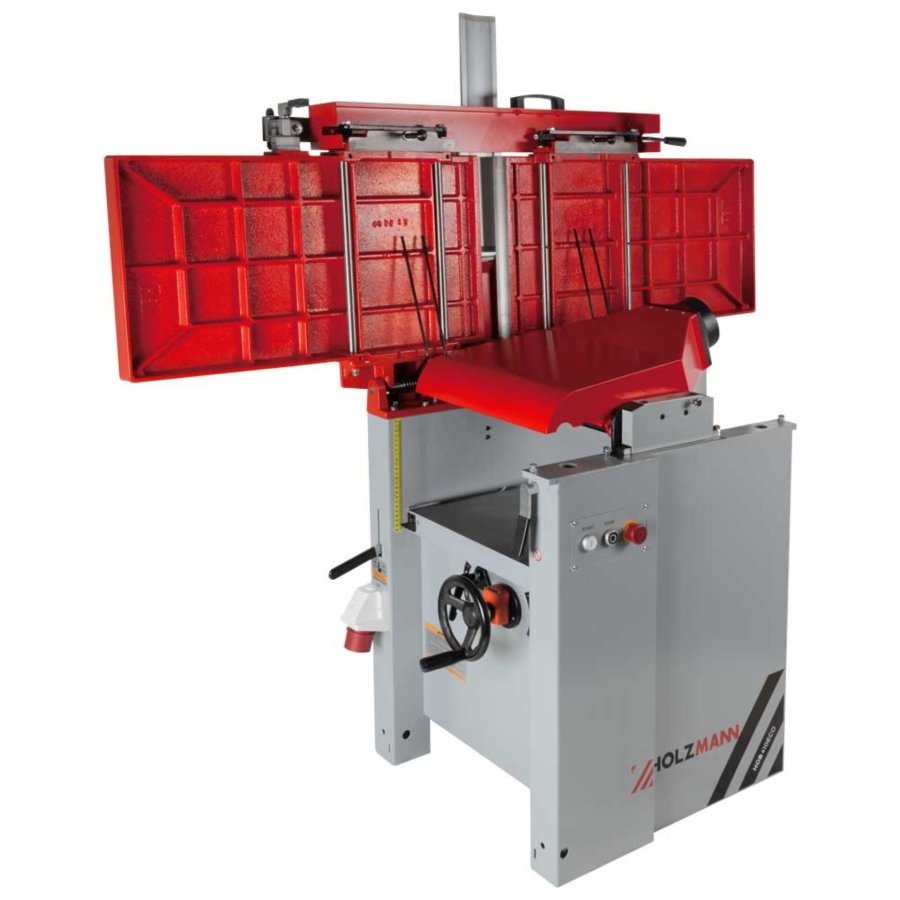

- Easy to change (the entire dressing table can be folded up)
Technical data:
- Dressing table size: 1660 x 410 mm
- Dressing table height: 850 mm
- Max chip removal: 4 mm
- Dressing stop: 1100 x 150 mm
- Swivel range of dressing stop: 0-45°
- Motor power S1: 4000 W
- Voltage: 400V / 3 / 50 Hz
- Feed speed: 7 m/min
- Installation dimensions: 1710 x 740 x 1150 mm
- Table size: 650 x 407 mm
- Thickness planing max chip removal: 3 mm
- Pass-through height: 225 mm
- Planing shaft diameter: Ø 70
- Planing shaft speed: 5500 U/min
- Number of planer blades: 3
- Sound power level: 107 dB(A)
- Sound pressure level: 89 dB(A)
- Net weight: 295 kg
