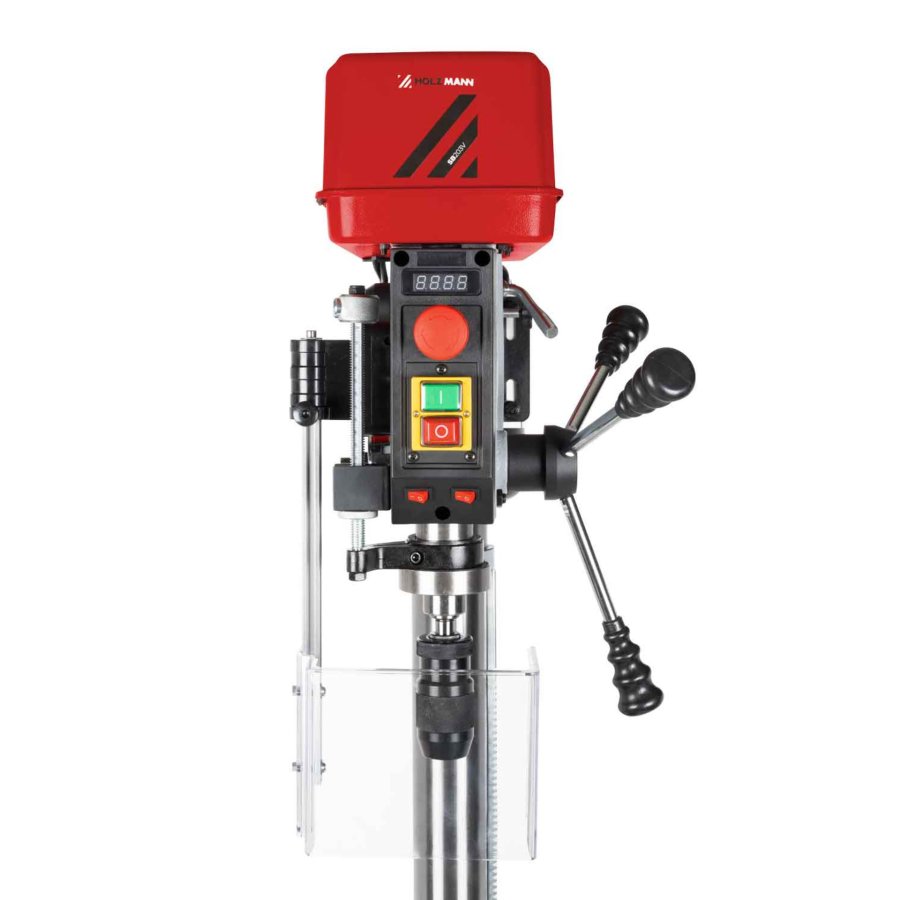

Holzmann SB203V_230V stand drilling machine
The HOLZMANN stand drilling machine SB203V_230V is equipped with vario gear, centering laser, height-adjustable drilling table, MK2 mounting and a quick-action chuck B16. In this compact version placed directly on your work table / workbench and you can start working.
Features:
- Rigid drilling column with polished surface
- Tiltable (+/- 45°) drilling table with rack height adjustable
- Practical three-arm lever with drilling depth scaling
- Collapsible quick-release chuck cover made of acrylic glass
- Drill depth stop

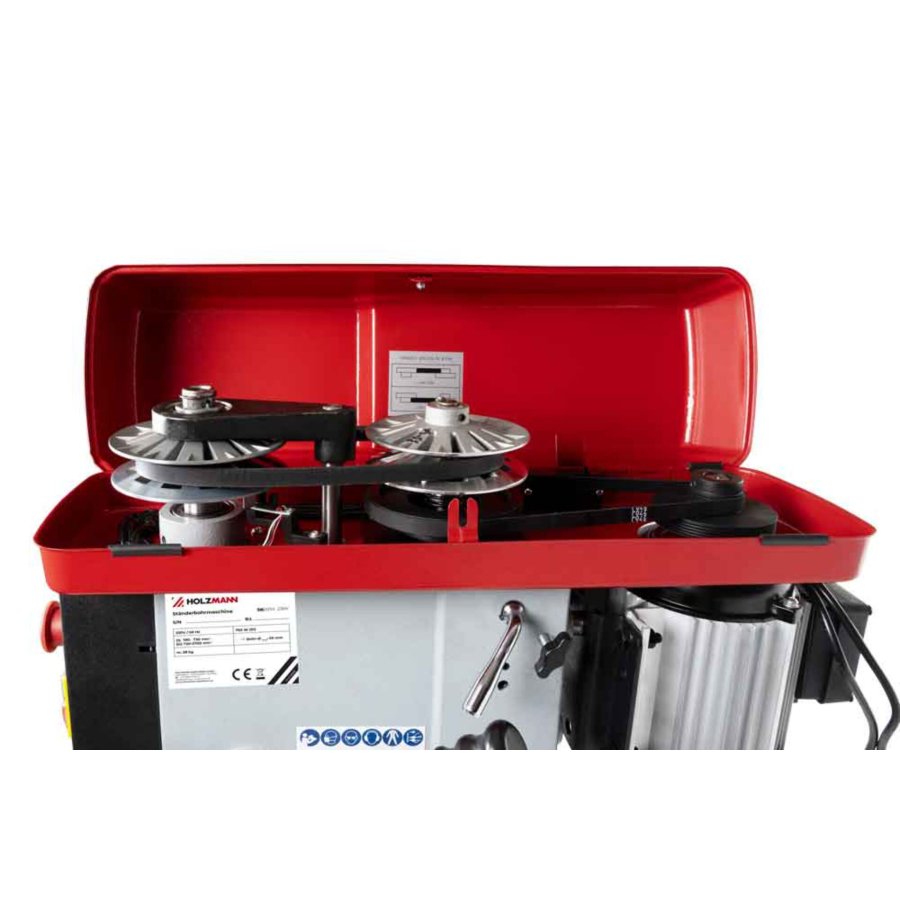

- Vario gearbox selectable 2-stage speed range (I): 190-730 min-1 (II): 720-2700 min-1 via belt change
- Centering laser + LED working light
Technical data:
- Motor power S1: 750 W
- Voltage: 230 V / 50 Hz
- Cable length: 1.8 m
- Reach: 190 mm
- Table size: 290 x 290 mm
- Installation dimensions: 368 x 680 x 1125 mm
- Max drilling capacity steel: Ø 20 mm
- Drilling spindle speed:: (I) 190 - 730 (II): 720-2700 U/min
- Pin stroke: 120 mm
- Max distance spindle-table: 417 mm
- Distance spindle-base plate: 640 mm
- Column diameter: Ø 73 mm
- Base plate: 500 x 290 mm
- T-slot size: 16 mm
- Max table load: 25 kg
- Drill spindle mount: MK2 / MT2
- Sound pressure level: < 85 dB(A)
- Net weight: 61.50 kg
