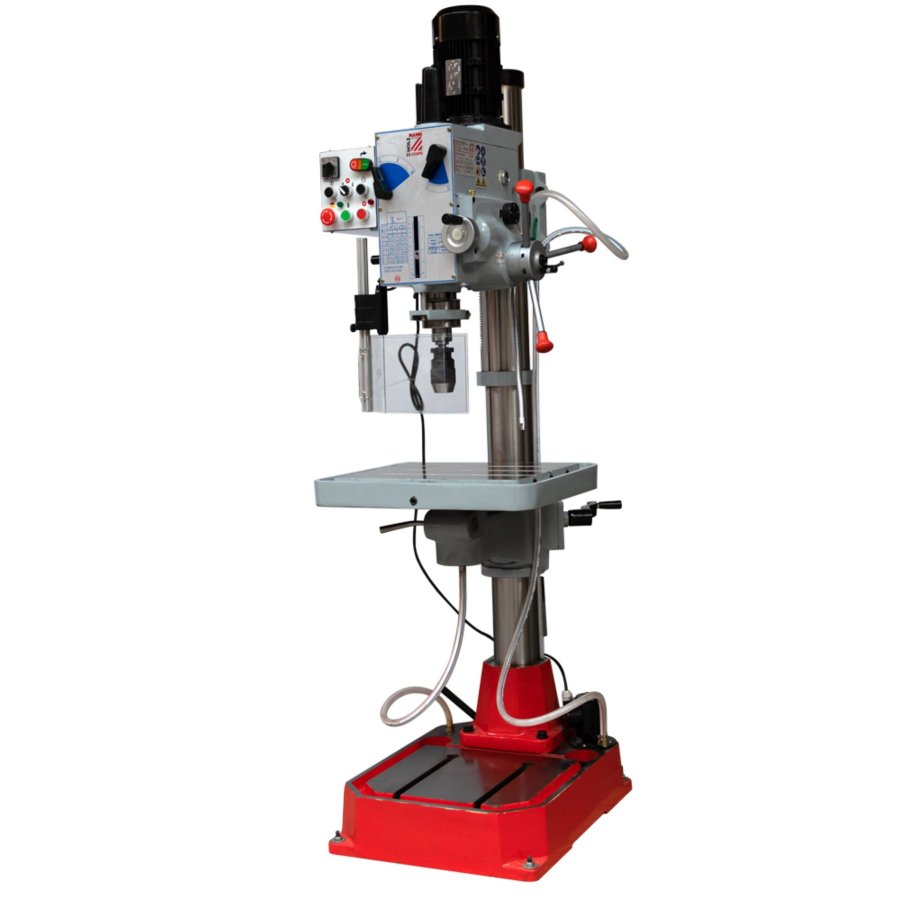

Holzmann ZS50APS_400V gear drilling machine
Features:
- Voltage: 400V (a 400V connection is required)
- 2-stage motor therefore large speed range
- Disconnectable automatic vertical feed with 3 speeds 0 - 0.12 - 0.18 - 0.25mm/U
- Large rotating and height-adjustable casting table for machining heavy workpieces
- T-slot guides (14mm) in the drilling table allow fixing of vices etc.
- Coolant system as standard
- Extra wide gear gears
- Maximum flexibility due to rotatable and height-adjustable drill head
- With automatic thread cutting device and left- right-hand movement
- Oil bath gearbox with ground and hardened gear wheels
- Solid base plate for good stability
- Powerful 2-stage motor ensures high drilling performance
- Rigid drilling column with polished surface
- Collapsible acrylic glass chuck cover
- Pinolenfeinstellung via hand wheel
Technical data:
- Motor power S1: 1300 / 1800 W
- Voltage: 400V
- Cable length: 2.5 m
- Table size: 550 x 480 mm
- Reach: 260 mm
- Max height: 2150 mm
- Drill spindle mount: MK4 / MT4
- Pin stroke: 110 mm
- Column diameter: 115 mm
- Distance spindle-base plate: 1200 mm
- Max distance spindle-table: 750 mm
- Max drilling capacity steel: ø 32 (M20)
- Max drilling capacity cast in mm: ø 40 (M24)
- Drill spindle speed: 95-3200 U/min
- Sound power level: 95 dB(A)
- Sound pressure level: 85 dB(A)
- Net weight: 390 kg
Please note that:
Electrical connection work / installations may only be carried out by qualified specialist personnel.
