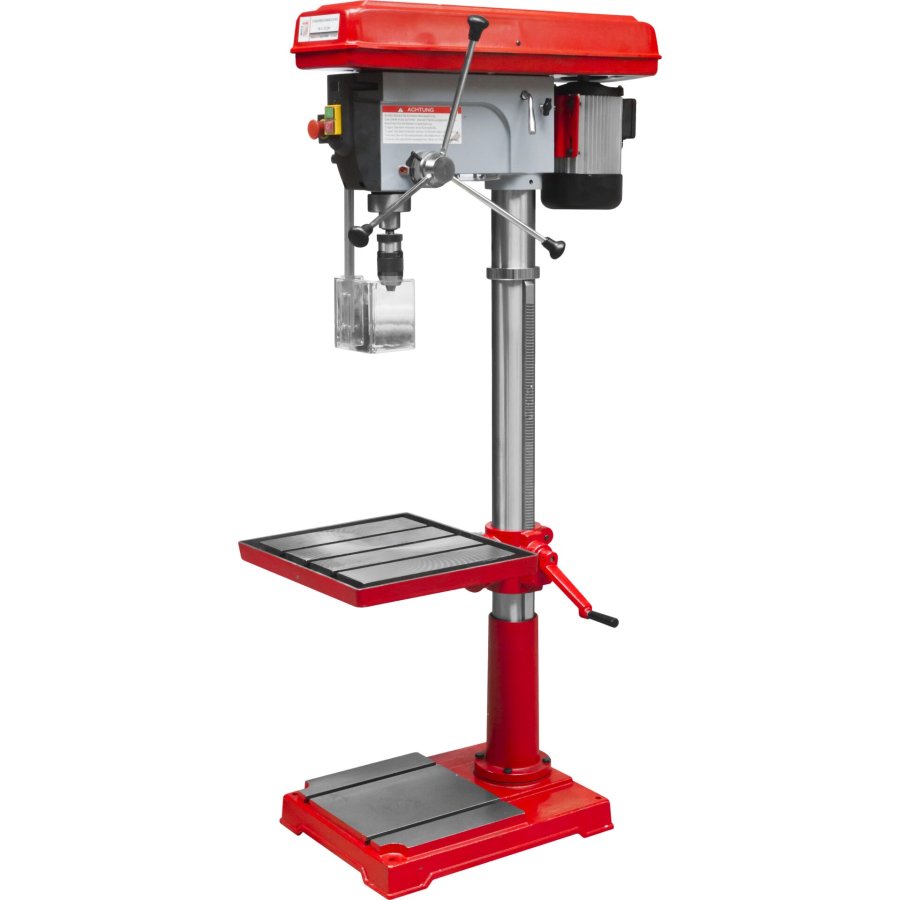

Holzmann SB4132SM 400 V Drill Press
- left/right rotation 2- step motor
- speed range 60-3480min-1
- features solid, polished base with T-nuts
- aluminum motor according IP54
- torsion-resistant, solid and polished steel column
- the worktable is tiltable from-45° to +45° and rotates 360° around table center and column
- spindle protection cover
- adjustable drill depth stop with scale for accurate drill depth control
- selection switch for CW/CCW-rotation
- 2-step motor
Included in delivery: automatic chuck 1-16mm, B18
Tchnical Details:
- motor power s6 in W: 1500/2200
- motor power s1 in W: 700/1100
- voltage: 400V (A 400V connection is required)
- total dimensions: 570 x 870 x 1710 mm
- table size: 475 x 420 mm
- outreach: 257 mm
- max. height: 1710 mm
- max. drilling performance: 32 mm
- base: 580 x 450 mm
- spindle stroke: 120 mm
- distance spindle-base: 1160 mm
- max. distance spindle-table: 680 mm
- drilling spindle collet: MK4 / MT4
- drilling spindle speed in min-1: (24) 60-3480
- column diameter: 90 / 2,5 mm
Please note:
Electrical connection work / installations may only be carried out by qualified specialists.
