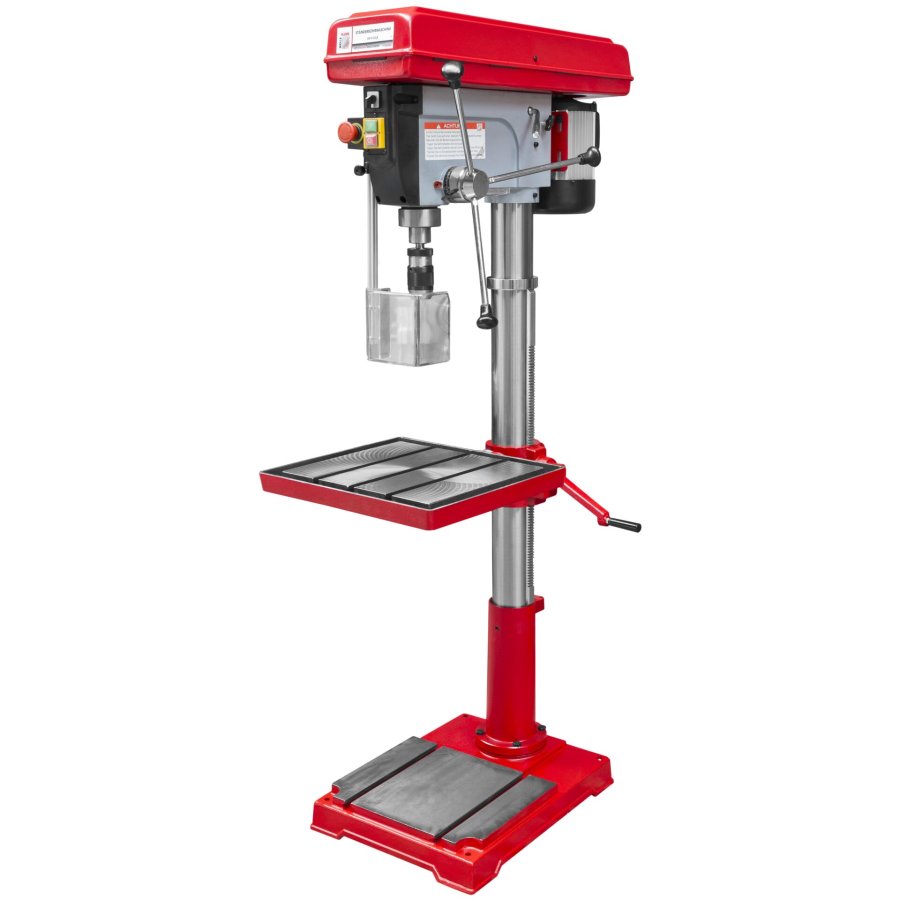

Holzmann SB4132LR 400V pillar drill
Features:
- Solid base plate for good stability
- Aluminium motor to IP54
- Rigid drill column with polished surface
- Rotatable drilling table height-adjustable via toothed rack
- Practical three-arm lever with drilling depth scale
- Fold-away quick-action chuck cover made of Plexiglas
- Drilling depth stop
Scope of delivery:
- Quick-action chuck 1-16mm, B18
Technical data:
- Motor power S6 in W: 1500/2200
- Motor power S1 in W: 700/1100
- Voltage: 400V (a 400V connection is required)
- General dimensions
- Installation dimensions: 570 x 870 x 1710 mm
- Table size: 475 x 420 mm
- Projection: 257 mm
- Max. Max. height: 1710 mm
- Technical specification
- Max. Drilling capacity: 32 mm
- Base plate: 580 x 450 mm
- Spindle stroke: 120 mm
- Distance between spindle and base plate: 1160 mm
- Max. Spindle-to-table distance: 680 mm
- Drill spindle holder: MK4 / MT4
- Drill spindle speed in min-1: (24) 60-3480
- Column diameter: 90 / 2.5 mm
- Net weight: 120 kg
Please note:
Electrical connection work / installations may only be carried out by qualified specialist personnel.
