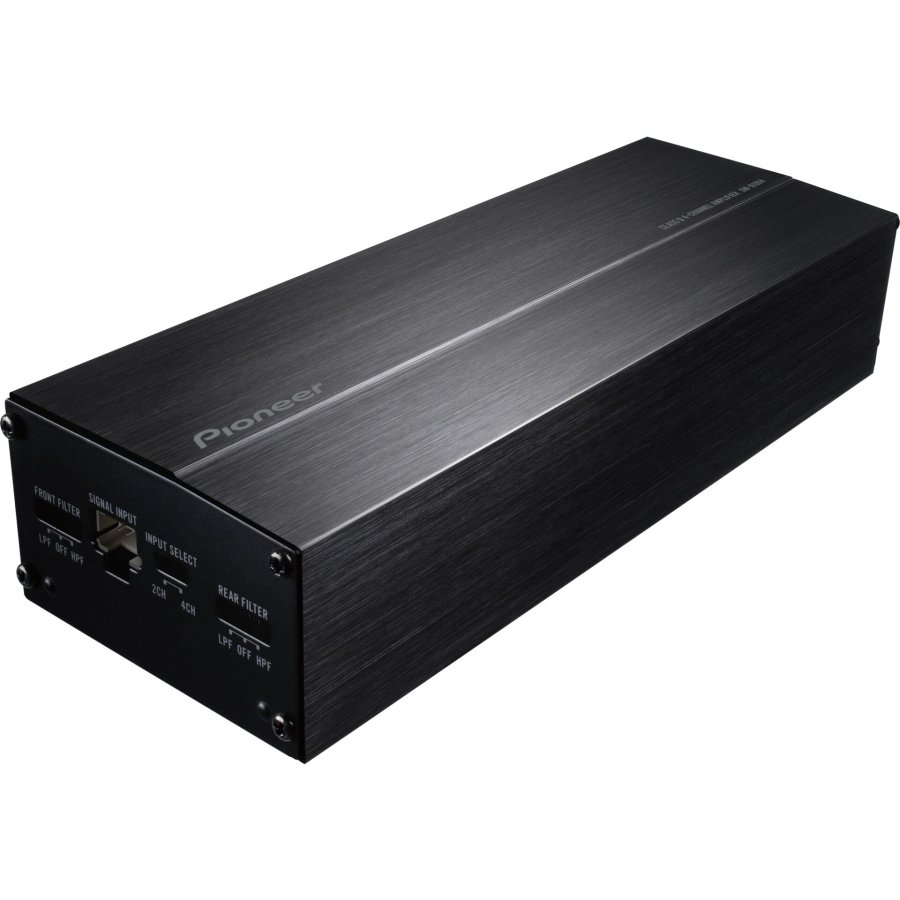

Bridgeable 4-channel amplifier (1000 W)
Give in to your craving - the craving for more power. With Pioneer's bridgeable amplifiers, you get exactly what you want: pure, clean, distortion-free power and outstanding sound.
The GM-A6704 makes your system shine, but remains rather cool itself. A technical marvel that will inspire you to the core.
Features:
- Bass control: 50 Hz; 0-12 dB
- TPF: 40-500 Hz (-12 dB/oct)
- HPF: 40-500 Hz (-12 dB/oct)
- Speaker inputs: screw terminals
- Speaker input level: 3 - 26 V
- Max. current power consumption: 31 A
- Maximal power input: 1000 W (bridged) or 4 x 170 W (4 Ω) or 4 x 250 W (2 Ω)
- Four channel
- CEA 2006 power (THD + N = 1%): 4x 60 W (4 Ω)
- Continuous output power (RMS): 4x 60 W (4 Ω) or 4x 95 W (2 Ω) or 2x 190 W (4 Ω bridged)
- Variable TPF
- Load impedance functionality: 2-8 ohm (stereo)
- Frequency response: 10 Hz ~ 70 kHz (+0dB , -3dB)
- Distortion < 0.05 %
- Signal-to-noise ratio: > 95 dB
- Connections: High voltage output 300 mV - 6.5 V
- Audio: Variable HPF
- Housing dimensions (W x H x D): 35.6 x 6.0 x 21.5 cm
- Device weight: 2.2 kg
