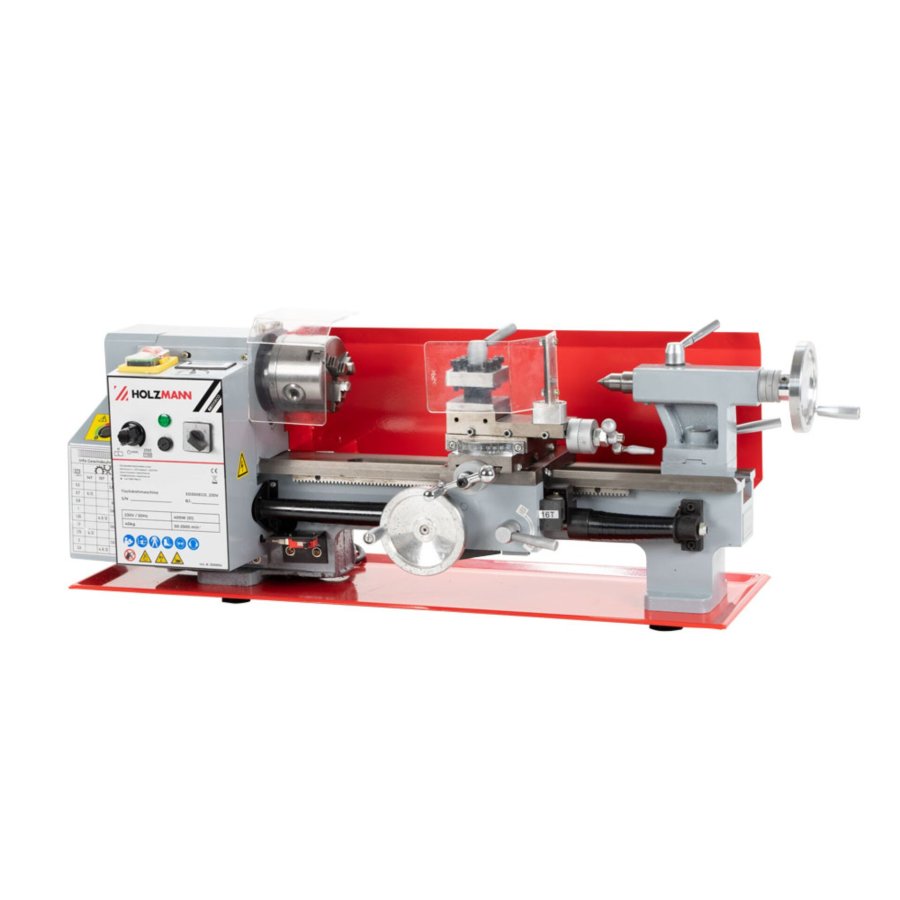

Holzmann ED300ECO 230V table lathe
The HOLZMANN ED300ECO_230V table turning machine is predestined for metal turning work in DIY with its compact design, equipped with guide screw for thread cutting or automatic and model construction area and the perfect entry-level model in the field of machining technology.
Features:
- Do it yourself model with compact design

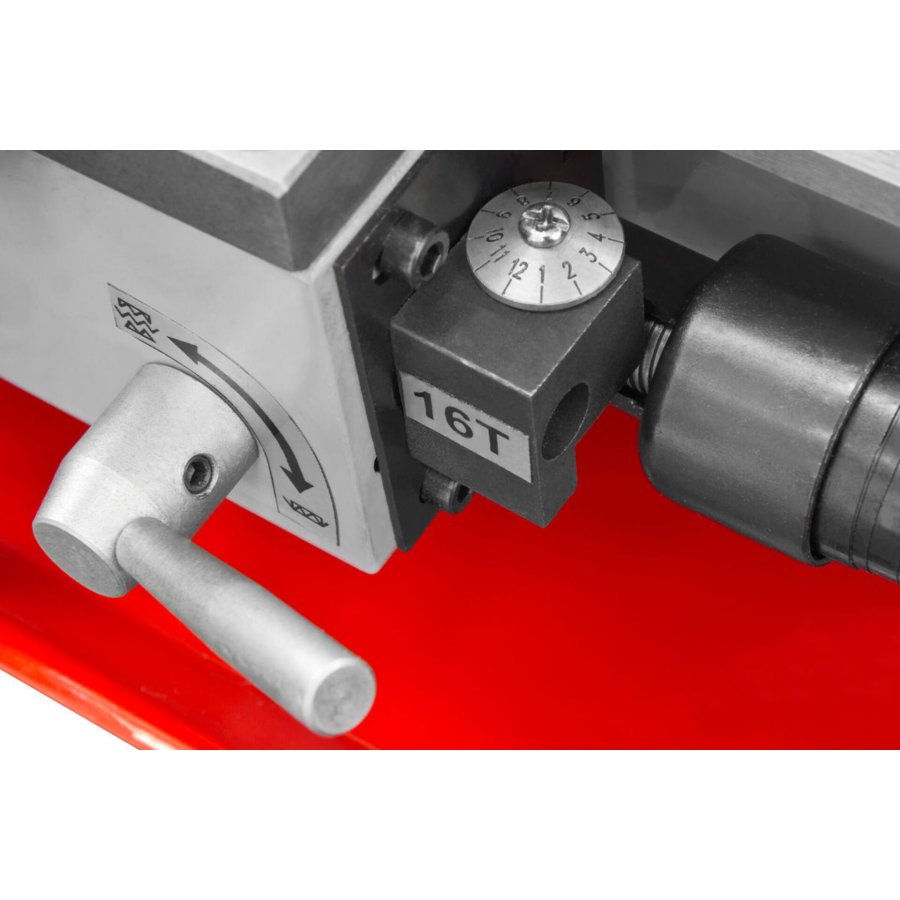

- With guide screw for thread cutting or automatic longitudinal turning
- Prism bed guides inductively hardened and precision ground
- High concentricity of the main spindle
- Infinitely variable speed
- Standard supplied metal change wheels for large thread cutting range
- Powerful motor with undervoltage release

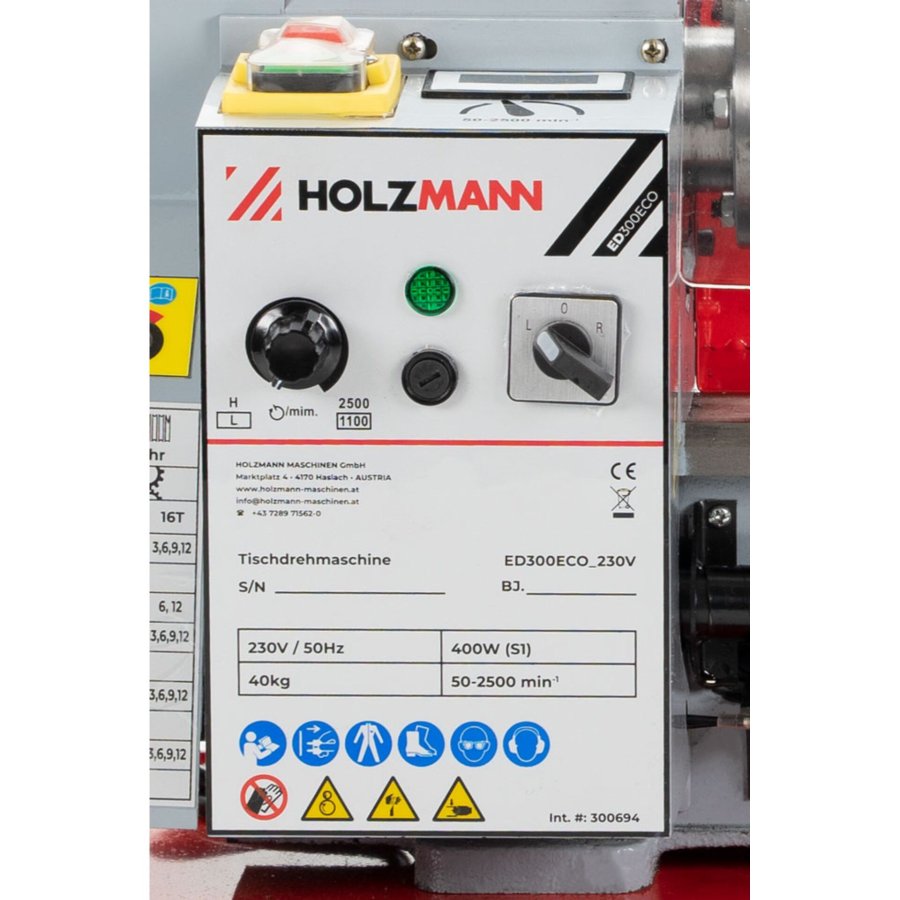

- Right-left rotation switchable on the control panel
- Tailstock can be moved to taper turning

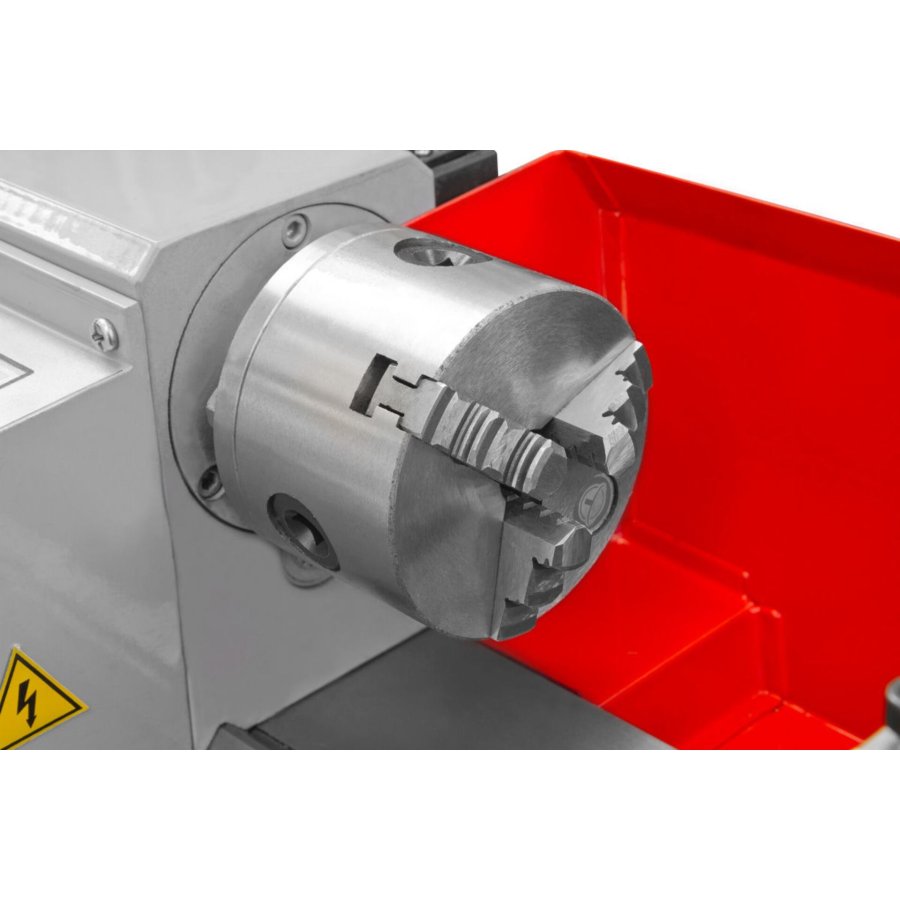

- 3-jaw chuck Ø 80 mm
Technical data:
- Motor power: 400 W
- Voltage: 230 V / 50 Hz
- Installation dimensions: 840 x 290 x 380 mm
- Bed width: 85 mm
- Tip width: 300 mm
- Tip height: 90 mm
- Max turning diameter bed: 180 mm
- Max circumferential diameter of cross slides: 105 mm
- Spindle speed: 50 - 2500 U/min
- Spindle bore: 20 mm
- Spindle cone: MK3/MT3
- Tailstock cone: MK2/MT2
- Travel distance longitudinal slide: 200 mm
- Traverse travel: 70 mm
- Travel distance upper slide: 70 mm
- Pinole travel: 50 mm
- Metric thread: 0.5-2.5mm
- Max tool holder: 10
- Longitudinal feed: 0.009-0.04 mm/U
