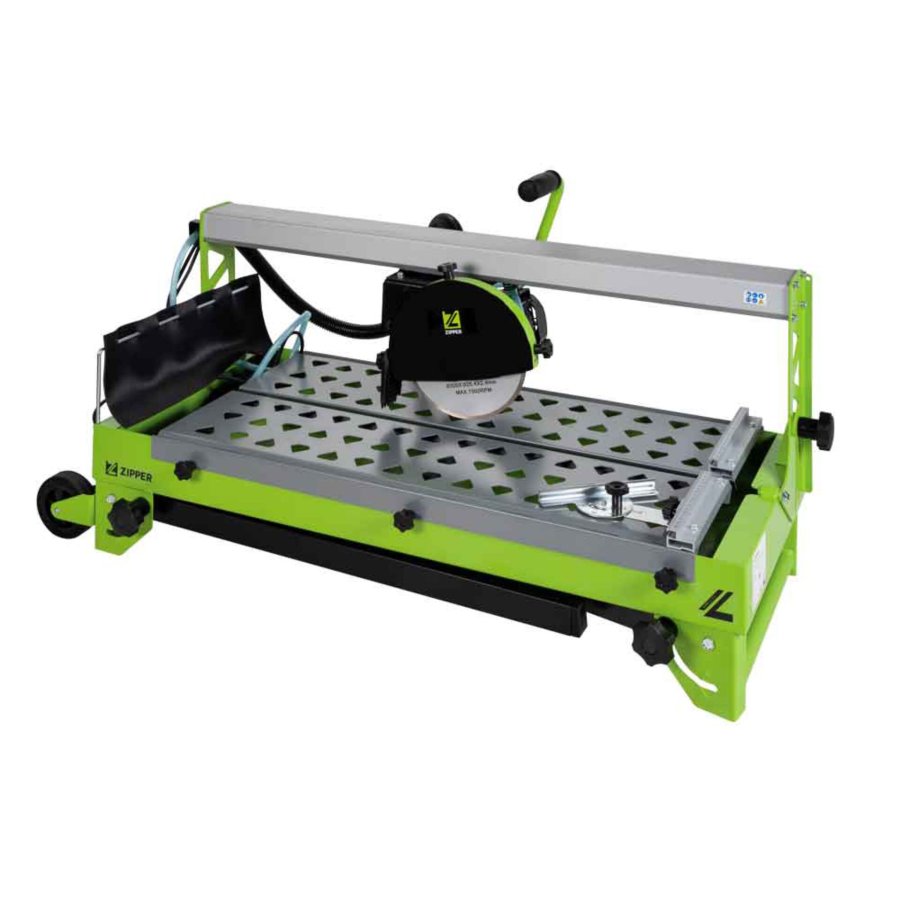

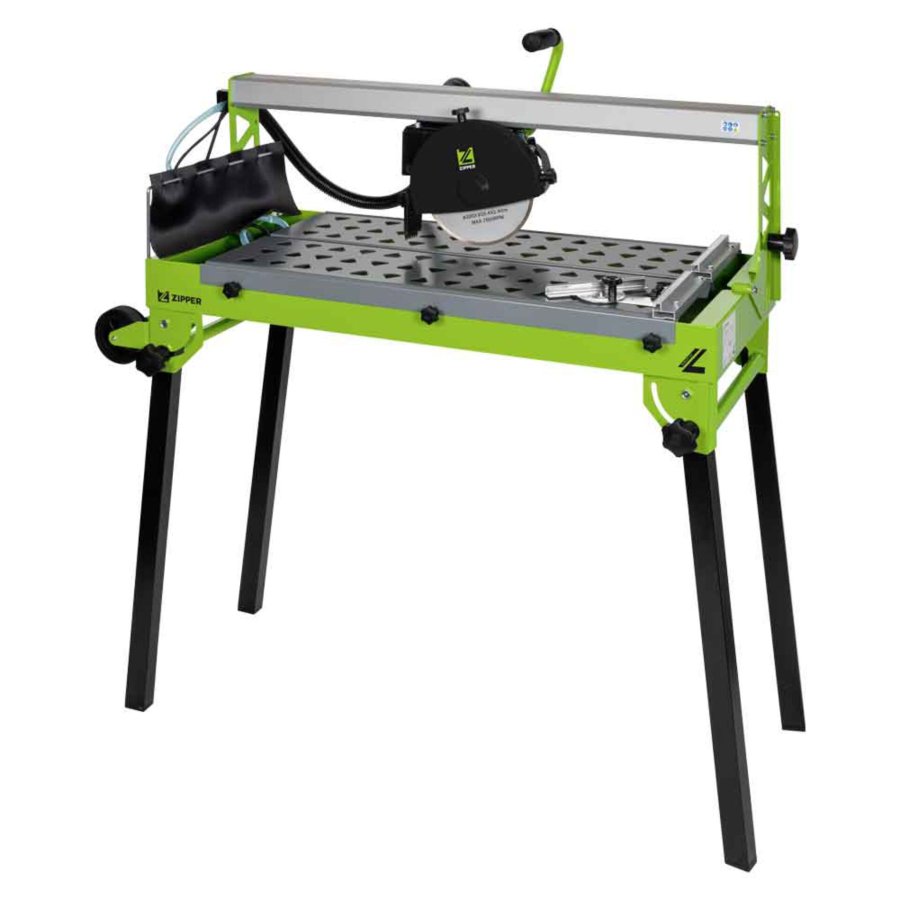

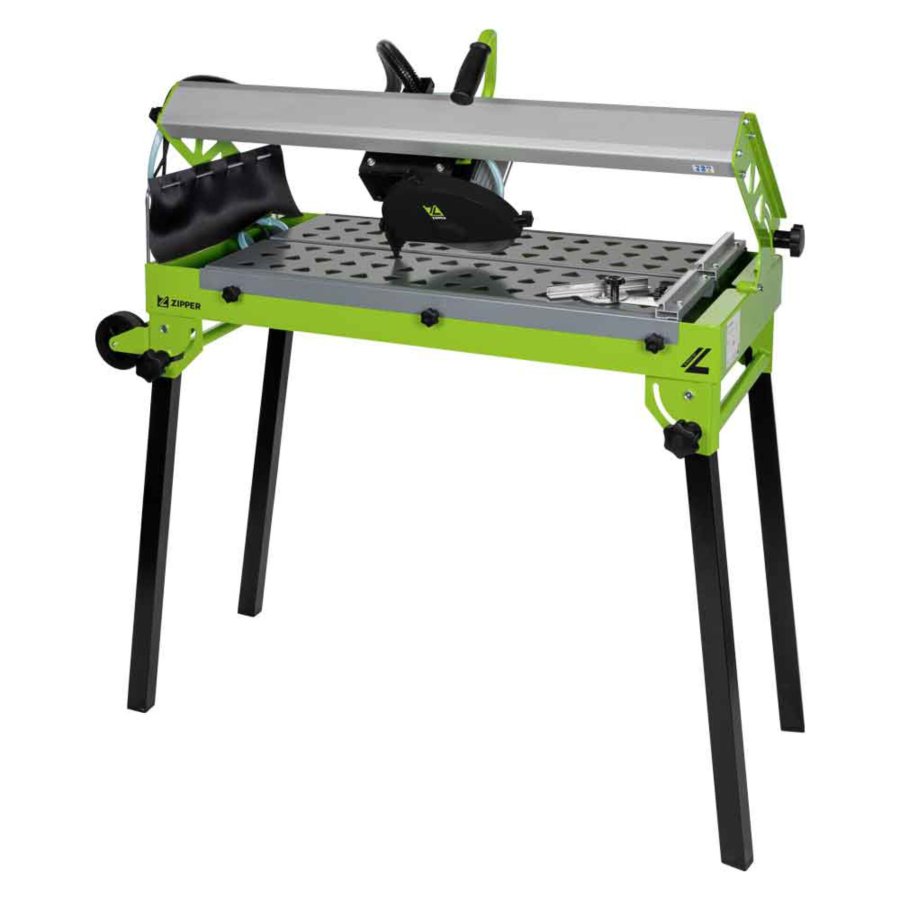

Zipper ZI-FS200-720 tile cutting machine
The Zipper ZI-FS200-720 tile cutting machine is a powerful solution for precise cuts on construction sites and in workshops. With a Ø 200 mm diamond disc and sliding slide, it allows clean and accurate cuts. The integrated cooling water pump ensures efficient cooling, while the foldable feet and transport wheels allow easy transport. Thanks to the swivelling cutting unit up to 45 degrees, it can be used flexibly for different cutting angles.

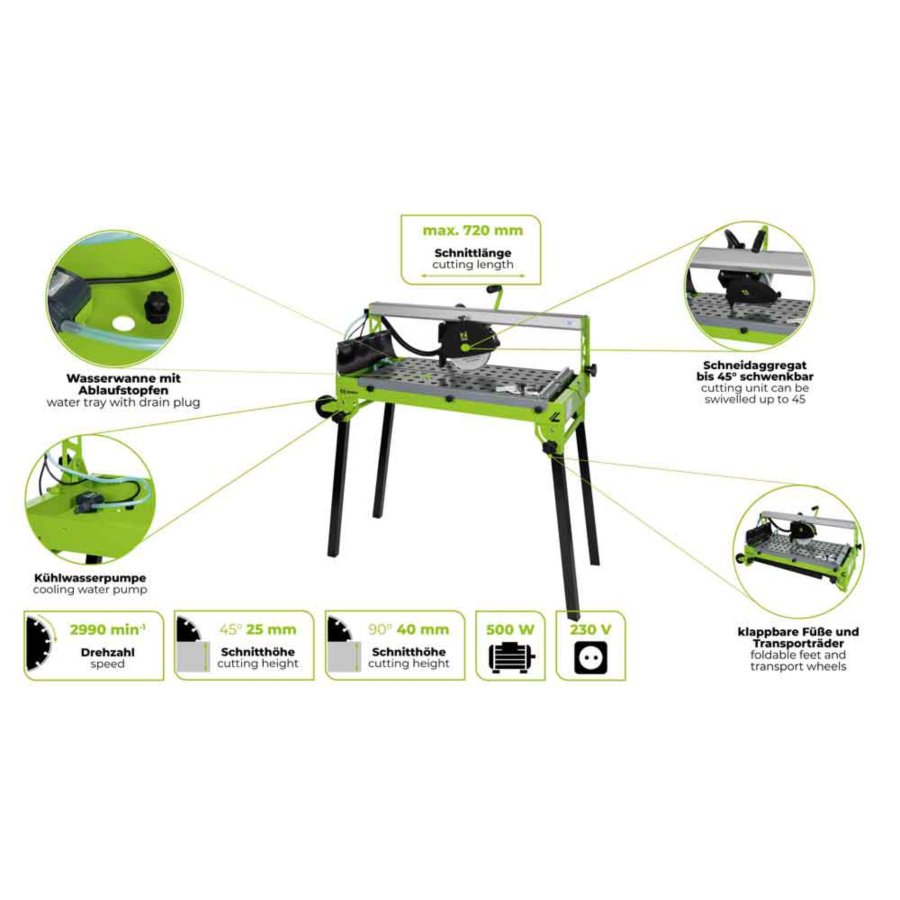

Features:
- Ø 200 mm diamond blade for precise cuts
- Sliding slide for clean cutting

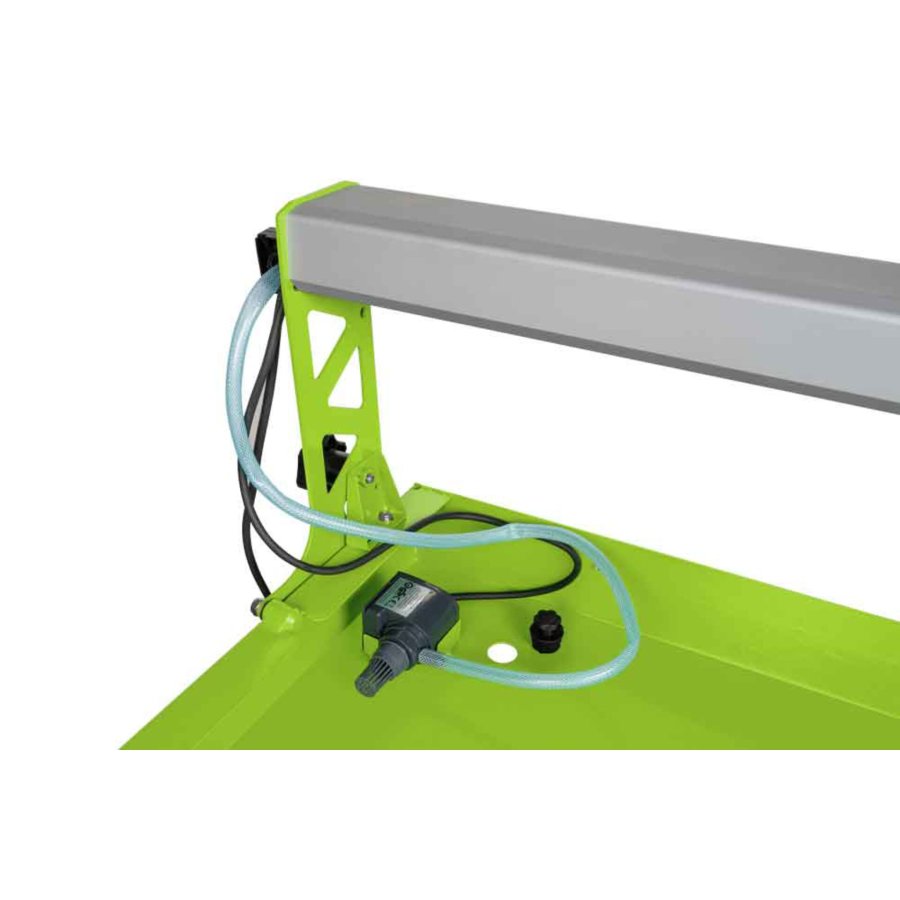

- Cooling water pump with up to 500 l/h for efficient cooling
- Foldable feet and transport wheels for easy transport
- Cutting unit swivelling up to 45° for flexible cutting angle
Technical data:
- Motor power S1: 500 W
- Motor power S6 (15%): 800 W
- Speed: 2990 U/min
- Protection class: IP54
- Voltage: 230 V / 50 Hz
- Table size: 800 x 420 mm
- Installation dimensions: 1180 x 520 x 1190 mm
- Max cutting height 90°: 40 mm
- Max cutting height 45°: 25 mm
- Max cutting length 90°: 720 mm
- Diamond disc: 200 x 25.4 x 2.4 mm
- Sound power level: 98 dB(A)
- Sound pressure level: 85 dB(A)
- Gross weight: 38 kg
- Net weight: 34 kg
