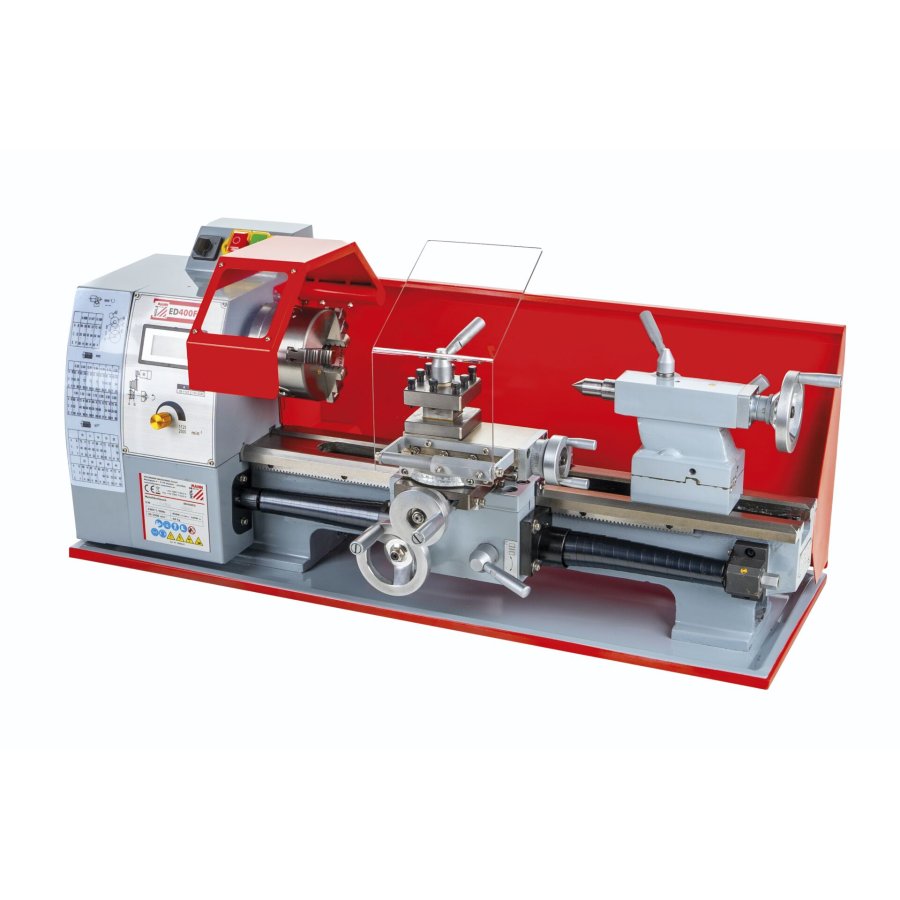

Holzmann ED400FD bench lathe 230 V
Compact bench lathe for machining steel, cast iron, all non-ferrous metals, aluminium, brass and also plastics or similar materials that are not hazardous to health or generate dust. Thanks to its design, can be used for a wide range of applications (thread cutting, taper turning, longitudinal and face turning).
Features:
- With lead screw for thread cutting or automatic longitudinal turning.
- Prismatic bed guides inductively hardened and precision ground
- Hardened main spindle mounted in adjustable precision taper roller bearings
- High concentricity of the main spindle
- Infinitely variable speed, easy to read via digital speed display
- Change gears supplied as standard for large thread cutting range
- V-guides of the slide guide can be adjusted backlash-free
- Powerful, low-maintenance motor with undervoltage release
- Extremely powerful, largely constant torque curve
- Right/left rotation switchable on the control panel
- Tailstock can be shifted for taper turning
- Note: Machine runs at half speed when turning backwards

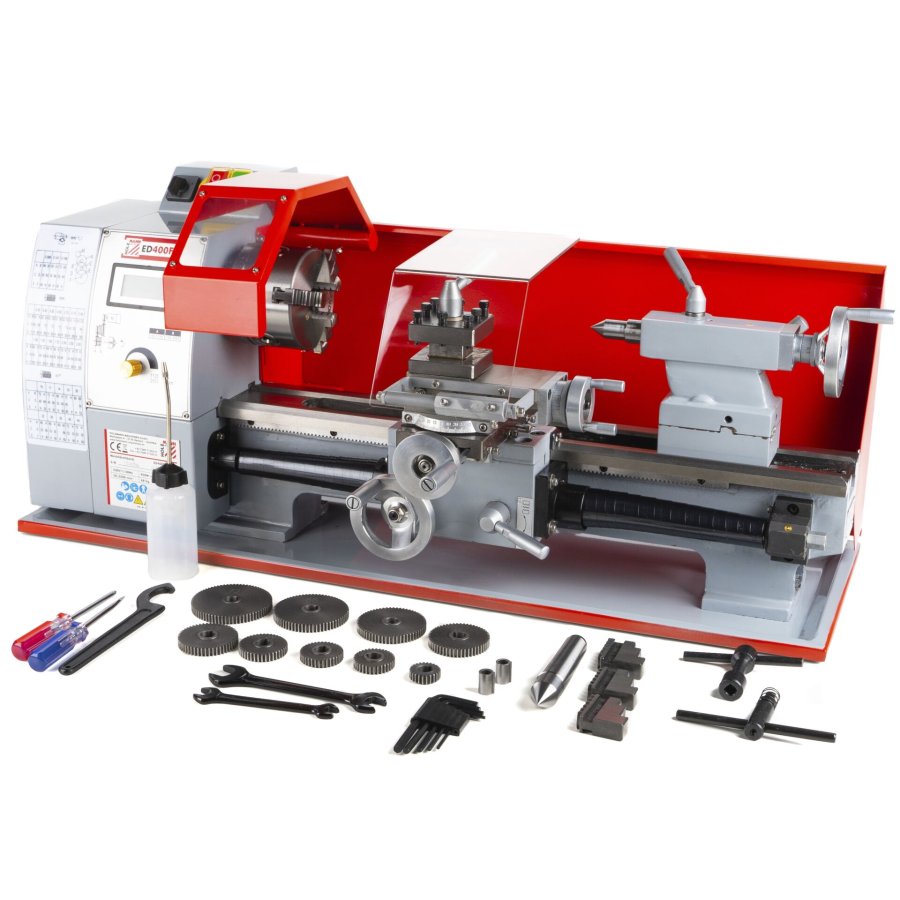

Scope of delivery:
- 3-jaw chuck Ø 100mm
- Quadruple steel holder, fixed centre punch MK3
- fixed centre punch MK2
- Chip back
- Chip tray
- Change gear set
- Operating tool
Technical data:
- Motor power S1: 450 W
- Voltage: 230V / 50Hz
- Motor power S6: 630 W
- Cable length: 1.7 m
- Installation dimensions: 940 x 380 x 345 mm
- Bed width: 100 mm
- Traverse path of longitudinal slide: 376 mm
- Spindle bore: 21 mm
- Spindle cone: MK3 / MT3
- Tailstock cone: MK2 / MT2
- Max. Swing diameter cross slide: 134 mm
- Turning spindle speed: 50-2500 min-1
- Metric thread: 0.5-3 (14) mm/r
- Thread: 8-44 (10) inch
- Quill travel: 55 mm
- Cross slide travel: 80 mm
- Travel top slide: 55 mm
- Centre distance: 400 mm
- Max. Swing diameter bed: 210 mm
- Longitudinal feed: 0.089 / 0.147 / 0.198 mm/ U
- Max. tool holder: 10 mm
- Net weight: 68 kg
