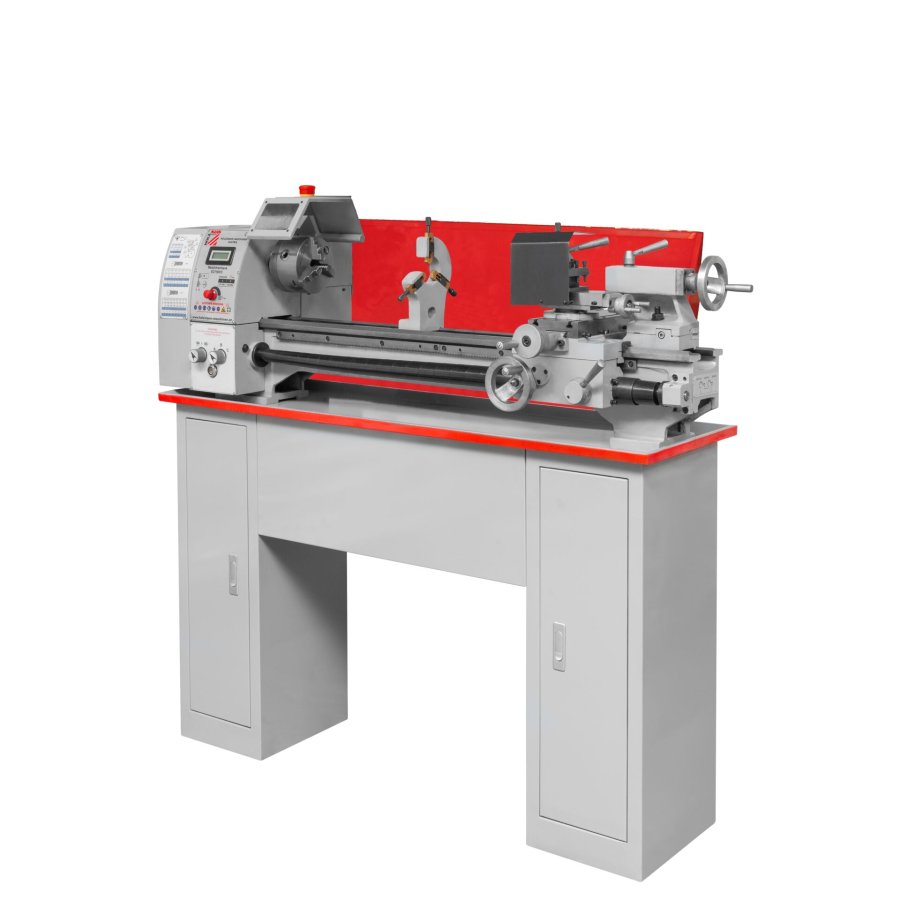

Holzmann ED750FD 230V metal lathe
The HOLZMANN ED750FD_230V enables the machining of workpieces up to 750 mm in length and a maximum diameter of 250 mm and, thanks to the powerful motor, also allows larger ablations in one pass. The spindle speed can be controlled by means of a potentiometer and thus enables a comfortable and accurate machining of the workpiece. With the ED750FD_230V, threads of different pitches (metric and inch) can also be cut. Supplied with extensive accessories, it is a reliable helper in every metalworking workshop.
Features:
- Solid and robust cast design including base
- Variable speed adjustable via potentiometer
- Speed display via LCD display
- Resistant, induction-hardened machine bed
- Base cabinet with two boxes
- Maximum turning diameter 250 mm, bed width 135 mm
- Spindle bore 25 mm, spindle holder MK3, tailstock MK2
Technical data:
- Power: 750 W
- Voltage: 230 V / 50 HZ
- Dimensions: 1355 x 560 x 1065 mm
- Bed width: 135 mm
- Spindle bore: 25 mm
- Spindle cone: MK4/MT4
- Tailstock cone: MK2/MT2
- Rotary spindle speed 1 / 2: 50-1250 / 100-2500 U/min
- Thread Metric: 0.2 - 3.5 mm
- Center distance: 750 mm
- Maximum swing diameter bed: 250 mm
- Top height: 125 mm
- Maximum swing diameter cross slide: 130 mm
- Longitudinal feed: 0.07 - 0.4 mm
- Travel longitudinal slide: 640 mm
- Travel of cross slide: 115 mm
- Travel distance upper slide: 70 mm
- Spindle travel: 60 mm
- Net weight: 126 kg
- Colour: grey / red
Scope of delivery:
- Substructure
- 3-jaw chuck 125 mm
- 2x grain tips
- Interchangeable wheels
- Internal and external jaws
- 4-way steel holder
- Lead screw cover
- Lining protection with viewing window
- 4-jaw chuck 125 mm
- face plate 220 mm
- Fixed bezel
- Rotating bezel
