Beskrivelse

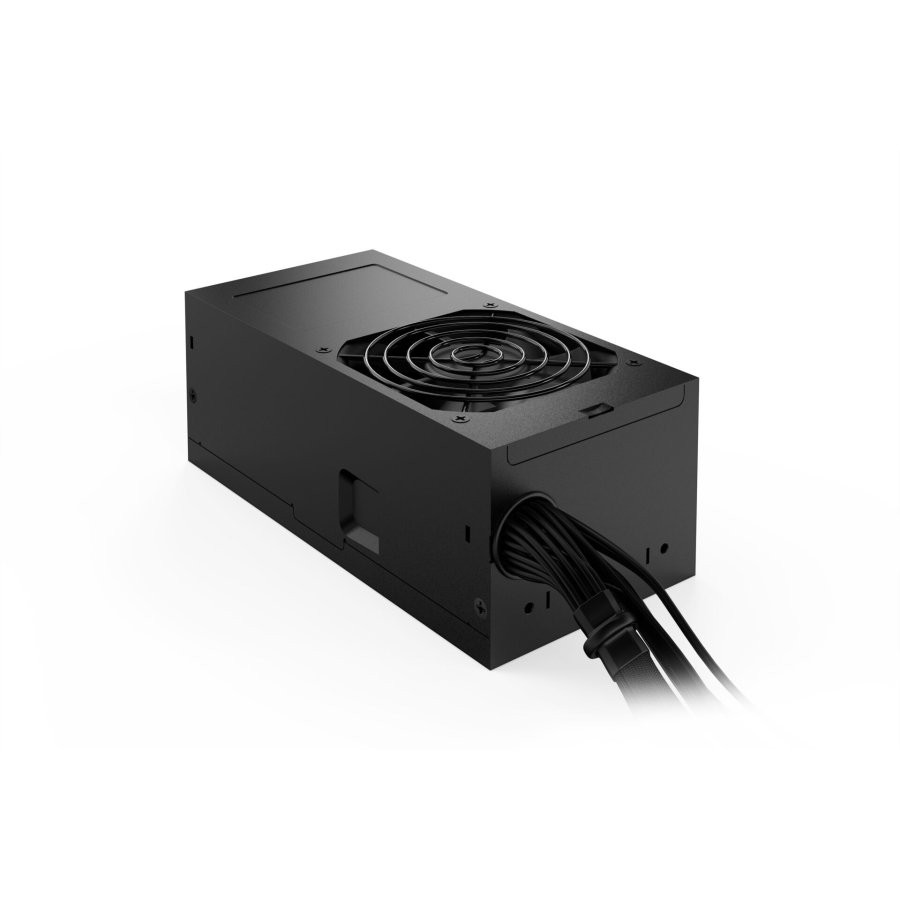

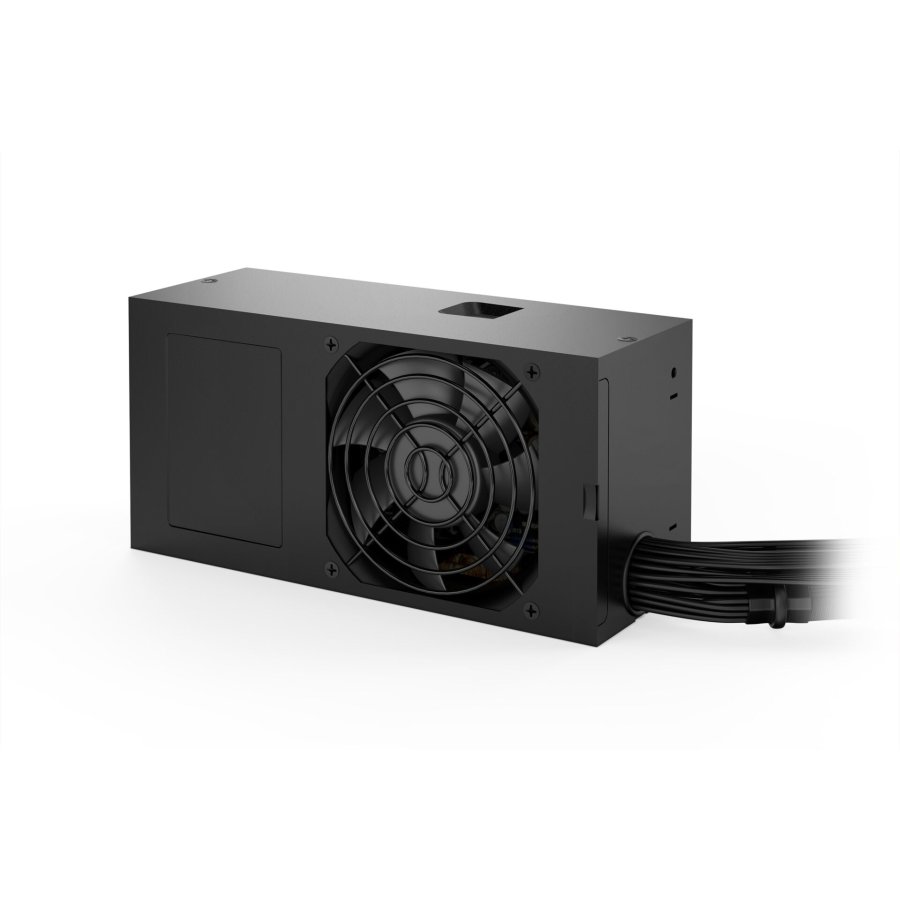

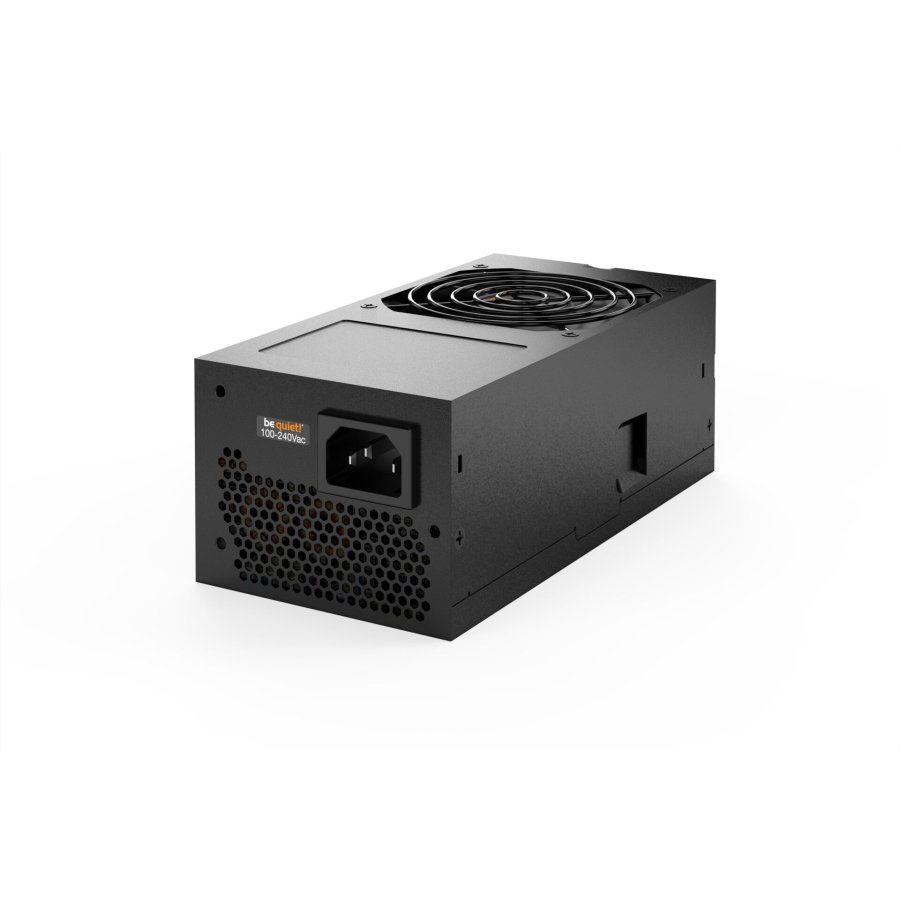

be quiet! TFX POWER 3, 300W Gold power supply
TFX Power 3 '300W Gold: the further developed high-efficiency power supply from be quiet! for mini and media PCs with 80 PLUS Gold certification and power to support a PCIe graphics card
Features:
- For mini and media PCs with low installation depth
- 80 PLUS Gold certificate for optimal energy use (up to 91.7%)
- High stability due to 2 strong 12V cables supporting PCIe graphics cards
- PCIe port for high-performance GPUs
- 300 W stable power
- Temperature-controlled 80 mm quality fan for quiet system operation of up to 21.7dB(A)
- Coated cables or flat cable with up to 60cm length
- Meets current safety and efficiency requirements
- Less than 0.17 watts of power consumption in standby mode
Technical data:
- Continuous power: 300 W
- Peak power; 350 W
- Form factor TFX 12V: version 2.52
- Form factor EPS 12V: Version 2.92
- Topology: Active Clamp
- Mains voltage: 100 - 240 V
- Power frequency: 50 - 60 Hz
- Rated current: 4 / 2 A
- Power consumption in stand-by: <0.17 W
- Average service life: 100000 hrs / 25°C
- Working range up to: 40°C
- 80 Plus certification: gold
- Efficiency (%) at 230V, 10% load: 82.7 %
- Efficiency (%) at 230V, 20% load: 88.9 %
- Efficiency (%) at 230V, 50% load: 91.7 %
- Efficiency (%) at 230V, 100% load: 90.6 %
- Fan: 80 mm
- Maximum fan speed: 1323 U/min
- Volume at (10 / 20 / 50 / 100 % load): 9.1 / 9.7 / 12.4 / 21.7 dB(A)
- Connections:
- 1x ATX mainboard (20+4 pin)
- 1x CPU P4
- 1x PCIe 6+2 pin
- 3x SATA
- 2x PATA
- 1x FDD
- Security: OCP, OPP, SCP, OVP, UVP, SIP
- Colour: black
- Dimensions: 175 x 85 x 65 mm
- Weight: about 1.1 kg
