LC-Power LC700SI V2.31, 80 Plus PC Power Supply with ATX V2.31, 700 W
The 700 Watt power supply LC700SI V2.31 from the Integrator series is 80 PLUS Standard certified and offers high energy efficiency.
With ATX 2.31 support, it is compatible with a wide range of PC systems and ensures stable voltage supply. The integrated 140 mm fan provides quiet and efficient cooling even under high load. A power supply unit that optimally combines performance and efficiency.
Features:
- 700 Watt: Reliable power for your components
- ATX form factor: Compatible with a variety of cases
- 80 PLUS STANDARD certification for up to 85% efficiency
- Black sleeved flat cables for a tidy appearance
- Five safety circuits (OVP, OCP, OPP, OTP, SCP) for maximum protection
- Powerful +12 V rail with 58.3 A for high stability

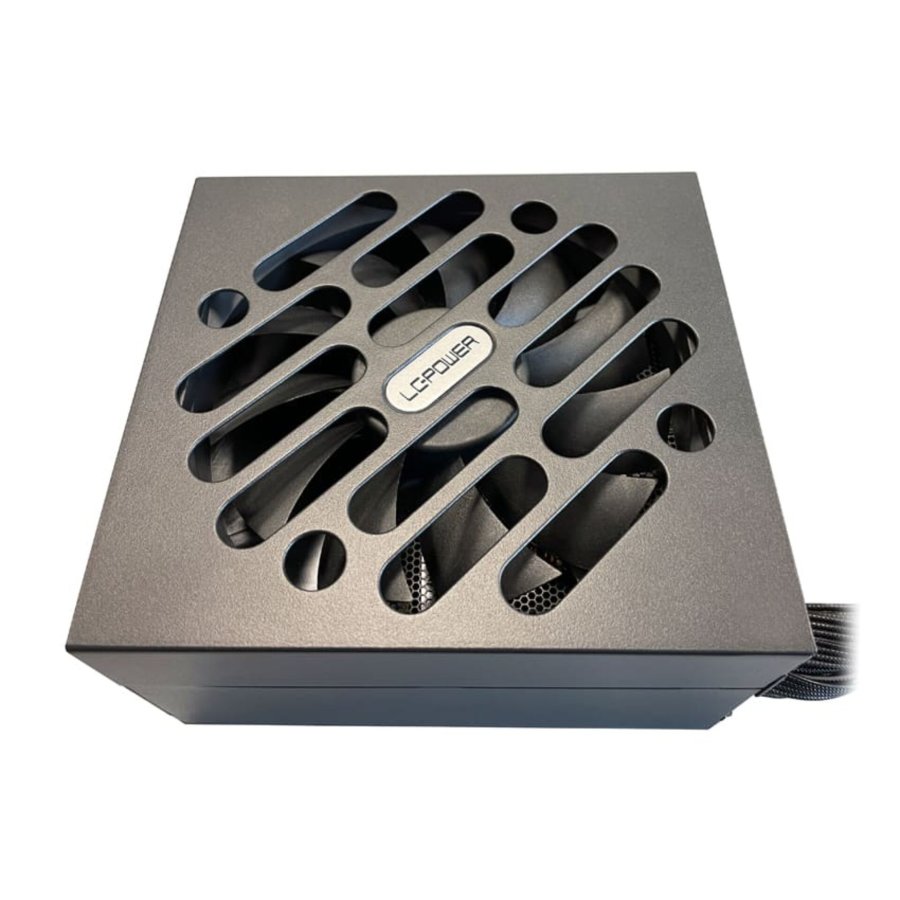

- 140 mm fan for efficient and quiet cooling
- 3x PCI-Express 6+2-pin connectors for graphics cards

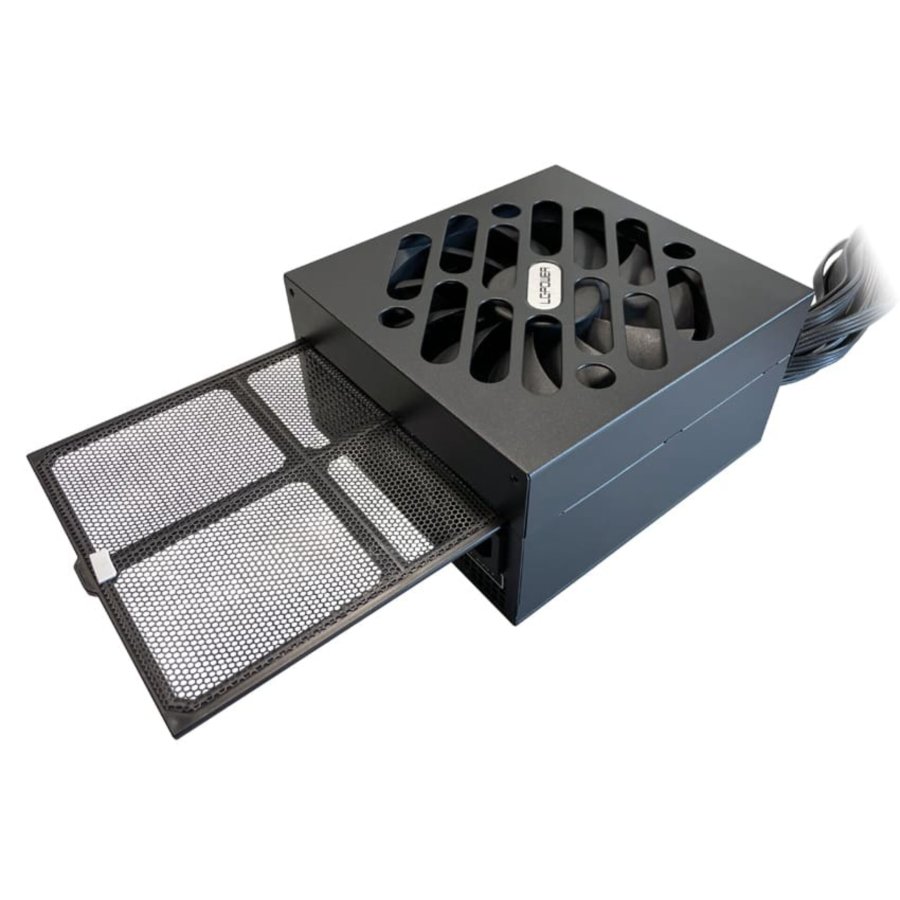

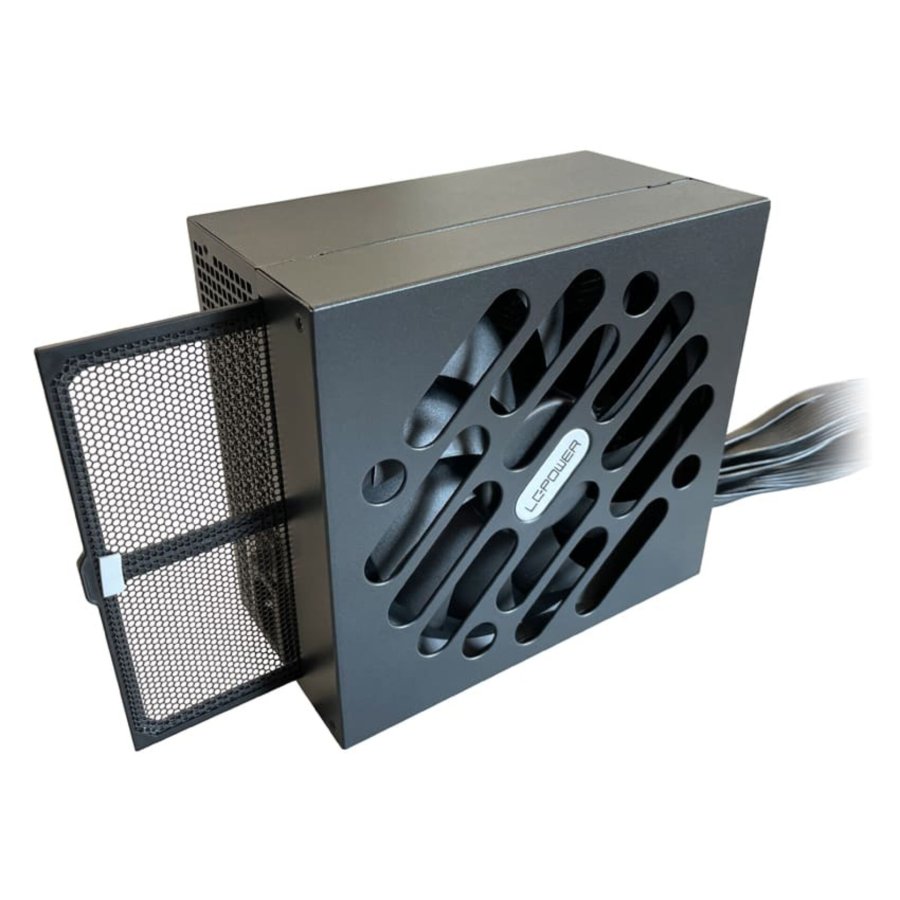

- Practical dust protection with a removable dust filter
Technical Specifications:
- Power: 700 W
- Form factor: ATX, version 2.31
- Fan: 140 mm
- Non-modular
- Connectors:
- 1x motherboard 20+4-pin, cable length: 550 mm
- 2x motherboard 4+4-pin 12V 8-pin EPS, cable length: 1x 600 mm / 1x 720 mm
- 3x PCI-Express 6+2-pin, cable length: 550 mm
- 6x SATA, cable length: 2x 480 / 2x 620 / 2x 760 mm
- 3x PATA, cable length: 1x 500 / 650 / 800 mm
- 1x FDD, cable length: 930 mm
- PFC: active
- AC input: 180 - 240 V, 7.0 A, 50 - 60 Hz
- DC output: 3.3 / 5 / 12 V (14 / 14 / 58.3 A)
- Efficiency: up to 85%
- Certified: 80 Plus
- Safety circuits: Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Short Circuit Protection (SCP)
- Material: Metal, plastic
- Dimensions: 87 x 150 x 160 mm
- Weight: 1.79 kg
- Color: black
