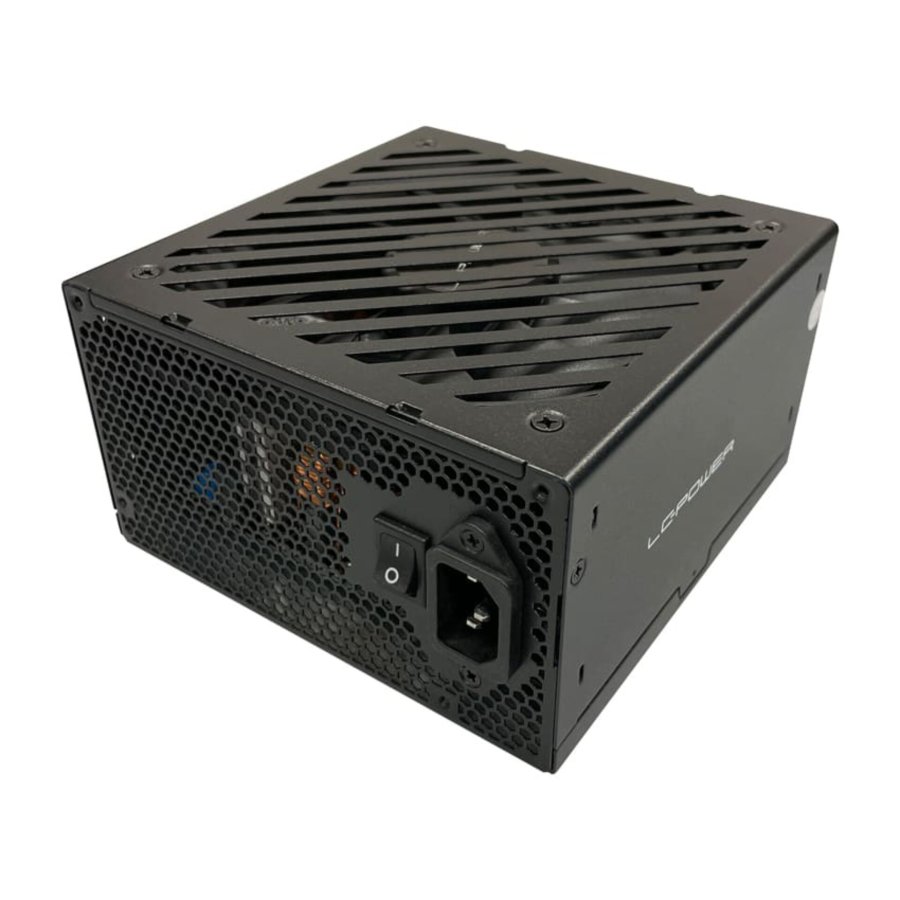

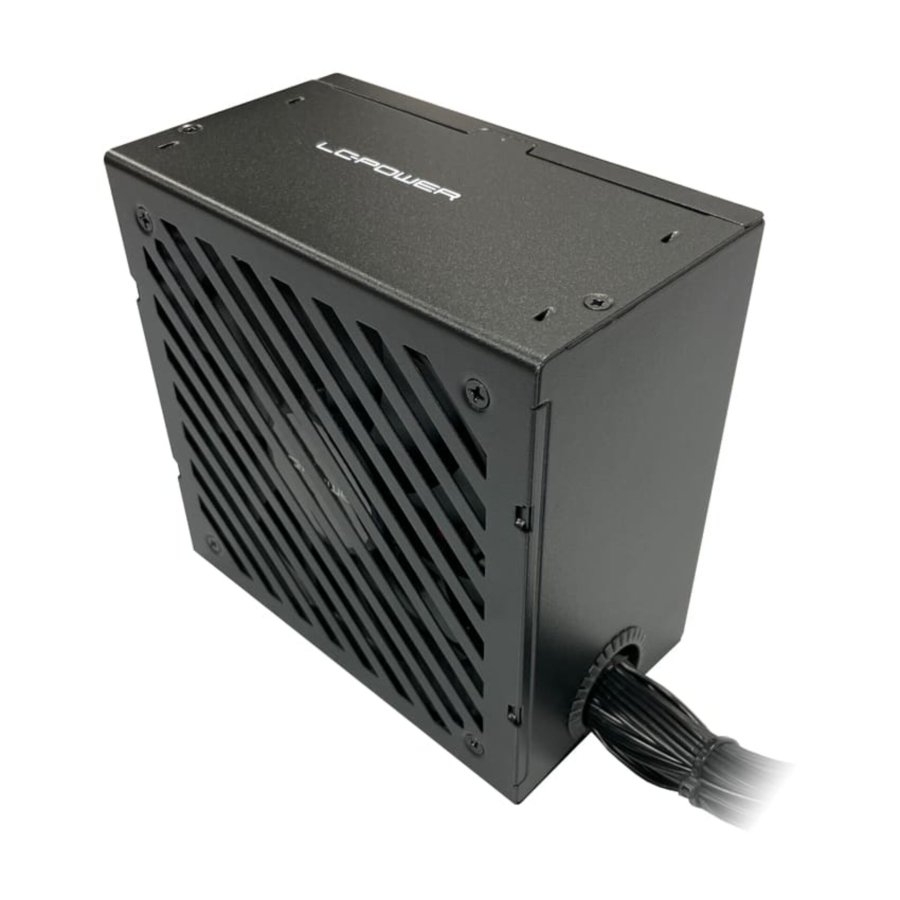

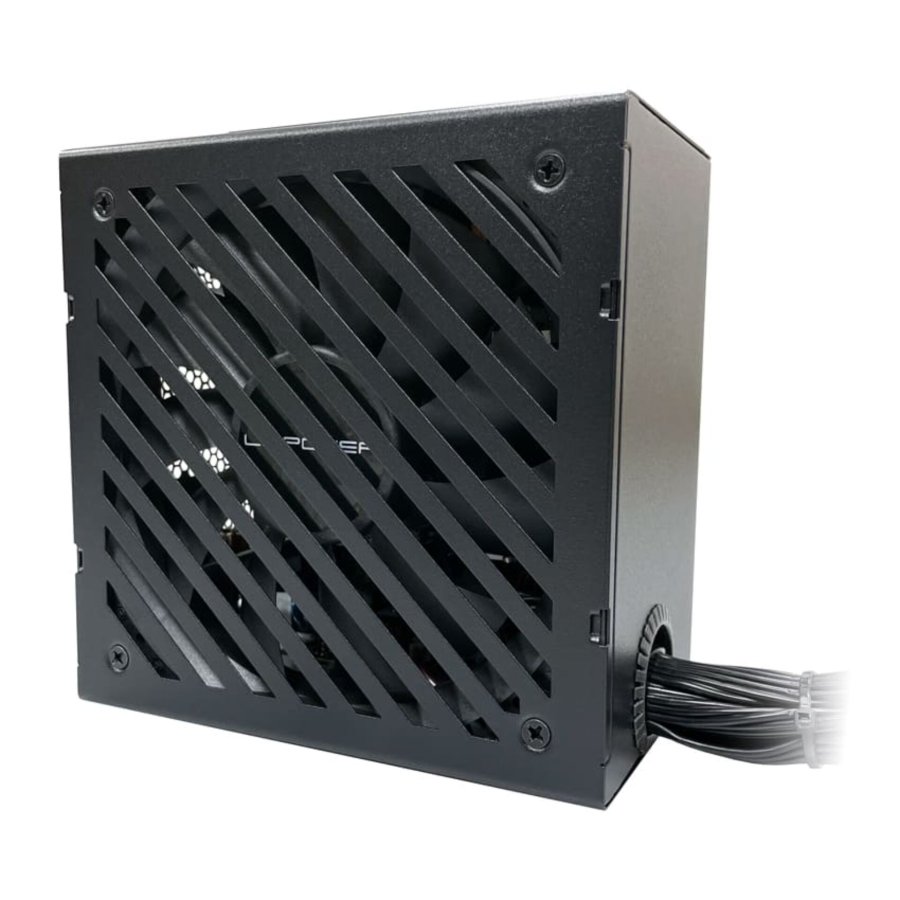

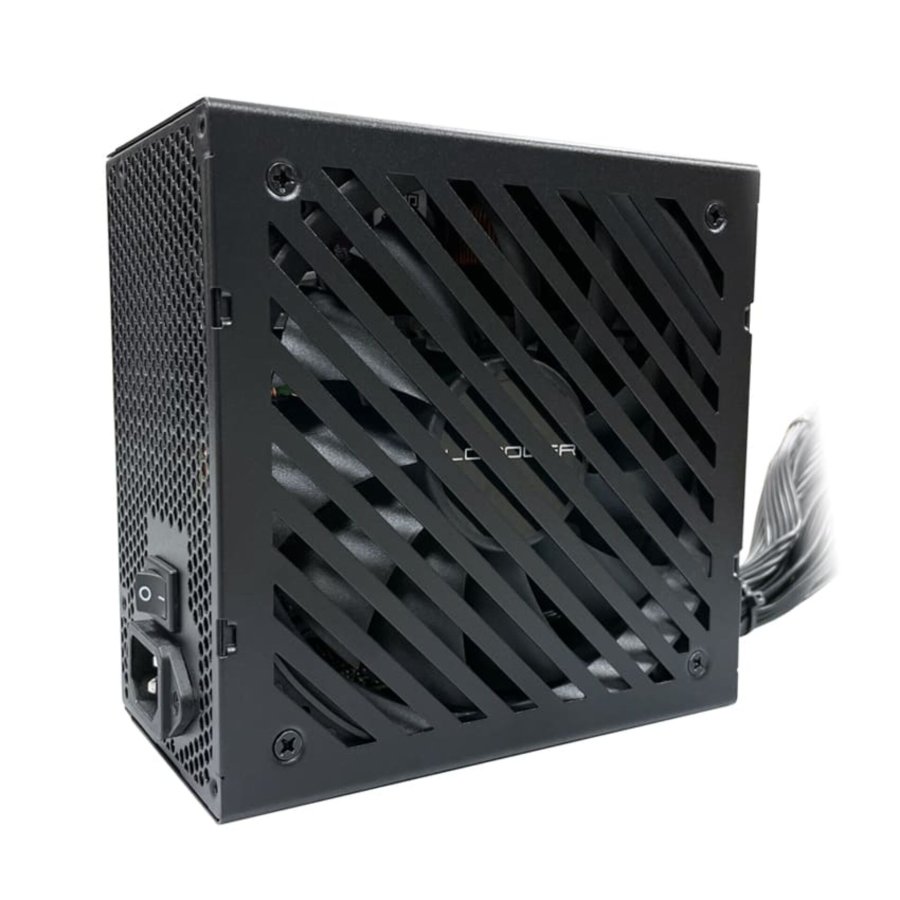

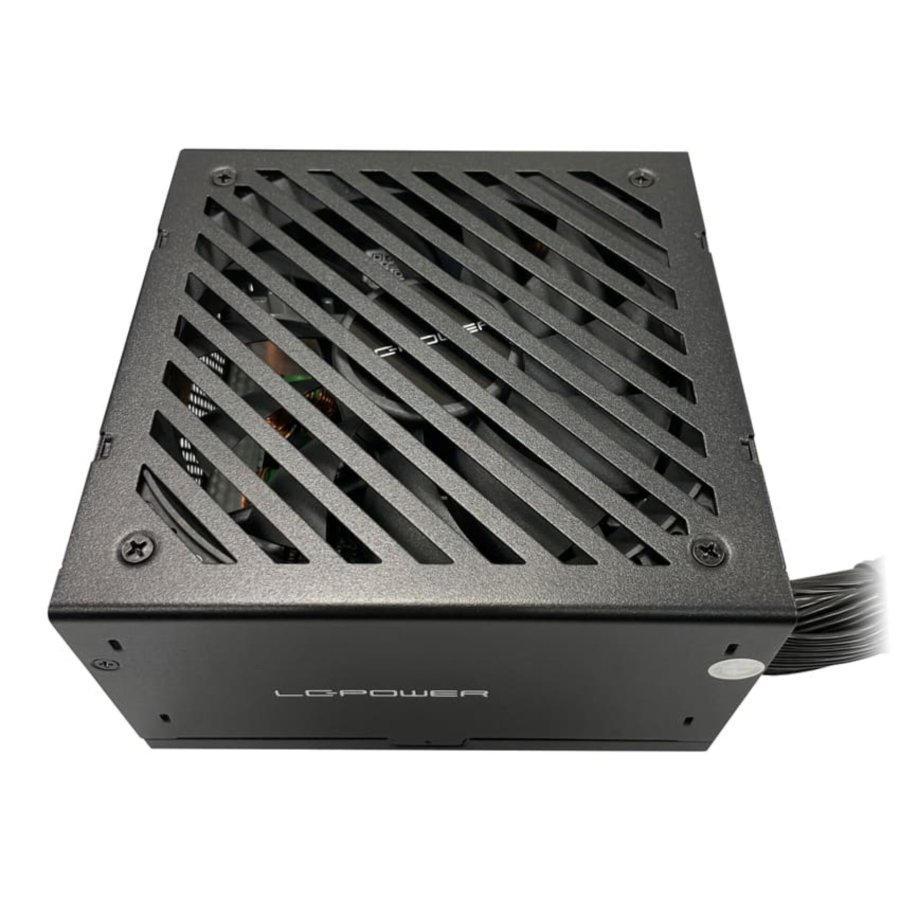

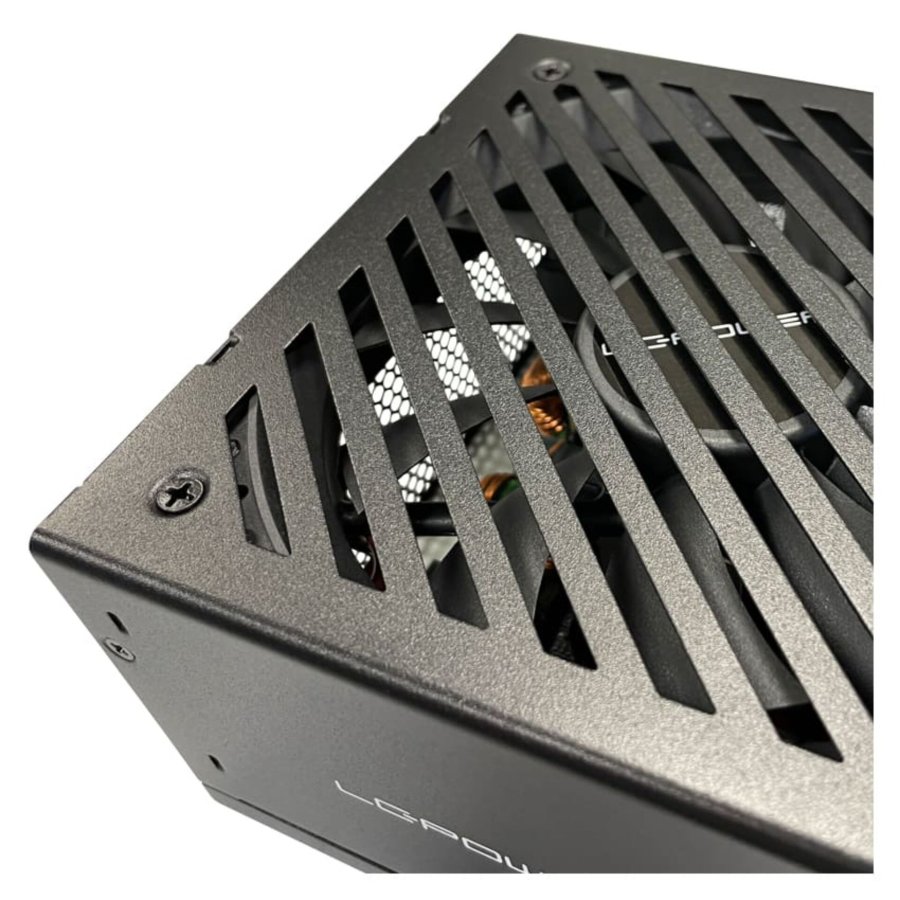

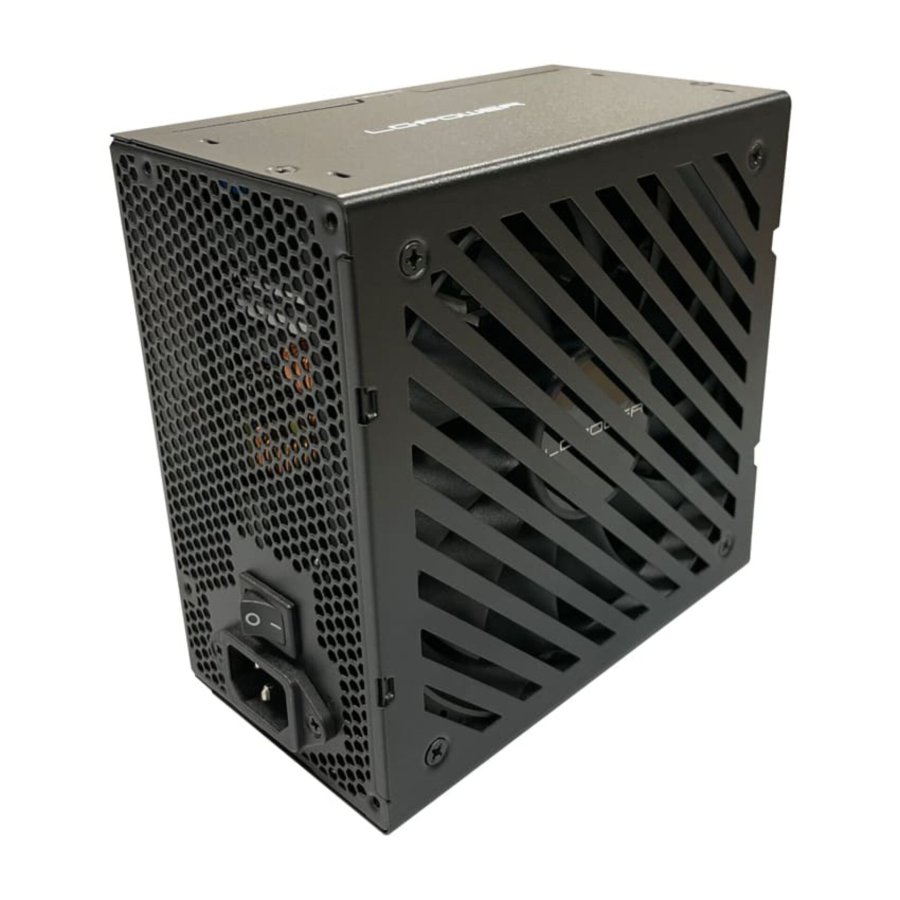

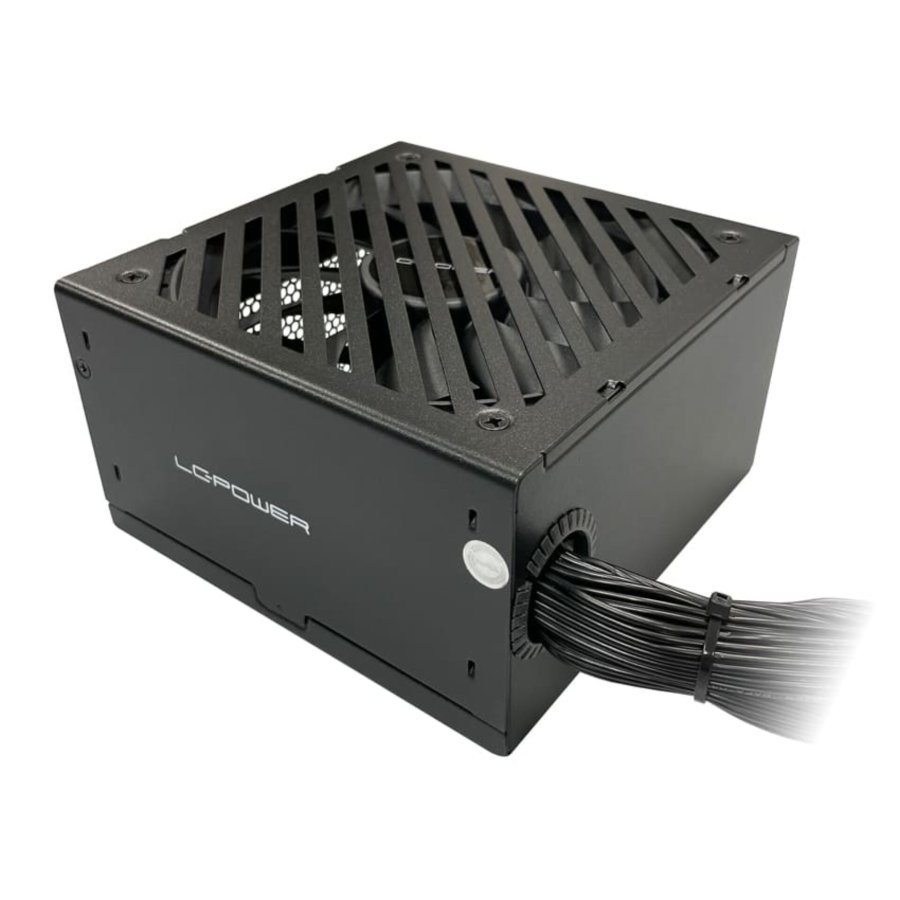

LC-Power LC6650B-SI V3.1, PC Power Supply, PCIe 5.1, 650 W
The LC6650B-SI V3.1 is an 80 PLUS BRONZE certified ATX power supply that offers good performance and system stability. The power supply of the Integrator series provides 550 watts and is a reliable power solution for a variety of applications. Equipped with a quiet 135 mm fan, it operates efficiently and ensures powerful cooling. It is ideal for all mid-range systems.
It features a 20+4-pin motherboard connector that is compatible with most motherboards, as well as a 550 mm 4+4-pin motherboard 12V connector, a 750 mm 4+4-pin motherboard 12V connector, four SATA, and two PATA connectors that provide stable power supply for powerful CPUs, hard drives, and drives. For graphics cards, it has two PCI-Express 6+2-pin connectors and a powerful PCI-Express 5.1 12V 2x6 12+4-pin connector that enables direct and reliable power supply for multiple GPUs.
Features:
- ATX form factor, V 3.1
- Power: 650 W
- Fan: 135 mmBlack flat cables
- 80 PLUS Bronze certified
- Efficiency of up to 85%
- Six safety circuits
- DC-to-DC technology
- Powerful +12 V rail: 54,1 A
- Connectors:
- 1x Motherboard 20+4-pin, cable length: 550 mm
- 2x Motherboard 4+4-pin 12V, 8-pin EPS, cable length: 1x 550 / 1x 700 mm
- 1x PCIe 5.1 / 12V, 12+4-pin, cable length: 1x 600 mm
- 2x PCIe 6+2-pin, cable length: 1x 550 / 1x 700 mm
- 4x SATA, cable length: 2x 450 / 2x 600 mm
- 2x PATA, cable length: 2x 750 mm
- PFC: Active
- Input AC: 100 – 240 V
- Output DC: 3.3 / 5 / 12 V (20 / 20 / 54,1 A)
- Safety circuits: OCP (overcurrent protection), OPP (overpower protection), OVP (overvoltage protection), SCP (short circuit protection), SIP (inrush current protection), UVP (undervoltage protection)
- Material: Metal, plastic
- Dimensions: 86 x 150 x 150 mm
- Weight: approx. 1.74 kg
- Color: Black
