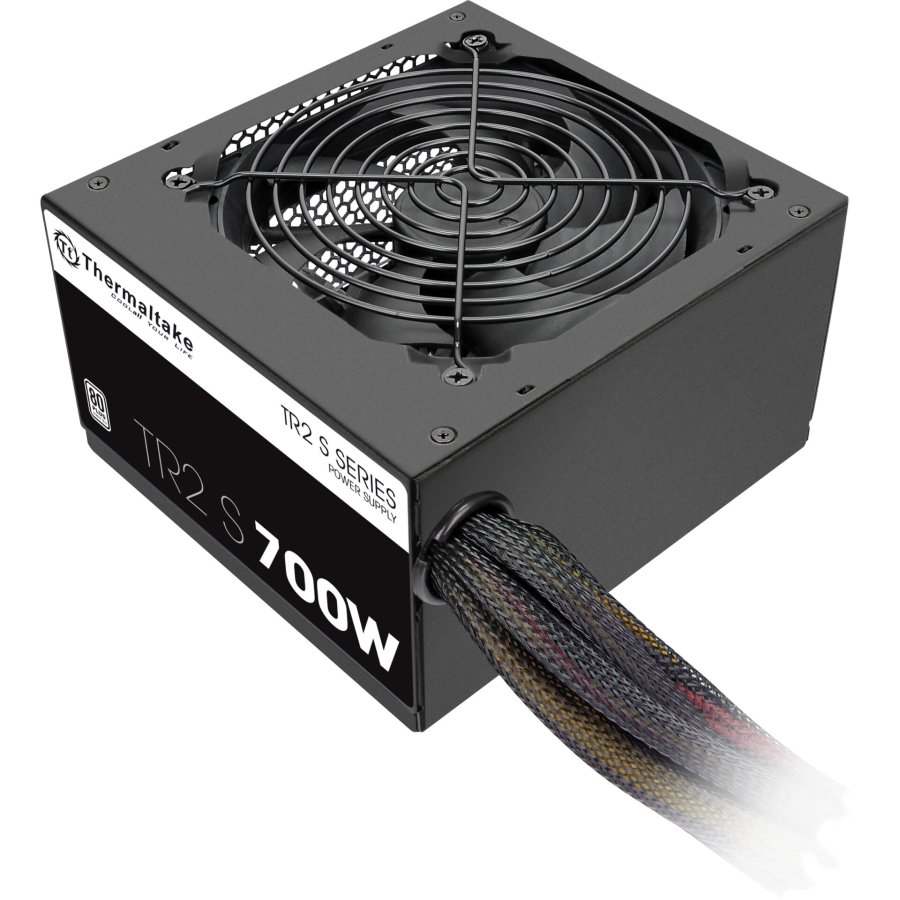

Thermaltake Netzteil TR2 S 700W
Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

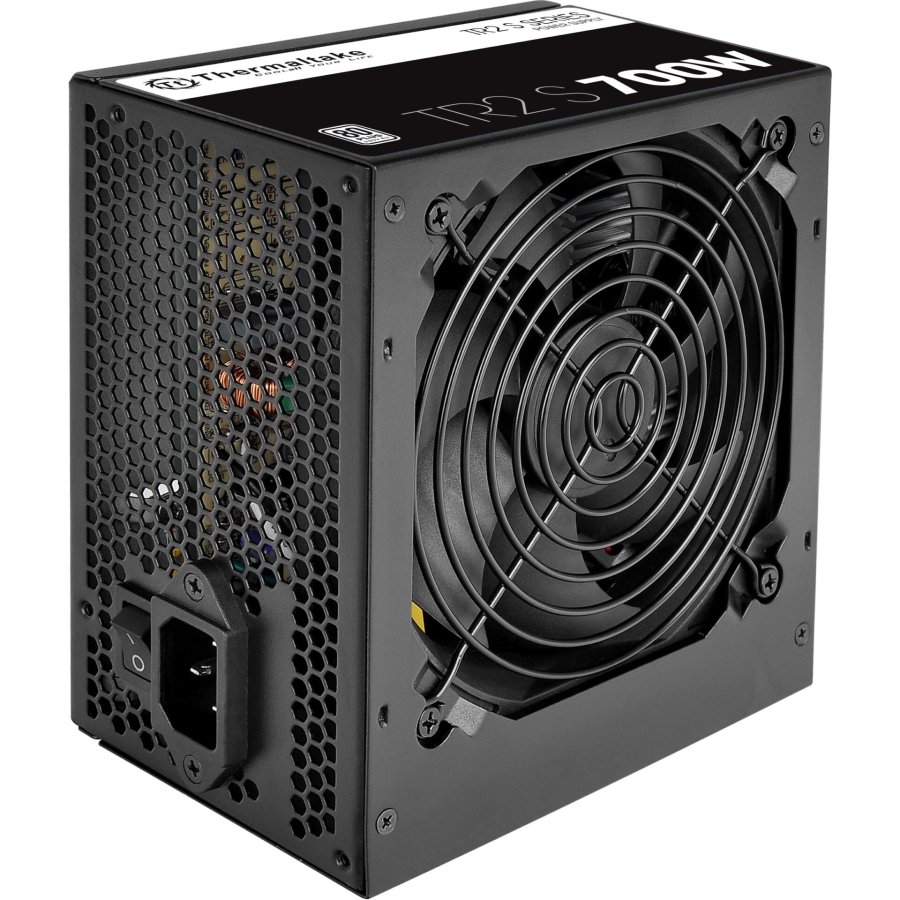

Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Multiple Connectors
The cables used for TR2 S Series are all sleeved. TR2 S 700W connector’s specification as below.
80 PLUS 230V Standard Certified and Haswell Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS 230V Standard Certified.

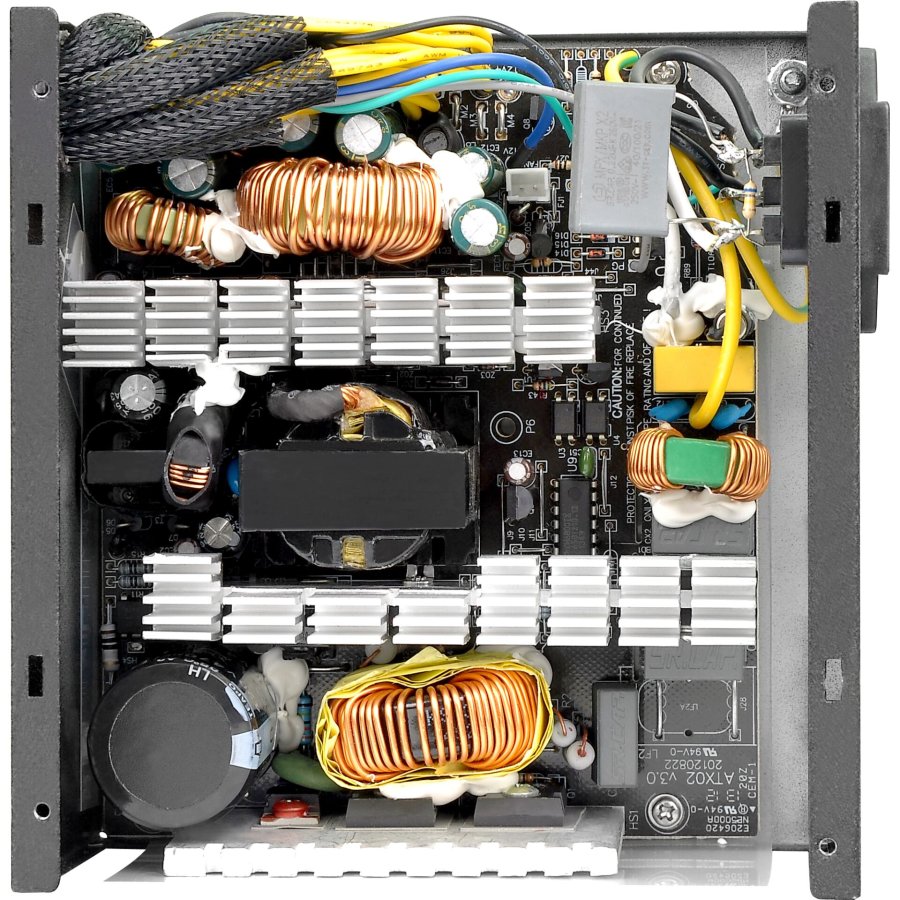

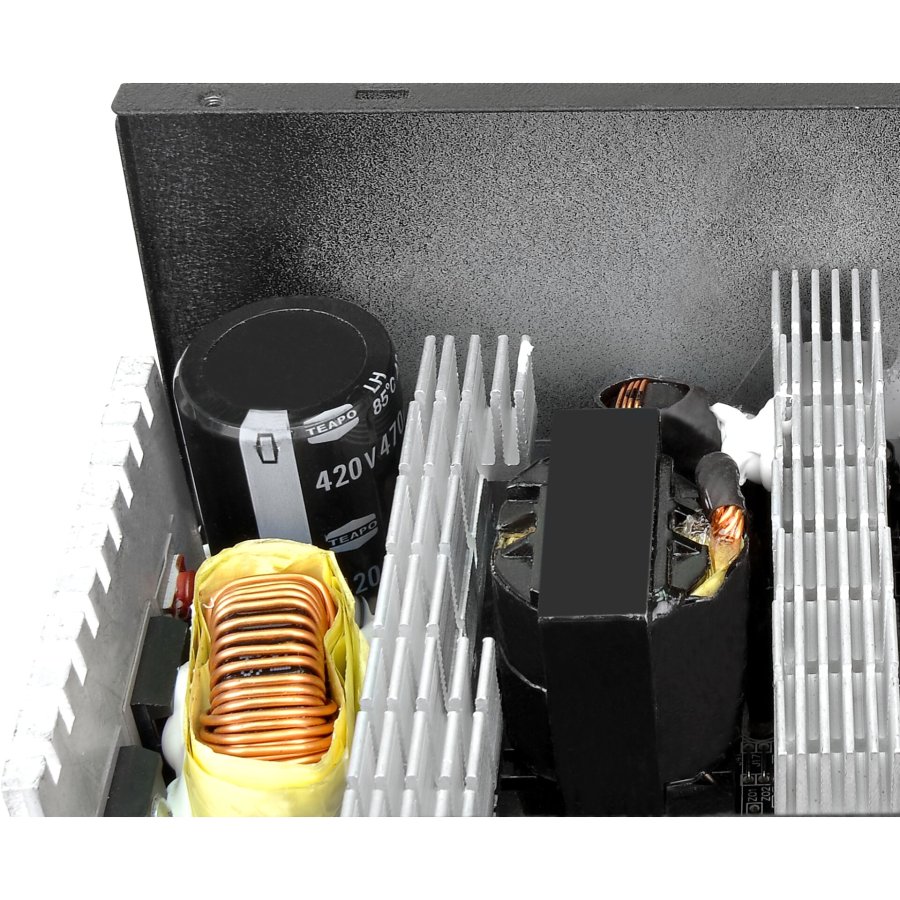

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Features:
- Type: Intel ATX 12V 2.3
- Max. Output Capacity: 700 W
- Color: white
- Dimension (H x W x D): 86 mm x 150 mm x 140 mm
- PFC (Power Factor Correction): Active PFC
- Power Good Signal: 100-500 msec
- Hold Up Time: 16msec (minimum) within 60% load
- Input current: 9A max
- Input Frequency Range: 50 Hz - 60 Hz
- Input Voltage: 230 Vac
- Operating Temperature: 5°C to +40°C
- Operating Humidity: 20% to 85%, non-condensing
- Storage Temperature: -40 °C to +55 °C
- Storage Humidity: 10% to 95%, non-condensing
- Cooling System: 120mm Fan: 1800 R.P.M. ± 10%
- Efficiency: 82-86% Efficiency @ 20-100% load
- MTBF: 100,000 hrs minimum
- PCI-E Connector: PCI-E 6+2pin x 2
