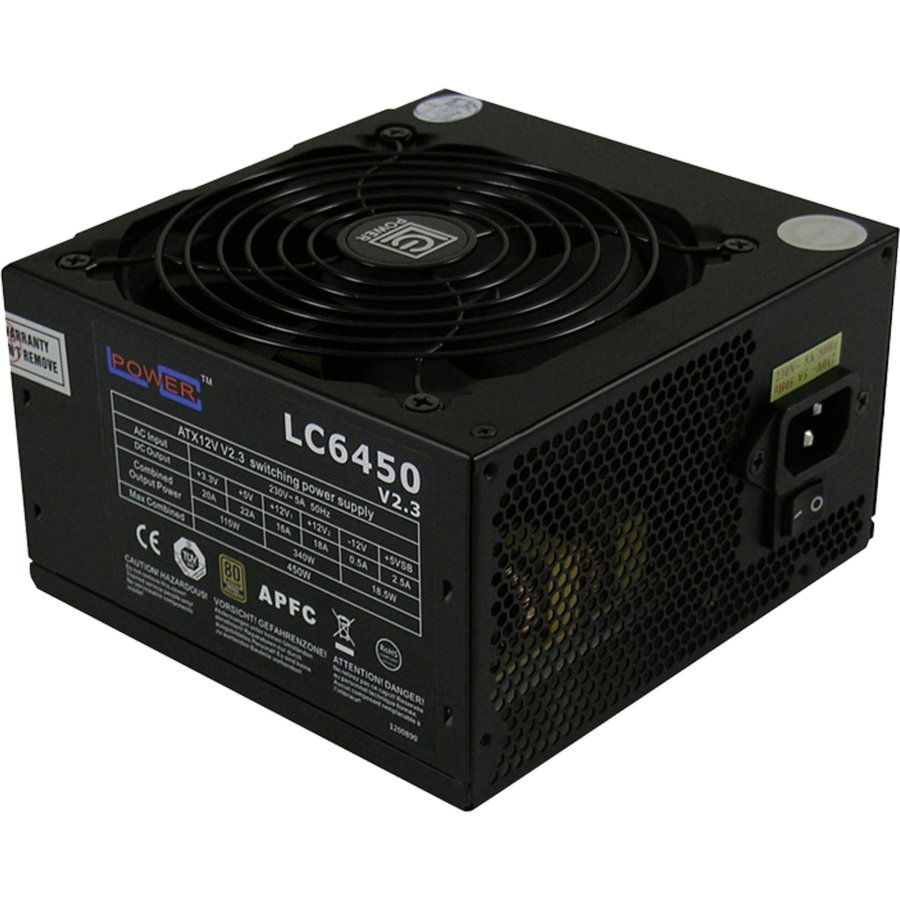

LC-Power LC6450 V2.3

Beskrivelse

LC-Power LC6450 V2.3 - Super Silent Series Power Supply Unit

Enjoy ultra-quiet operation thanks to the 120 mm fan
Great cooling performance thanks to honeycombed ventilation grilles on the back
This power supply unit is equipped with all relevant ports used in the office and midrange field
Advanced technologies reduce power consumption in standby mode (< 0.3 W) and increases efficiency to > 88%
Including Active PFC (power factor correction for an efficient use of consumed power) and all relevant safety circuitry
ATX standard: ATX V2.3
Connectivity:
- 20+4 pin mainboard: 1x 45 cm
- 4+4 pin mainboard 12V (8 pin EPS): 1x 45 cm
- PCI express: 1x PCI express V2.0 6+2 pin 45 cm
- SATA: 4 (1x 45 / 2x 60 / 1x 75 cm)
- PATA: 4 (2x 45 / 2x 60 cm)
- FDD: -
Power rating:
- 450 W max / peak
- +3.3 V: 20 A
- +5 V: 22 A
- Max. combined: 115 W
- +12 V1: 16 A
- +12 V2: 18 A
- Max. combined: 340 W
Temperature control for case fan
Security circuitry
- OVP = Over-voltage protection
- OCP = Over-current protection
- OPP = Over-power protection
- SCP = Short-circuit protection
- UVP = Under-voltage protection
Multi-range (110 V / 220 V): no
Compatible with Haswell: yes
