Beskrivelse

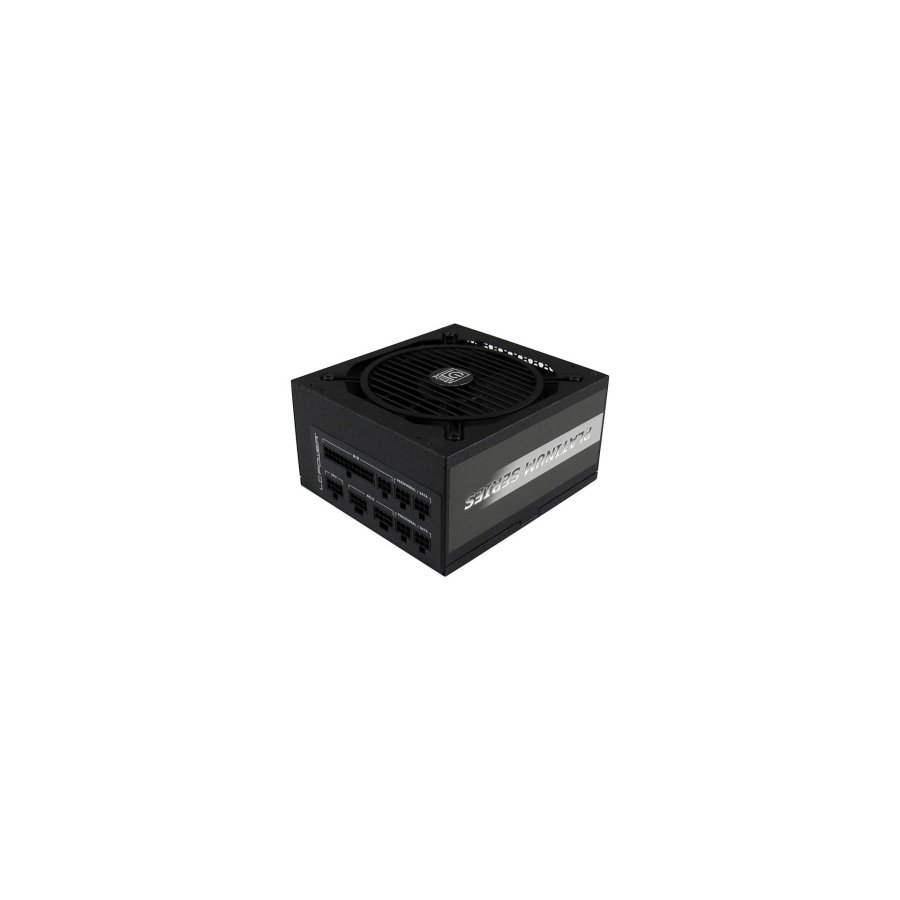

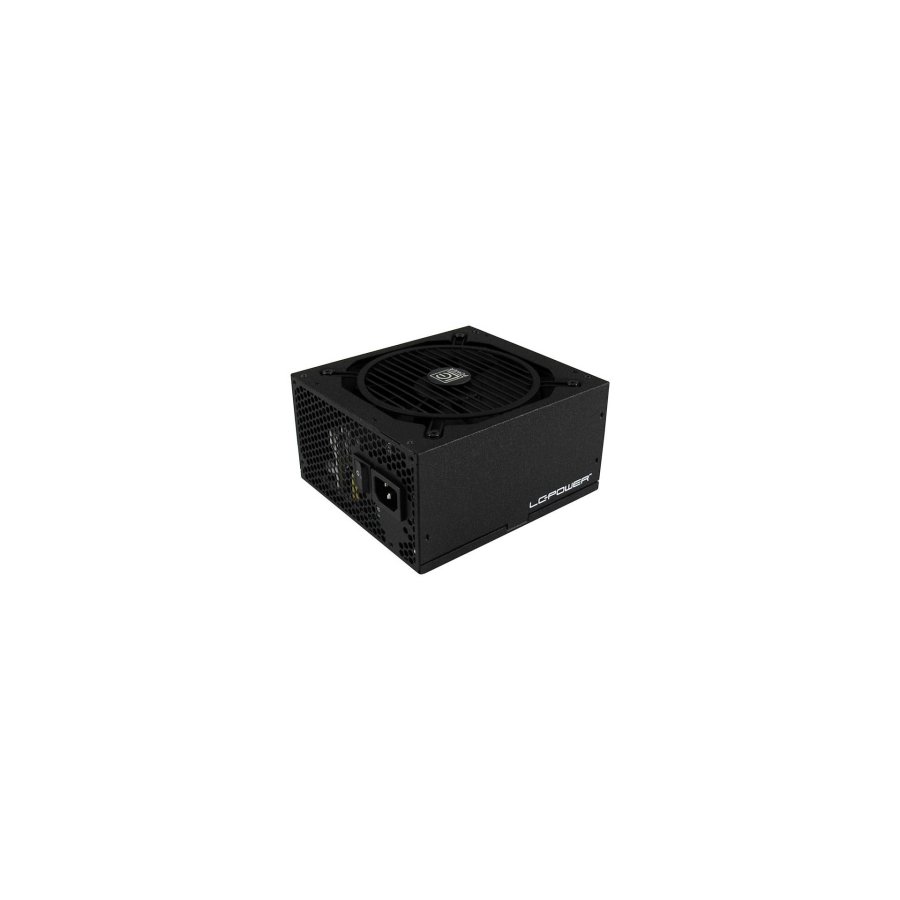

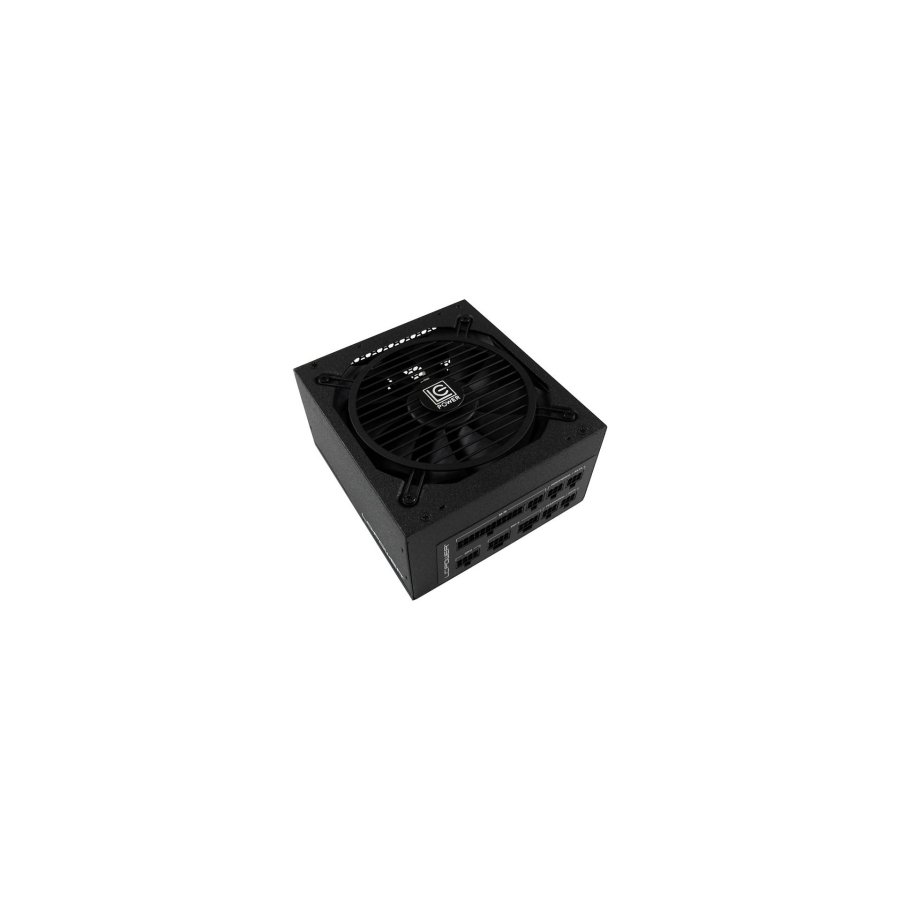

Power supply LC550 V2.31 - Platinum Series
- 550W
- Full range
- Free-Plug - full modular cable management
- DC to DC technology
- 80 PLUS® PLATINUM certified
- Efficiency > 92%
- 135 mm fan
- 4x PCI-Express 6+2 pin
Features:
ATX V2.31 / EPS 12V
Due to ist current ATX V2.31 standard, the power supply works perfectly in modern as well as in older computer systems.
Free-Plug Modular Cable Management
Featuring the free-plug technology, the power supply offers a progressive modular cable management to improve the airflow inside the computer case.
Dual/QuadCore Support
The power supply supports all modern DualCore, QuadCore and server systems.
PCI-Express x4
Includes four PCI-Express V2.0 6+2 pin connectors for high end gaming.
+12V Single Rail
The LC550 V2.31 features a single +12V rail with 45A. Even the most demanding hardware can be run at stable performance.
High Efficiency / 80 PLUS PLATINUM certified
Modern technology decreases the standby mode power consumption (<0,5W) and increases the effiiency of the power supply > 92 %.
Active PFC
Use active power factor correction (>0.99) to provide additiional security to your system.
Advanced Security Circuitry
Over-Voltage Protection (OVP), Over-Current Protection (OCP), Over-Power Protection (OPP), Short-Circuit Protection (SCP), Under-Voltage Protection (UVP)
Automatic Voltage Detection
The power supply Features an automatic voltage detection (110V-264V) so that it is usable indifferent infrastructural Environments (e.g. Europe, USA).

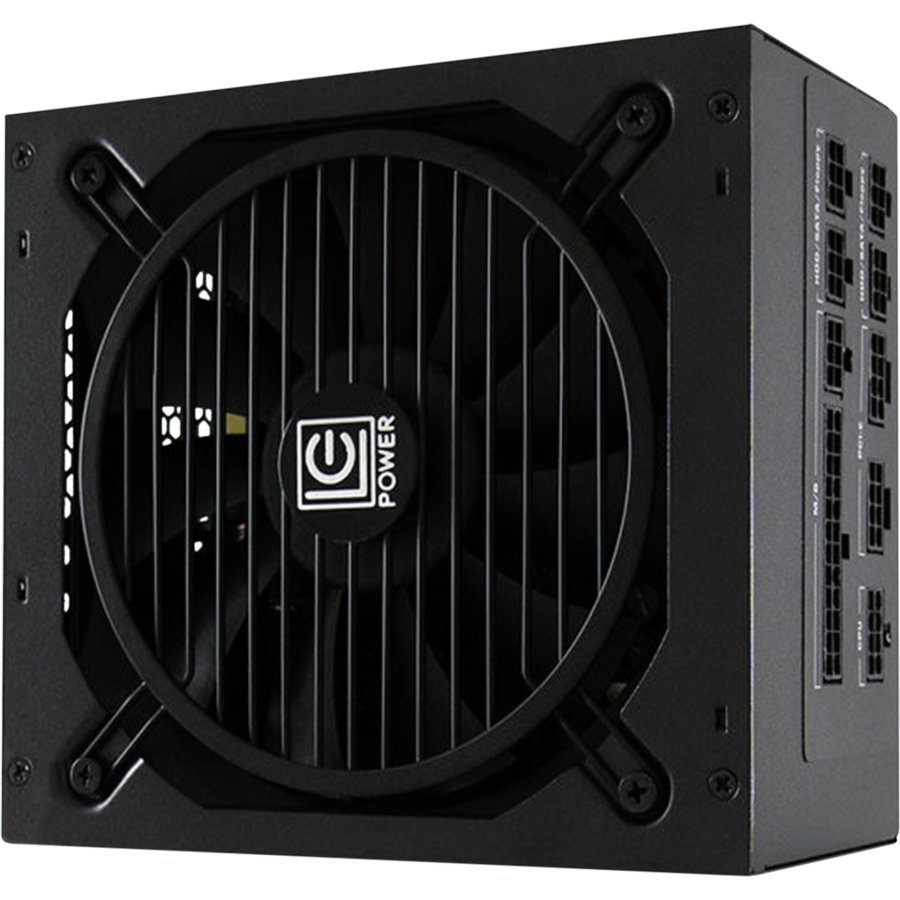

135 mm Fan
Enjoy ultra silent work thanks to the high Quality 135 mm fan.

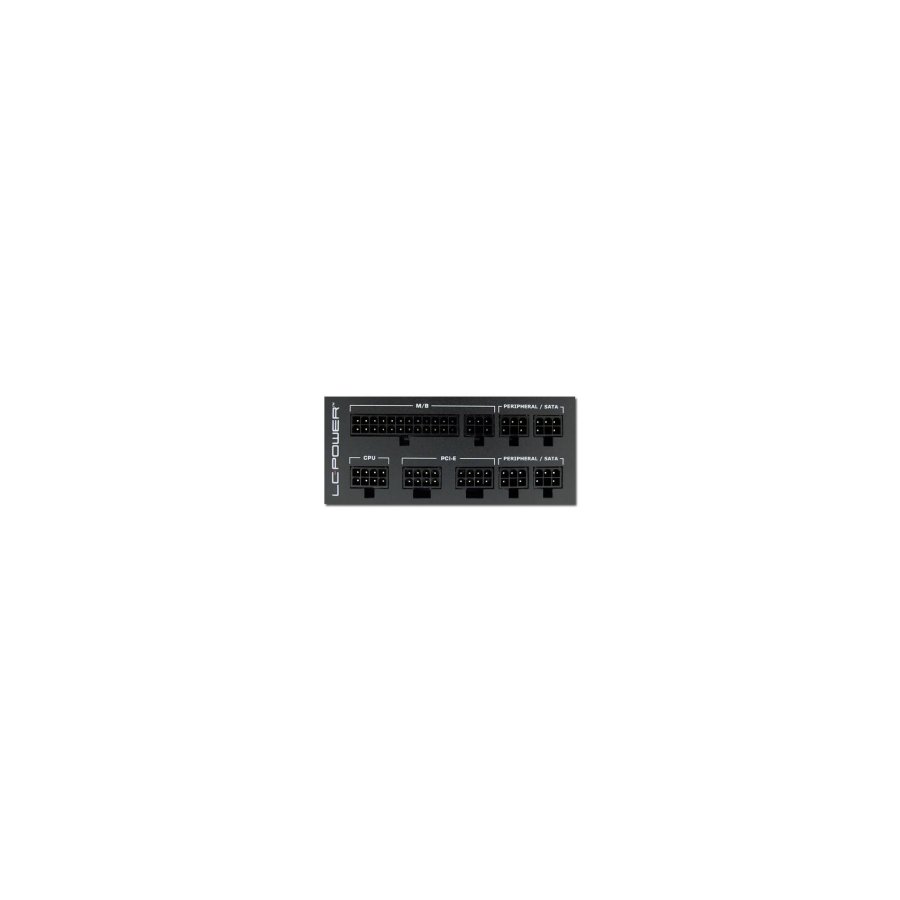

Connectors:
- 1x 24-Pin mainboard: 1x 55 cm
- 1x 4+4 Pin mainboard 12V (8-Pin EPS): 1x 55 cm
- 4x PCI-Express V2.0 6+2-Pin: 2x 45 / 2x 60 cm)
- 6x SATA: 2x 35 / 1x 55 / 1x 70 / 1x 85 / 1x 100 cm
- 6x PATA: 2x 50 / 2x 65 / 2x 80 cm
- 1x FDD: 1x 95 cm
