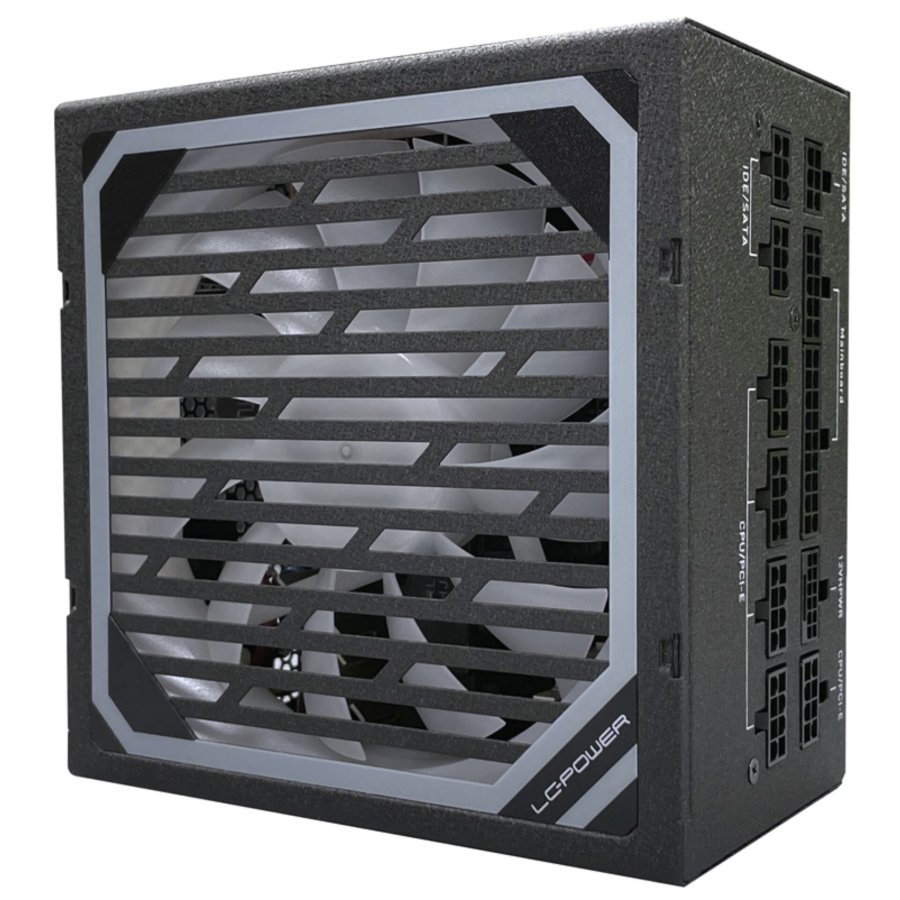

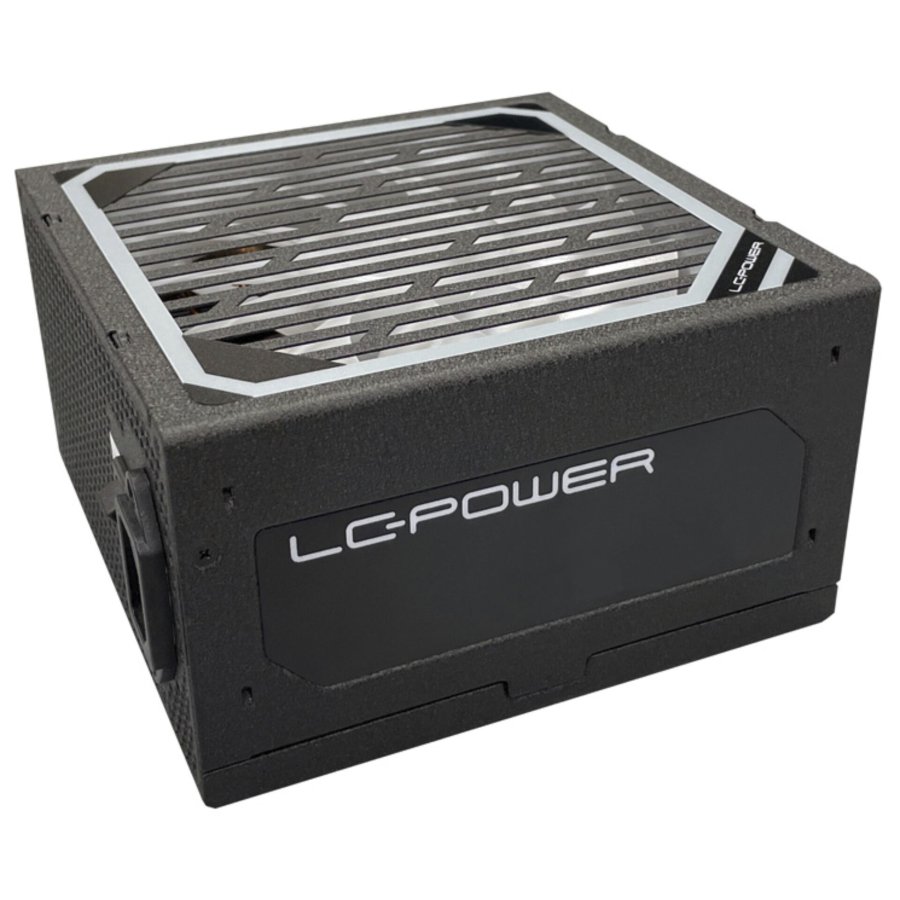

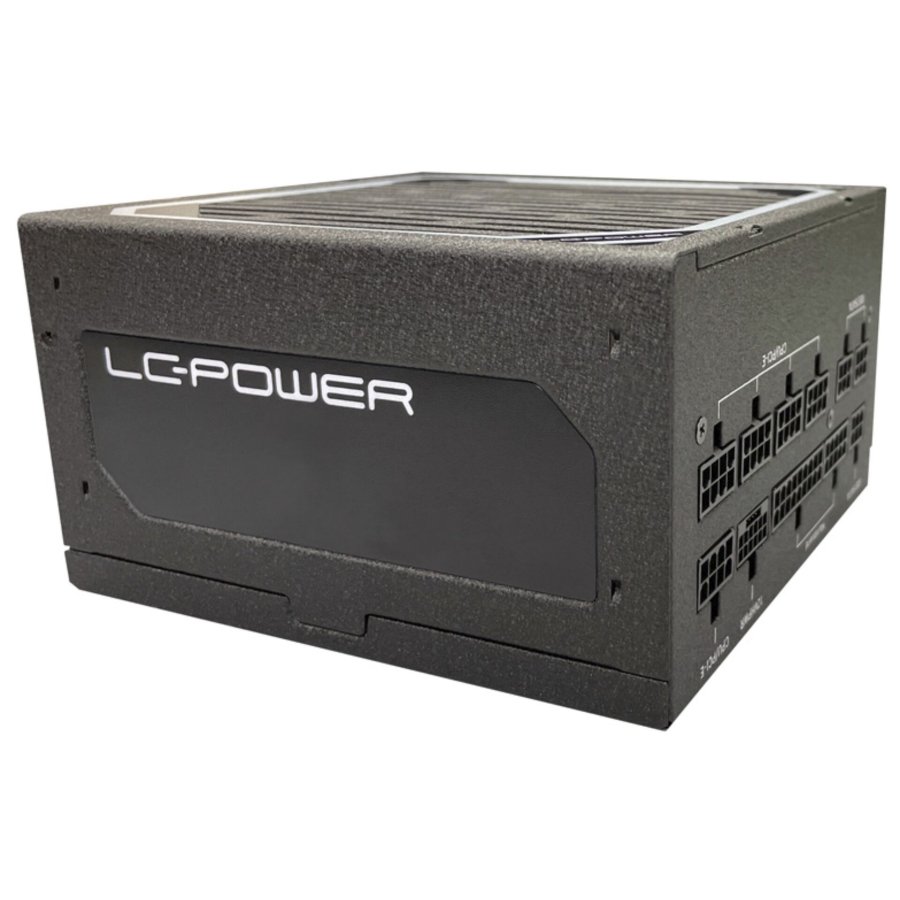

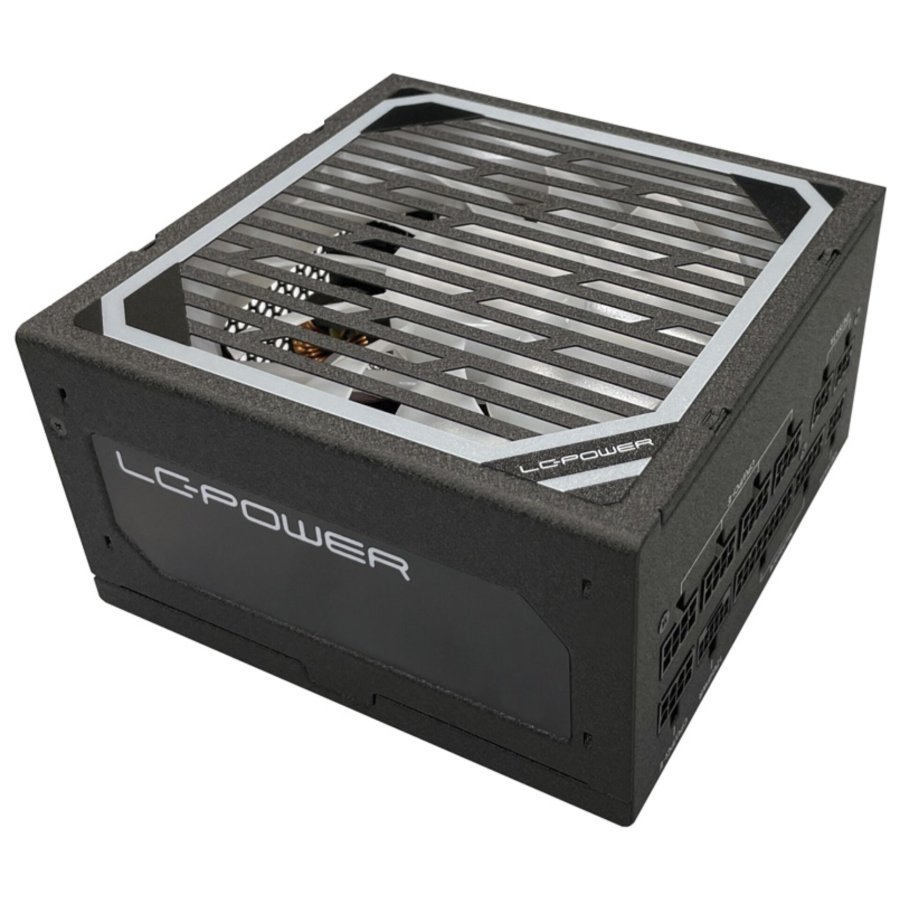

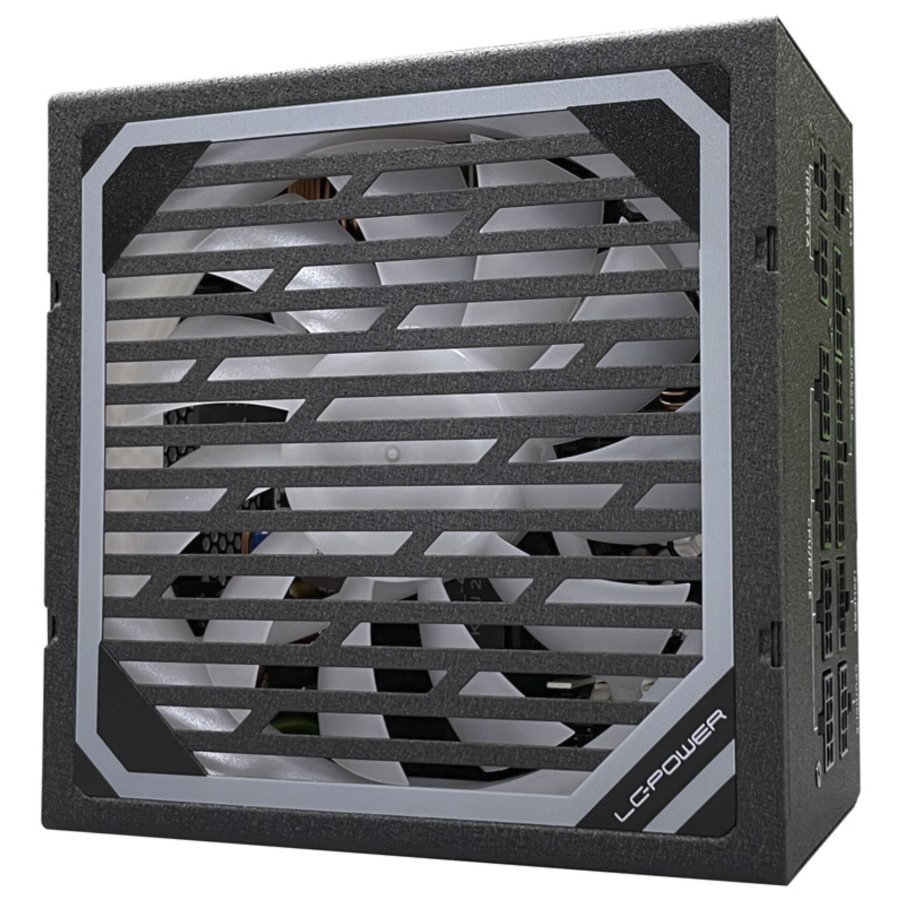

LC Power LC6750M V3.0 ATX Power Supply 750 Watt
The LC6750M V3.0 is an 80 PLUS GOLD certified, fully modular ATX power supply that ensures high performance and stability in your system.
Features:
- ATX form factor
- 750 W

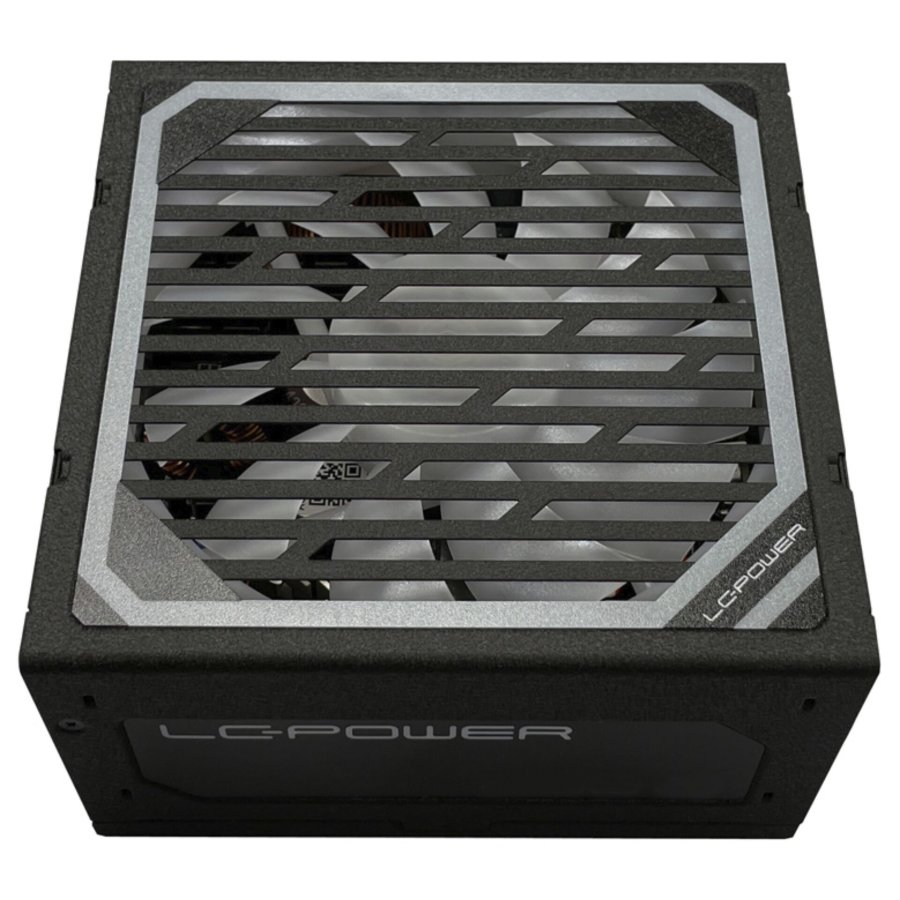

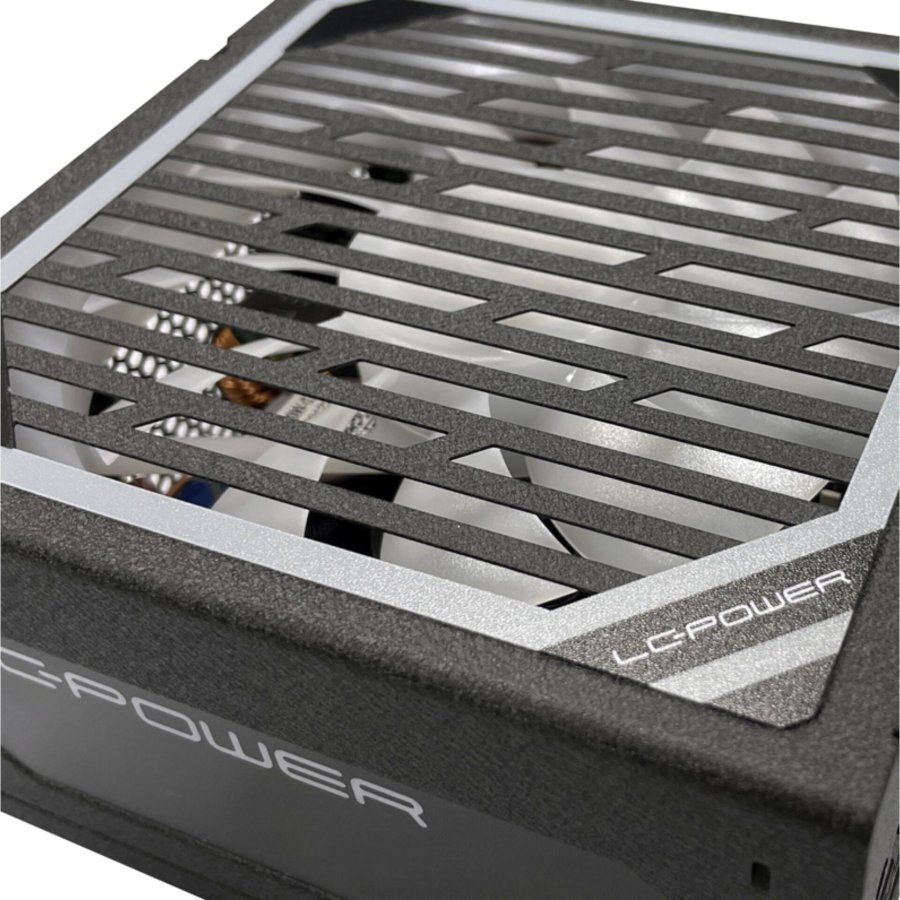

- 135 mm fan
- Fully modular cable management
- Black sleeved cables
- 80 PLUS GOLD certified
- High efficiency of up to 90
- Full range: 100 - 240 V
- DC-to-DC technology
- Powerful +12 V cable (62.4 A)
- 4x PCI Express 6+2-pin
- 1x PCI-Express 5.0 12+4-pin
Technical data:
- Power supply series: Super Silent Modular
- ATX standard: ATX V3.0

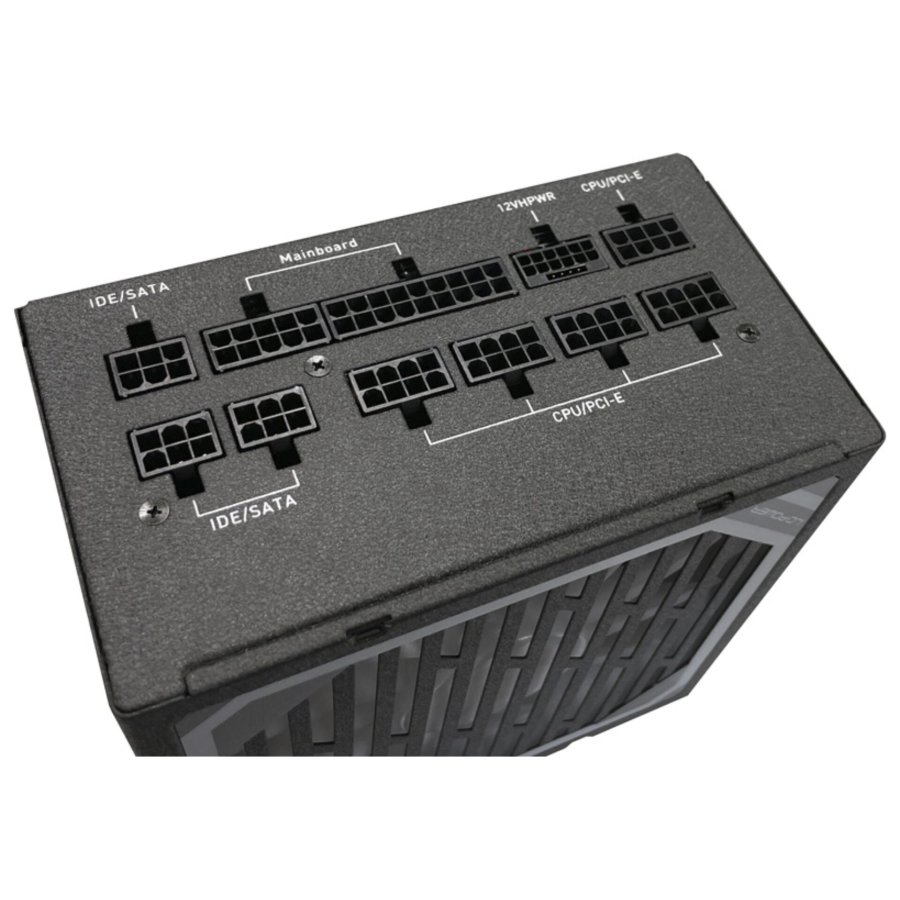

- Connections:
- 20+4-pin motherboard: 1x 650 mm
- 4+4-pin motherboard 12 V (8-pin EPS): 2x 650 mm
- 4-pin motherboard 12 V: 1x 800 mm

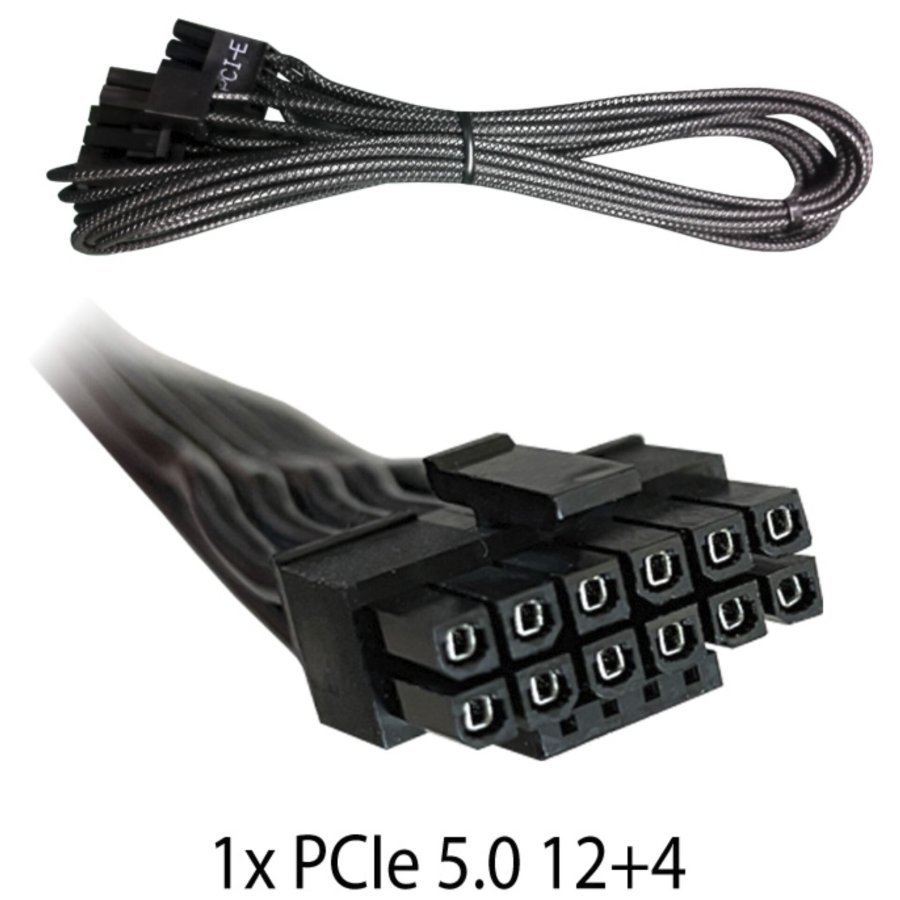

- PCI-Express 5.0 12+4-pin: 1x 600 mm
- PCI-Express 6+2-Pin: 4x total (2x 675 mm / 2x 750 mm)
- SATA: 10x total (3x 500 mm / 3x 650 mm / 2x 800 mm / 2x 950 mm)
- PATA: 5x total (1x 350 mm / 2x 500 mm/ 1x 650 mm / 1x 800 mm)
- Connectivity options SATA & PATA:
- 10x SATA & 0x PATA
- 8x SATA & 3x PATA
- 4x SATA & 5x PATA
- Fan: 135 mm
- PFC: active
- Dimensions power supply: 86 x 150 x 151 mm
- Dimensions Packaging: 115 x 275 x 200 mm
- Weight: about 2.52
- Power output: 750.0 W
- +3.3 V: 20.0 A
- +5.0 V: 20.0 A
- Max combined: 100.0 W
- +12.0 V: 62.4 A
- Max combined: 748.8 W
- 80 PLUS GOLD
- Efficiency: up to 90%
- Temperature-dependent control for case fans
- Safety circuits:
- OVP (surge protection)
- OCP (overcurrent protection)
- OPP (over-performance protection)
- SCP (short circuit protection)
- EIA (undervoltage protection)
- Full range (100.0 V / 220.0 V)
- Colour: black
