Beskrivelse
be quiet! PURE BASE 501 DX White PC-Case ATX-Midi-Tower
Pure Base 501 DX is an impressively lit be quiet! ATX case with compact dimensions and high airflow for any application. The Pure Base 501 DX Black has ARGB LEDs on the front and inside of the case. This PC case strikes the perfect balance between ARGB lighting and the sleek understatement for which the Pure Base 501 series is known. The front has been designed in such a way that the lighting is optimally displayed. Despite its compact dimensions, the Pure Base 501 DX Black offers enough space for high-end graphics cards and large coolers. The front offers space for up to 3 fans or a 360mm radiator, while the lid also offers space for 2 fans or a 240mm radiator.
Features:
- Airflow front panel and top cover for maximum performance

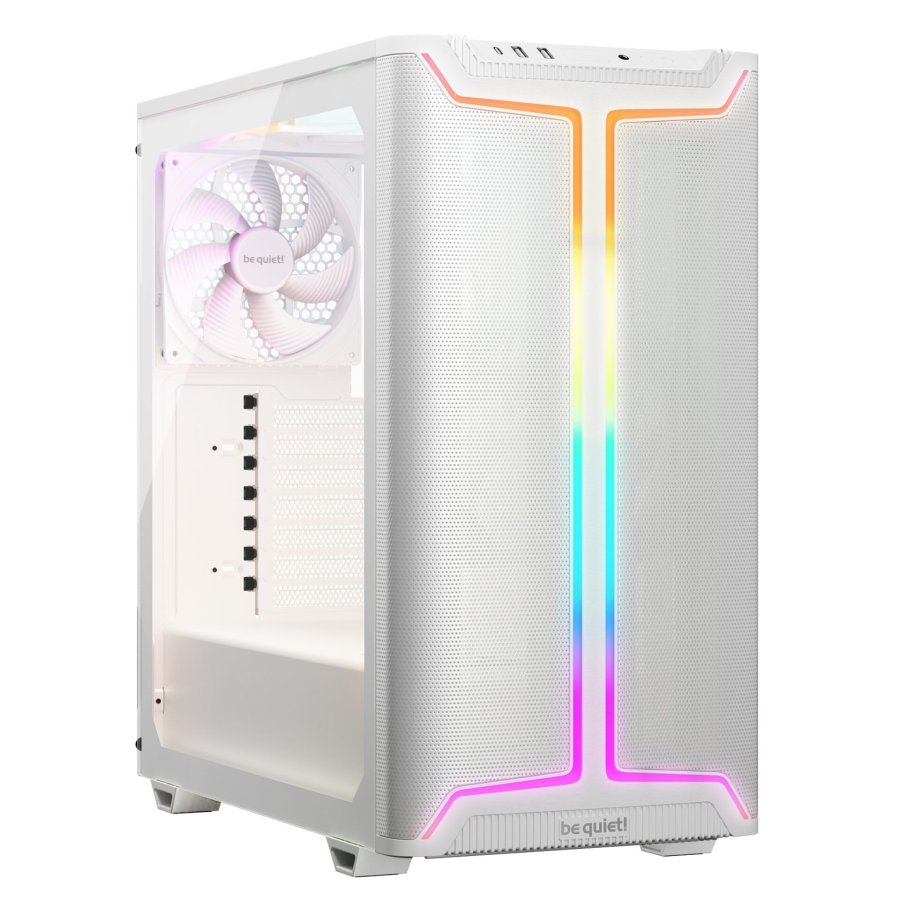

- Dynamic front design with elegant ARGB lighting inside and outside the case
- 3 pre-installed Pure Wings 3, 140mm PWM fans for exceptionally high airflow

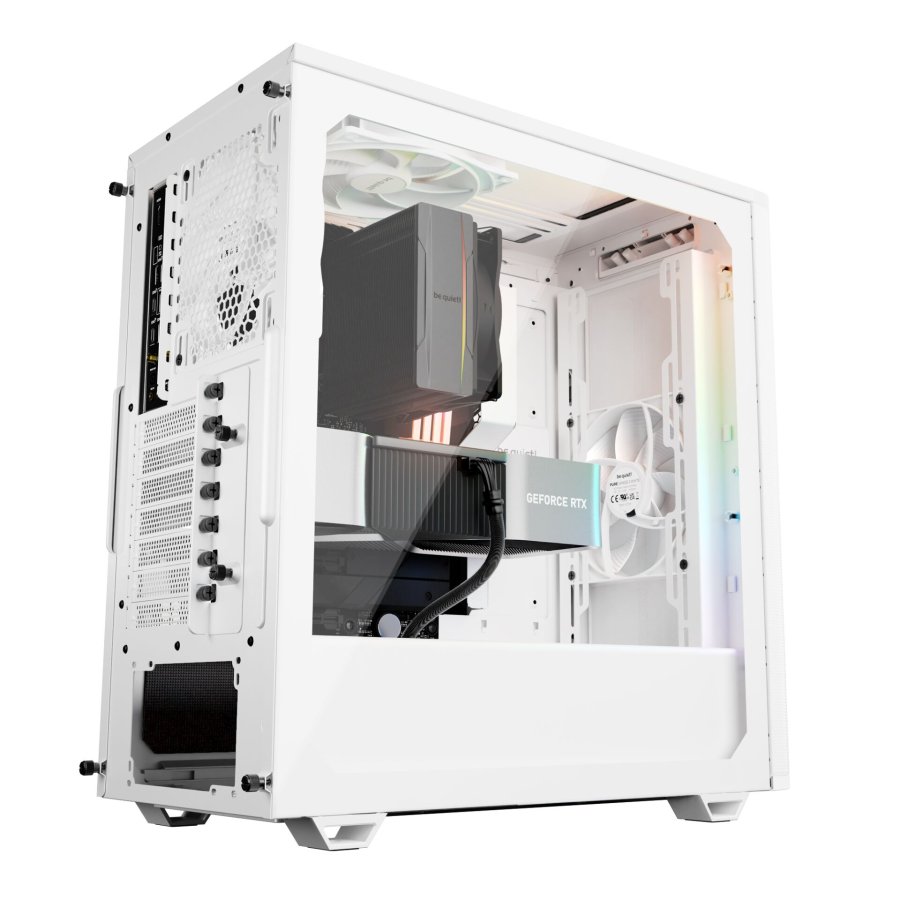

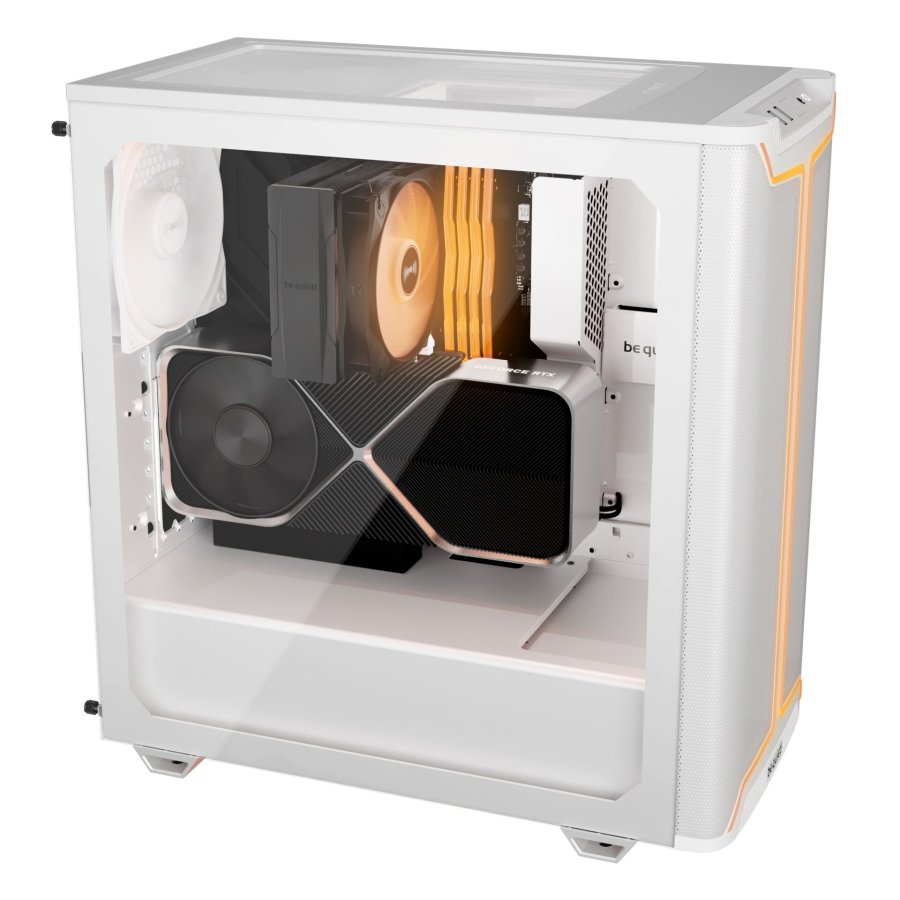

- Spacious design for high-end graphics cards and large coolers despite compact dimensions
- Vertical installation of graphics cards possible
- Ready for water cooling with radiators up to 360mm
- USB 3.2 Gen 2 Type C: (10 Gbit/s)
- Conveniently placed channels for clever cable routing
- Integrated cable routing for easy cable management
- Optimal view of components through glazed side window with blackened side frame
Technical data:
- I/O panel connections: 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5 mm audio combo jack (mic + audio)
- Mainboard compatibility: ATX / M-ATX / Mini-ATX

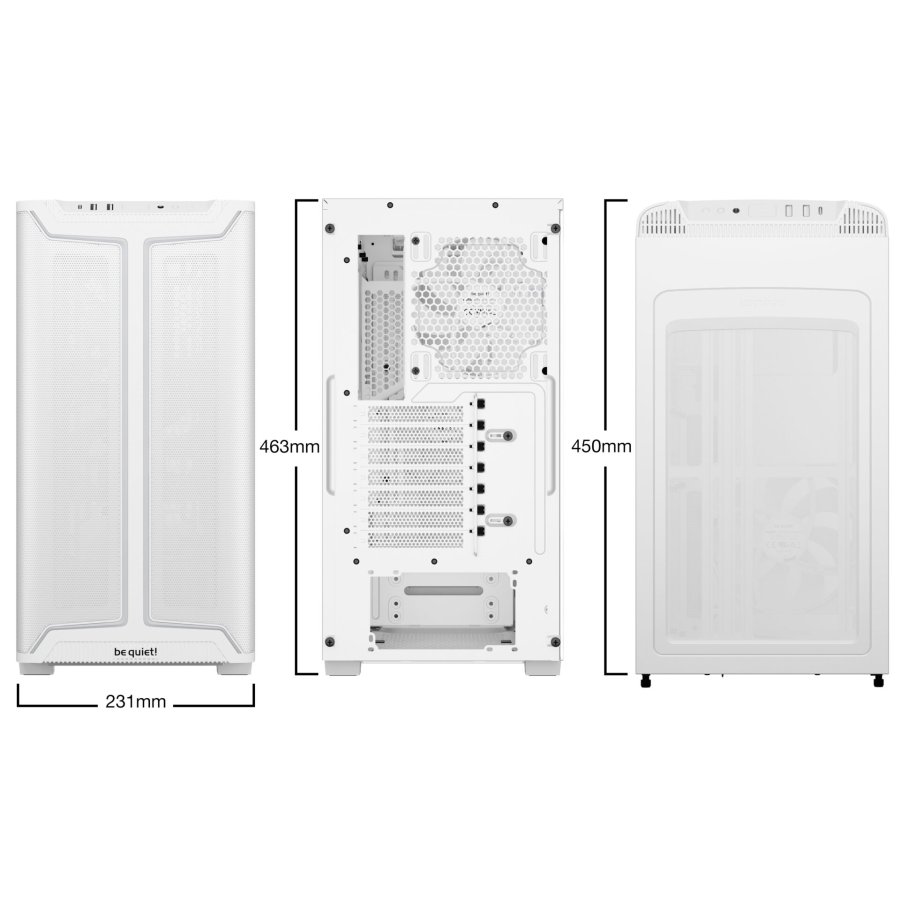

- Case dimensions excluding feet (L x W x H): 450 x 231 x 449 mm
- Case dimensions including feet (L x W x H): 450 x 231 x 463 mm
- Volume: 39.2 l
- Form factor: PSU ATX PS/2
- PCI slots: 7
- Maximum PCI slots with vertical graphics card: 5
- Installed fans: 1x cover 140 mm Pure Wings 3 PWM, 1x front side 140 mm Pure Wings 3 PWM and 1x back side 140 mm Pure Wings 3 PWM
- Technical data of the installed fans:
- Fan dimensions: 140 x 25 x 140 mm
- Speed at 100% PWM / 12V: 1200 rpm/min
- Flow rate at 100%: 57.4 / 97.5 CFM / m3/h
- Air pressure at 100% PWM / 12V: 0.96 mm H2O
- Volume at 100% PWM / 12V: 21.9 dB(A)
- Voltage range: 5 - 13.2 V DC
- Power consumption: 3.6 W
- Rated current: 0.06 A
- Connector: 4-pin PWM
- Life expectancy at 25 °C: about 80000 hours
- Maximum possible fan installation (optional): 6 (lid 2x 140 mm or 2x 120 mm, front: 2x 140 mm or 3x 120 mm, back: 1x140 mm or 1x 120 mm
- Maximum possible radiators (optional): 3 (lid: 1x 120 / 240 mm, front: 1x 360 / 280 / 240 / 140 / 120 mm, back: 1x 140 / 120 mm
- Compatible power supply (optional):
- Maximum dimensions excluding fan on case back: 200 mm
- Maximum dimensions including fan on case back: 180 mm
- Compatible graphics card (optional):
- With HDD cage (at graphics card height): 368 mm
- Without HDD cage (at the height of the graphics card): 368 mm
- Maximum PCI slots with vertical graphics card: 5
- Possible drives max (optional):
- 2x 3.5 installation places
- 5x 2.5 installation places
- CPU cooler: max height: 178 mm
- Side panel noise-insulated
- Decoupled HDD cages
- Decoupled power supply (power supply not included, optional)
- Removable dust filter: 1x cover, front and bottom
- Dimensions (LxWxH):
- Colour: white
- Weight: 7.8 kg
