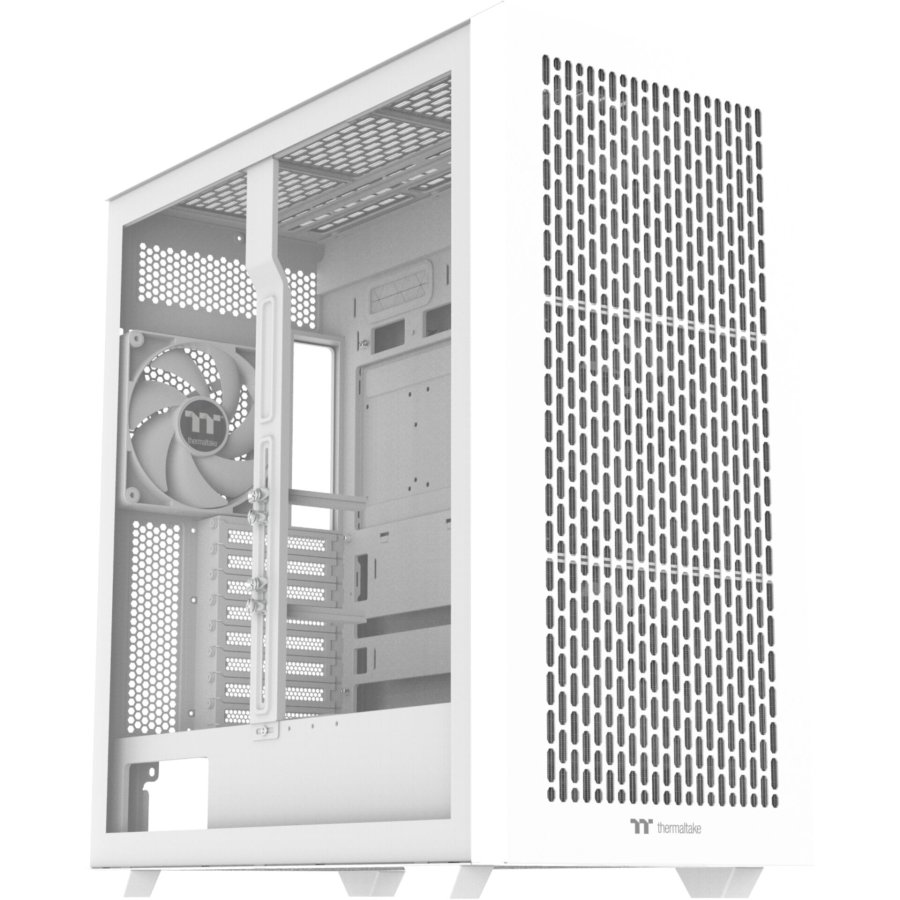

Thermaltake AX500 Snow White Full Tower PC Case
The AX500 Snow Full-Tower case supports E-ATX/SSI-EEB motherboards, two 420 mm radiators and up to fourteen 120 mm fans for optimal airflow. It features a graphics card holder to prevent sagging and two drive cages under the power supply cover - ideal for high-performance workstations, gaming setups and AI computing.
Features:
- Full Tower PC case
- Compatible with hidden connector motherboards (ASUS BTF Series / MSI PROJECT ZERO Series / GIGABYTE PROJECT STEALTH Series)
- 420 / 360 mm Radiator support
- 4 pre-installed 140 mm CT140 fans
- Maximum fan support: up to 14x 120 mm or 9x 140 mm
- Built-in GPU holder (for added support that prevents multiple GPUs from sagging)
- Tidy cable management
- Dust filter on the front, top, bottom and sides of the motherboard
- I/O connections: 1x USB-C 3.2 Gen2 (10 Gbit/s) / 2x USB-A 3.0 (5 Gbit/s) / 1x audio combo jack 3.5 mm
- 1x glazed side panel
Technical data:
- Series: AX series
- Type: Full tower
- Installed fans: 4 pieces 140 x 140 x 25 mm CT140 fans (1500 rpm/min, 30.5 dBA)
- Possible drives: 5x 3.5" + 1x 2.5" or 6x 2.5"
- Expansion slots: 8
- Possible motherboards: Mini ITX, Micro ATX, ATX, E-ATX, SSI-CEB, SSI-EEB
- Motherboard with hidden ports: 9.6 x 9.6 inches (Micro ATX), 12 x 9.6 inches (ATX)
- Possible power supply: PS2 standard power supply (optional)
- Fan support max.:
- Front: 4x 120 mm or 3x 140 mm
- Top: 3x 120 mm or 3x 140 mm
- Rear: 1x120 mm or 1x 140 mm
- Right: 3x 120 mm or 2x 140 mm
- Power cover: 3x 120 mm
- Radiator support (AIO) max.:
- Front: 1x possible sizes: 420 / 360 / 280 / 240 / 140 / 120 mm
- Top: 1x possible sizes: 420 / 360 / 280 / 240 / 140 / 120 mm
- Rear: 1x possible sizes: 140 / 120 mm
- CPU cooler: up to maximum length 185 mm
- Possible GPU length: max 460 mm
- Power supply length: up to 200 mm
- Dimensions (H x W x D): 650 x 248 x 548 mm
- Material: steel / glass
- Colour: white
