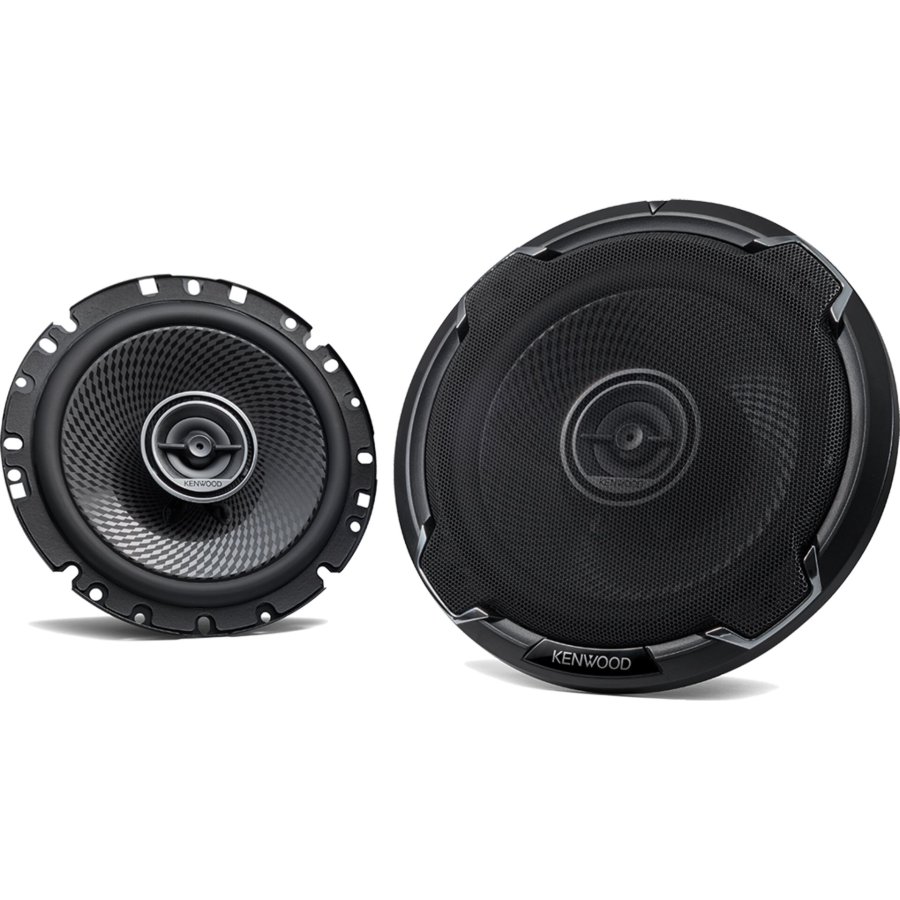

170 mm 2-way ‘Performance Standard’ speakers
The speakers in the ‘Performance Standard’ series combine first-class sound characteristics with high-quality workmanship and modern material properties. The tweeter enables a particularly differentiated sound and thus ensures a precise sense of space when playing music in the vehicle.
Features:
- 17cm, 2-way / 2-speaker system
- Polypropylene woofer cone with diamond pattern
- Metal speaker basket with rubber protectors
- 30 mm dome tweeter
- 330W peak power handling
- Accoustic Sound Harmoniser
- Sound Field Enhancer
- 50 cm speaker connection cable included in the scope of delivery
- Speaker cover included
Speaker features:
- Loudspeaker system: Two-way loudspeaker
- Peak power handling: 330 W
- Rated power handling: 100 W
- Speaker size: 170 mm
- Loudspeaker: customised diamond pattern
- Magnet type:Ferrite
- Connections:Plug-in connections
- Installation principle:Door/rear installation
Technical data loudspeaker / woofer:
- Cone cone material: Polypropylene (PP) cone
- Speaker basket: Steel
- Speaker surround: Rubber
- Sensitivity: 88dB/W/m
- Frequency response: 70 Hz ~ 24000 Hz
- Speaker impedance: 4Ω
- Dimensions incl. cover: 179 x 179 x 66.4 mm
- Dimensions without cover: 165 x 165 x 54 mm
- Installation depth: 48 mm
- Diameter of the mounting hole Ø: 139.6 mm
- Protrusion of the tweeter: 6 mm
- Weight of the speaker with cover (piece): 813 gr
- Weight of the speaker without cover (piece): 733 gr
- Gross weight: 1600 gr
- Magnet weight: 270 gr
Technical data tweeter:
- Cone dimensions: 30 mm
- Cone material: Balanced Dome
- Magnet type: Neodymium
