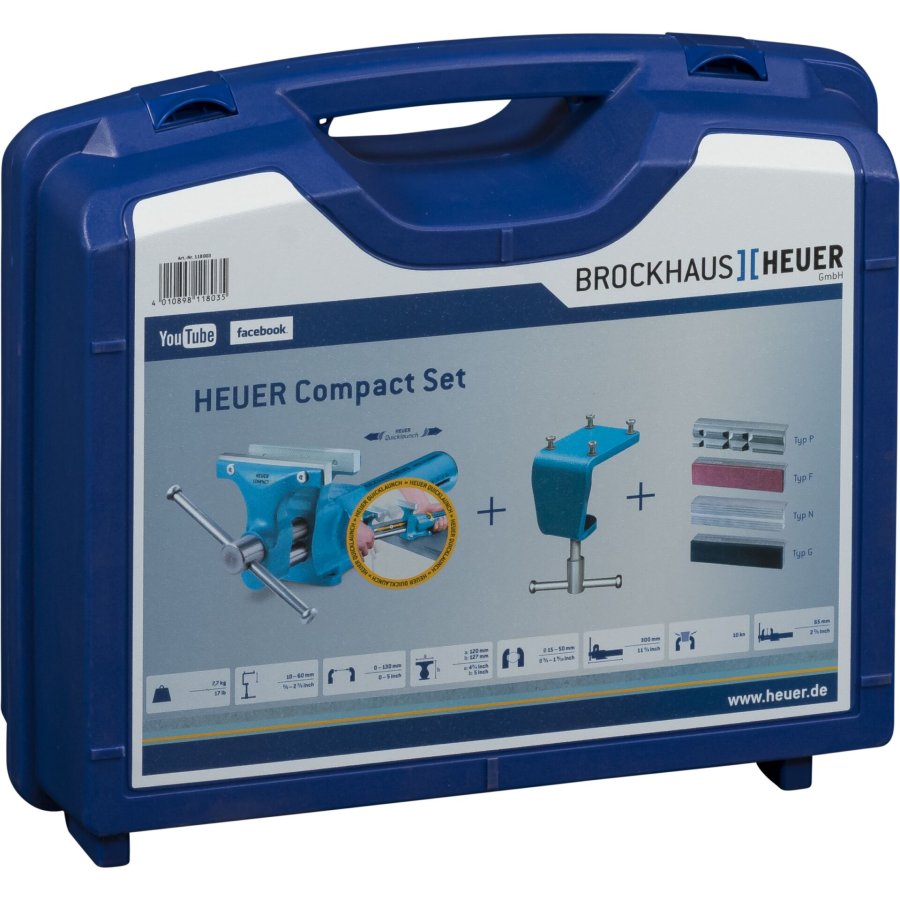

HEUER Compact with table clamp protection jaws type P, N, F case set
The HEUER Compact is a vice with an innovative quick adjustment that allows you to adjust the span in seconds. It also has different jaw types, pipe jaws and optional accessories for more flexibility.
Features:
- Set including table clamp and magnetic jaws type P (prisms), type N (neutral), type F (fiber)
- Type P: With the jaws made of aluminum, which have four prisms and a 90° groove, workpieces of different shapes can be securely clamped
- Type N: The aluminum jaws have a hardness between copper and lead and six grooves, one of which is suitable for clamping narrow parts such as pins or shafts
- Type F: The jaws made of fiber have a special layer structure that makes it possible to clamp smooth and heated workpieces without the fiber coating deforming
- Innovative quick adjustment: from 0 to 125 mm in approx. 3 seconds
- Opening width indicator
- Pressure spring for locking
- Table clamp: Table thickness 10 - 60 mm
- Jaw width: 120 mm
- Span: 125 mm
- Clamping force: 10 kN
- Clamping depth: 65 mm
- Pipe diameter: 15 - 50 mm
- Practical case for safe storage and transport
- Color: blue / silver
- Weight: 4.8 kg
